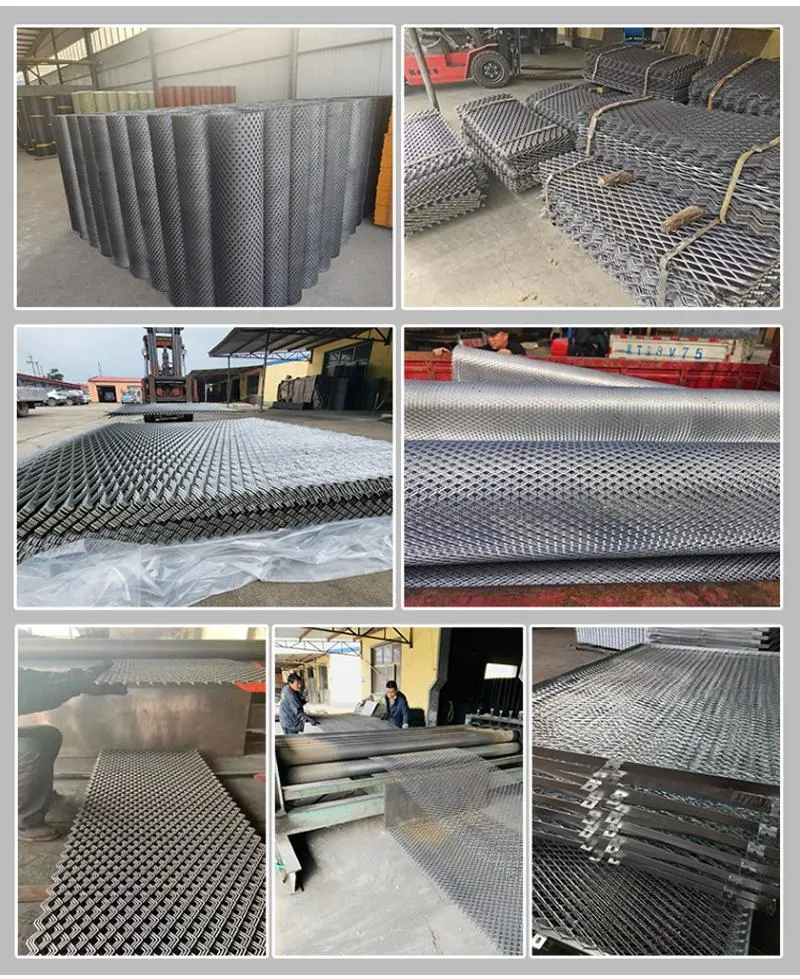

Expanded metal mesh refers to metal sheets processed by special machinery (sheet metal punching and stretching) to form a network status. It is widely used in various metal screen industries and is also known as diamond mesh, iron net, heavy steel plate net, or punching plate.

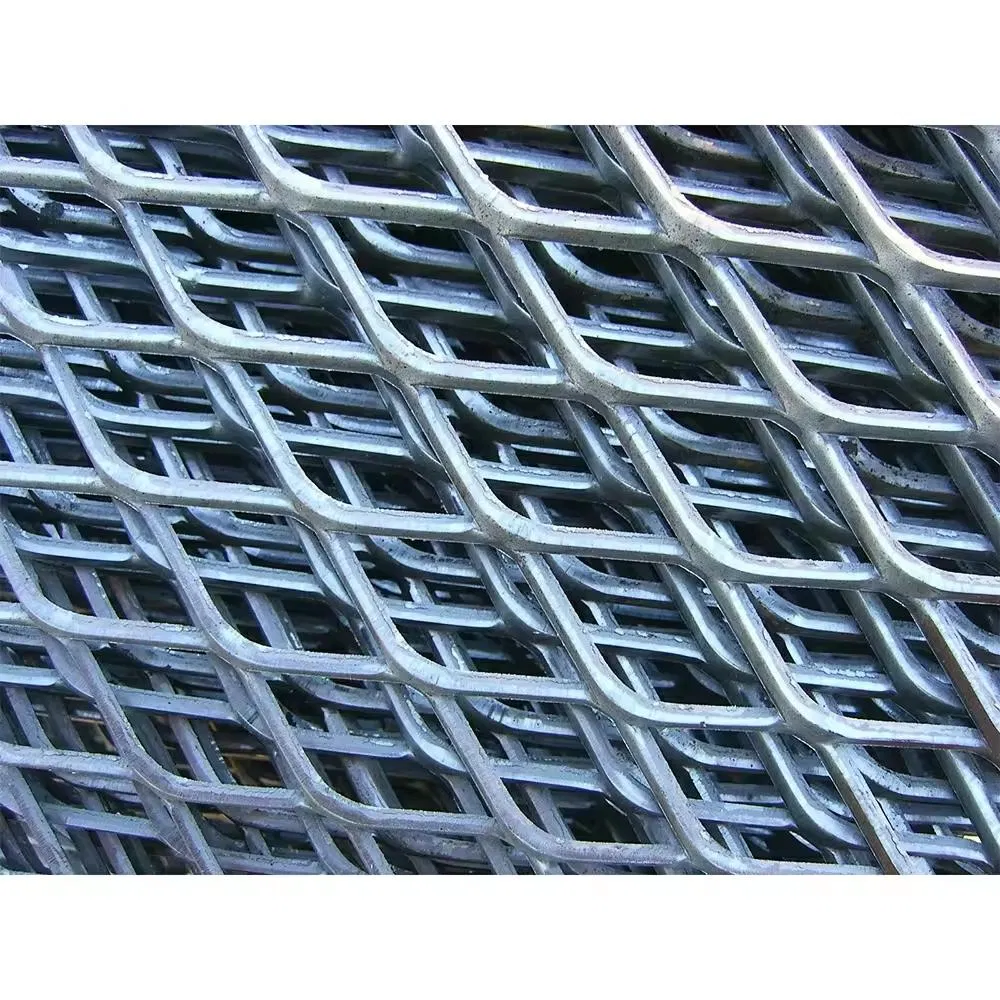

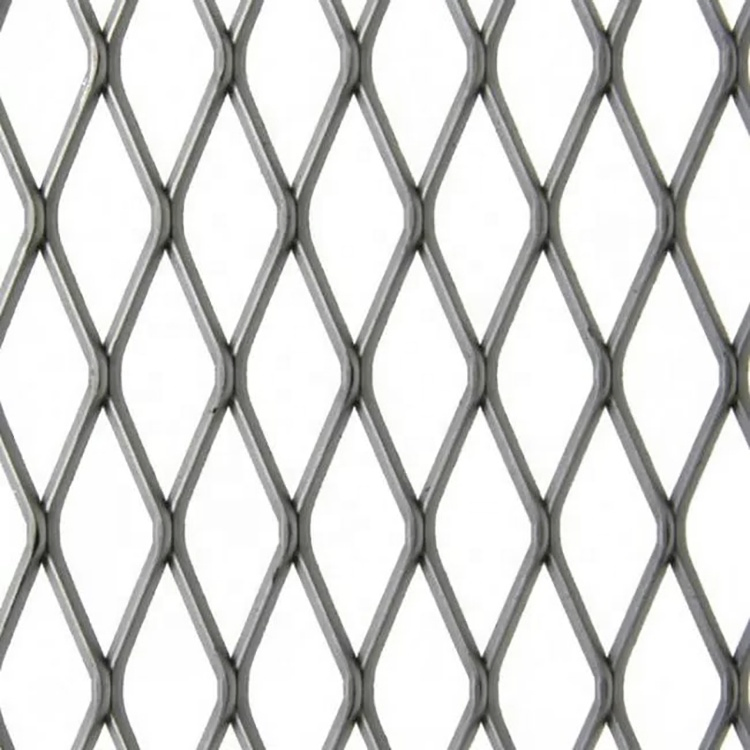

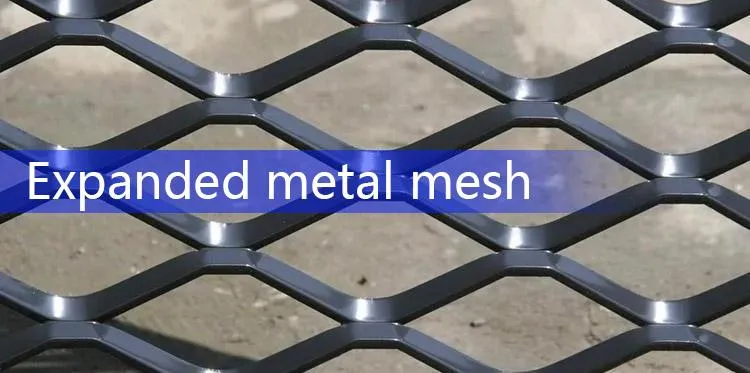

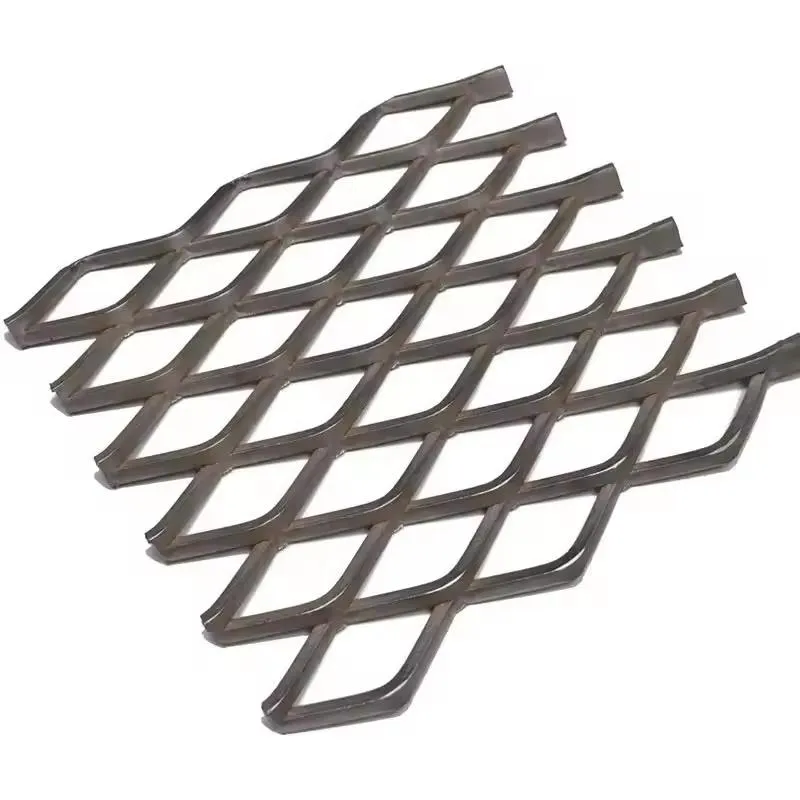

Standard expanded metal features diamond-shaped patterns produced by simultaneously slitting and stretching the material.

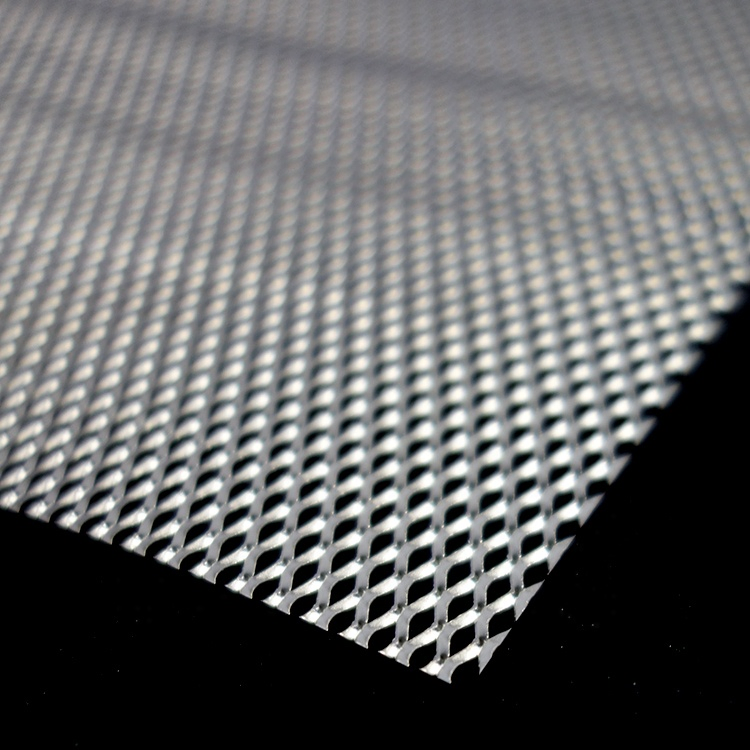

Flattened expanded metal is produced by passing raised expanded metal through a cold-rolled reducing mill, resulting in a flat and smooth surface.
| Expanded Metal Mesh for Construction | ||
|---|---|---|
| Specifications | Diamond Mesh A | Diamond Mesh B |
| Mesh Width | 0.5m~2.4m | 0.5m~2.4m |
| Mesh Length | 0.5m~2.4m | 0.5m~2.4m |
| SWD | 52mm~100mm | 12mm~15mm |
| LWD | 50mm~270mm | 50mm~65mm |
| Sheet Thickness | 2.0mm~5.0mm | 2.0mm~5.0mm |
| Strand | 20mm~30mm | 2.8mm~4.5mm |

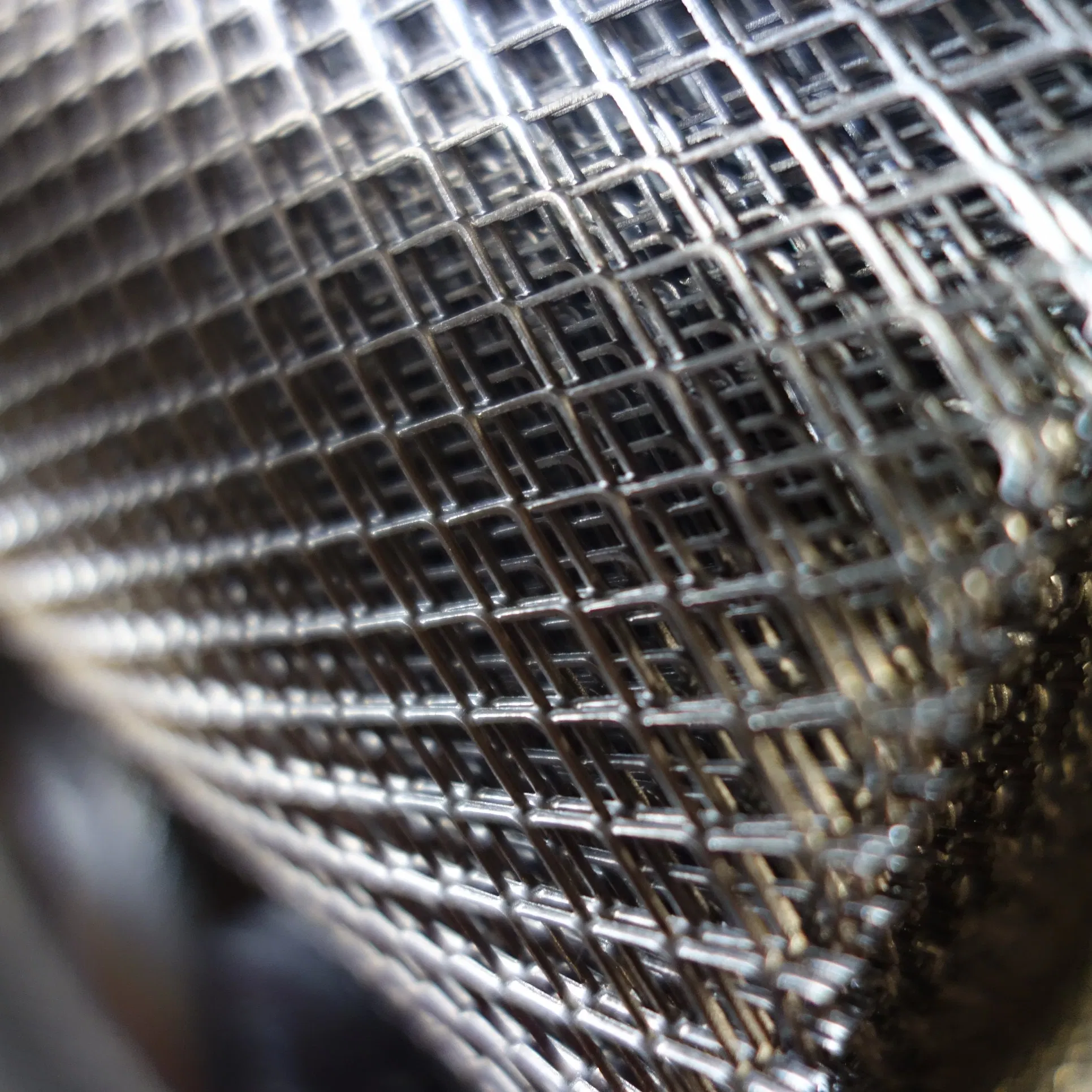

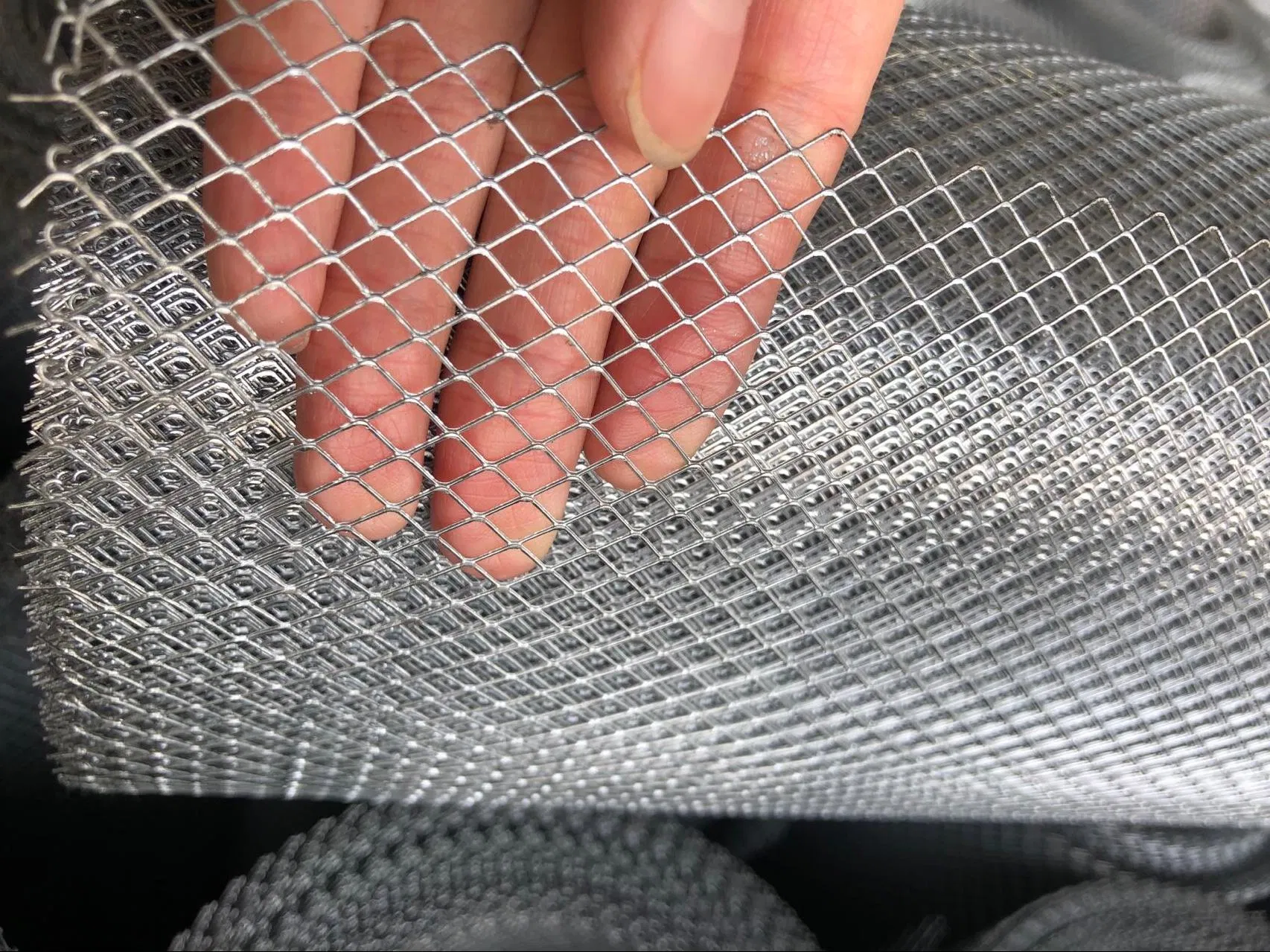

Micro-expanded metal can be manufactured from various metal sheets including carbon steel, aluminum, stainless steel, copper, nickel, and titanium. It is formed through a high-precision expanding process where the base metal is simultaneously slit and cold-formed. This results in a one-piece structure that is durable and economical for filter elements, gutter filters, battery plates, and decorative panels.
| Thickness (mm) | SWD (mm) | LWD (mm) | Wire stems width (mm) | Width (m) | Length (m) | Weight (kg/m²) |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.2 |
