| Stainless Steel Grade: | SS304, 316, 904L, 430, 310s, 2205, etc |
| Aluminum Alloy: | 6061, 5056, 5052 |
| Copper: | Pure Copper, Brass, Bronze |
| Special Materials: | Nickel, Titanium, Silver, Tungsten, Molybdenum, Monel, Inconel, Nichrome, Hastelloy |
| Weave Types: | Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, etc |

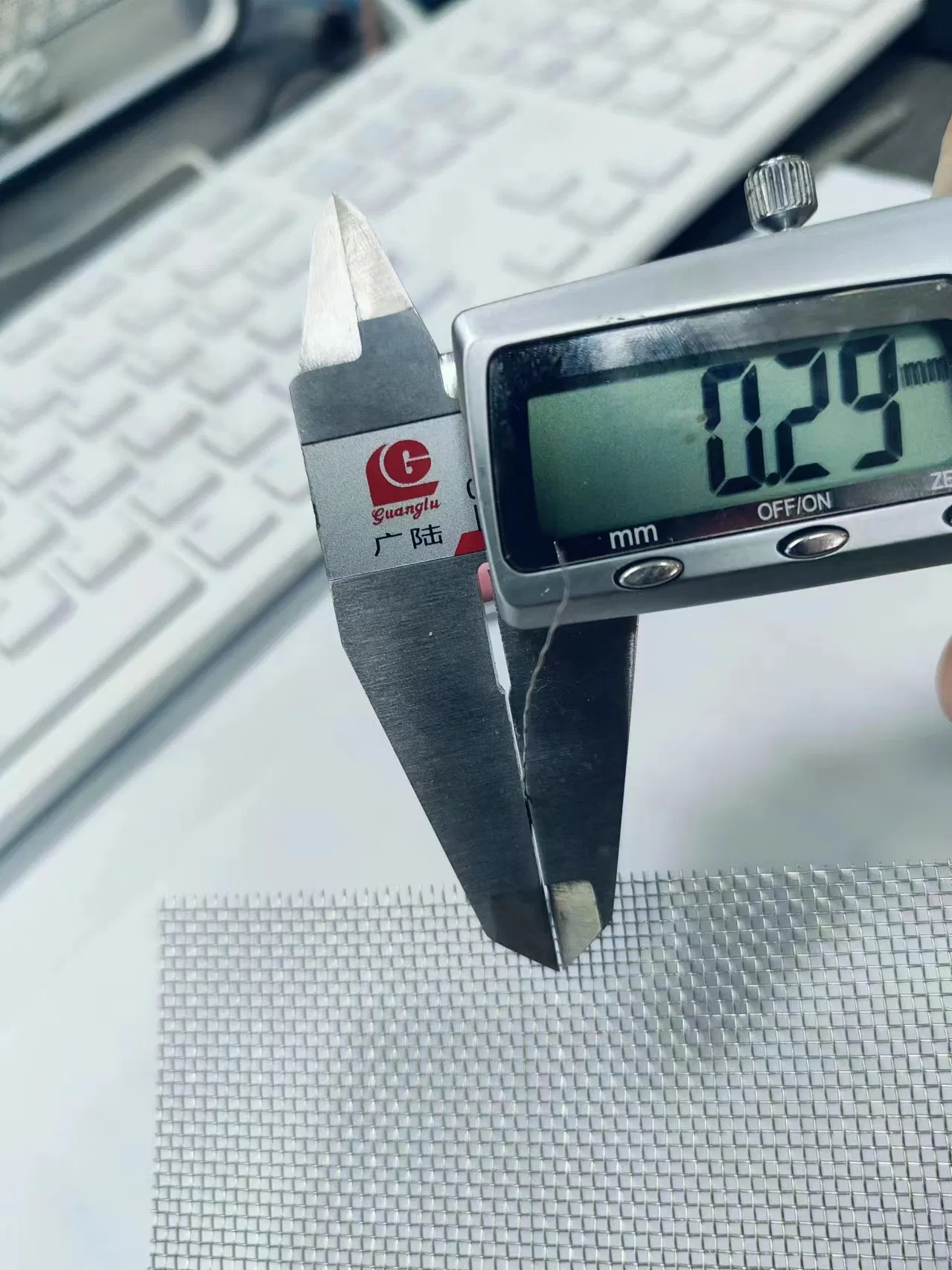

| Wire Diameter Range: | 0.016-0.5mm |
| Width Range: | Maximum 6m, usually the width is 1m |
| Length Range: | Maximum 50m, usually the length is 30m/roll |
| Mesh Type: | Rolls and sheets are available |
| Production Standards: | ASTM E2016 - 20 |

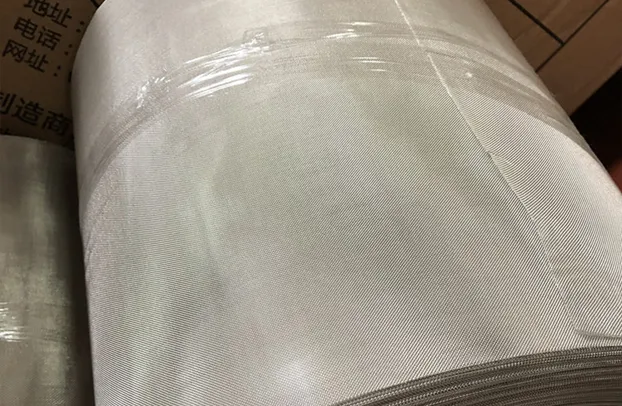

In order to meet the requirements of more specific applications, a variety of high-quality alloy metals have been developed, such as Monel, Inconel, Nichrome, Hastelloy, etc.

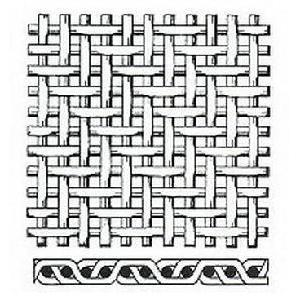

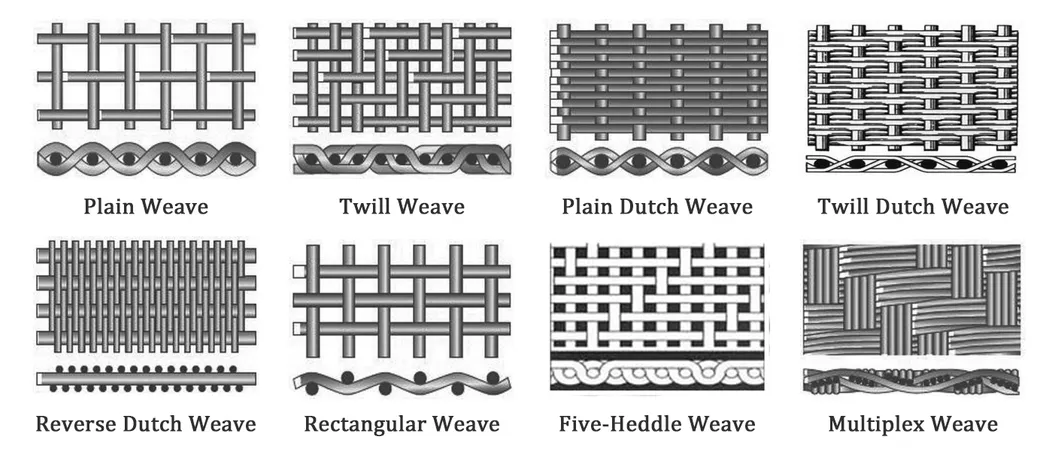

Many different weaves are provided to meet different application needs. The weave styles mainly depend on the mesh and wire diameter specifications of the woven mesh. Below are some common styles.

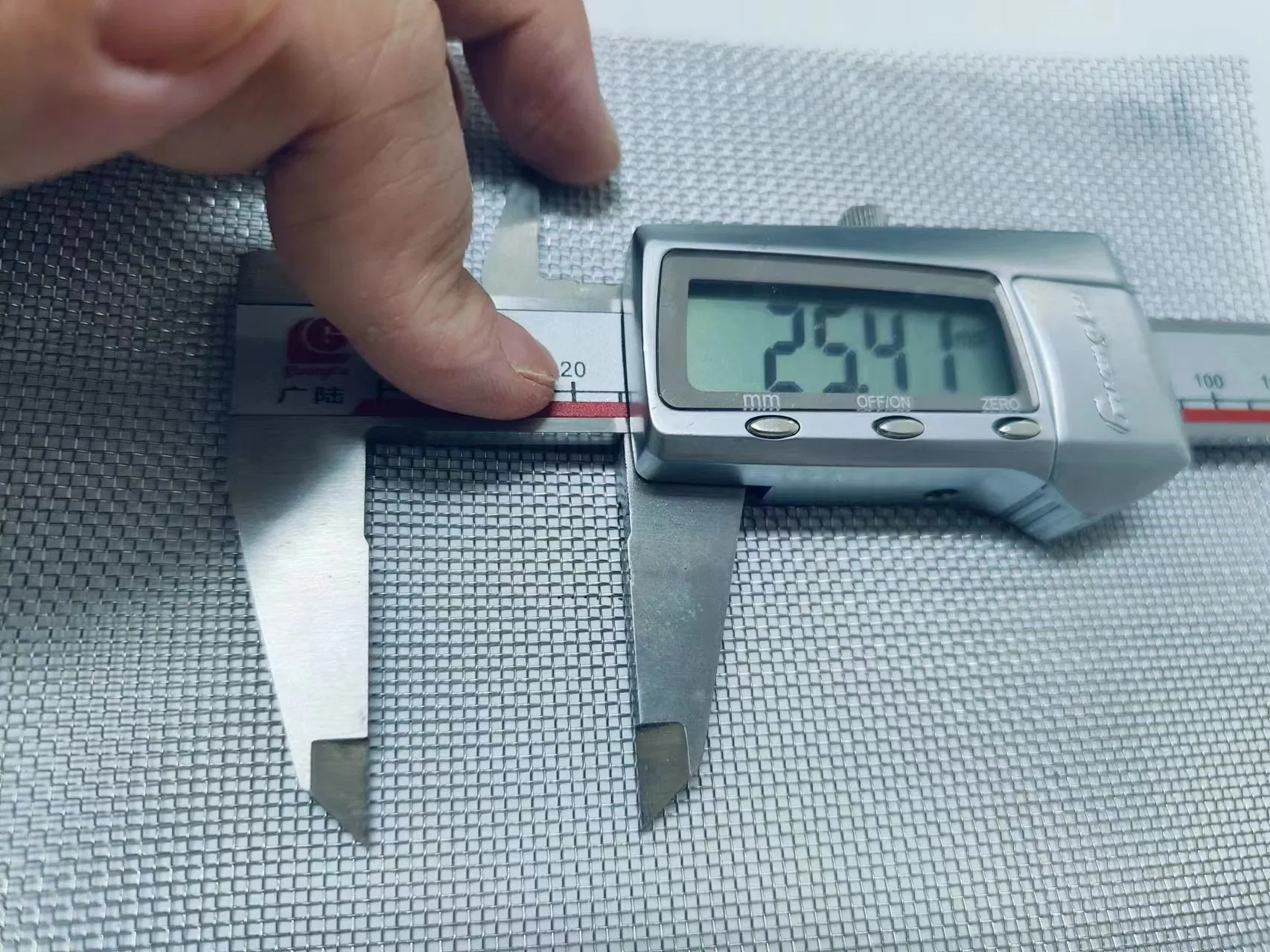

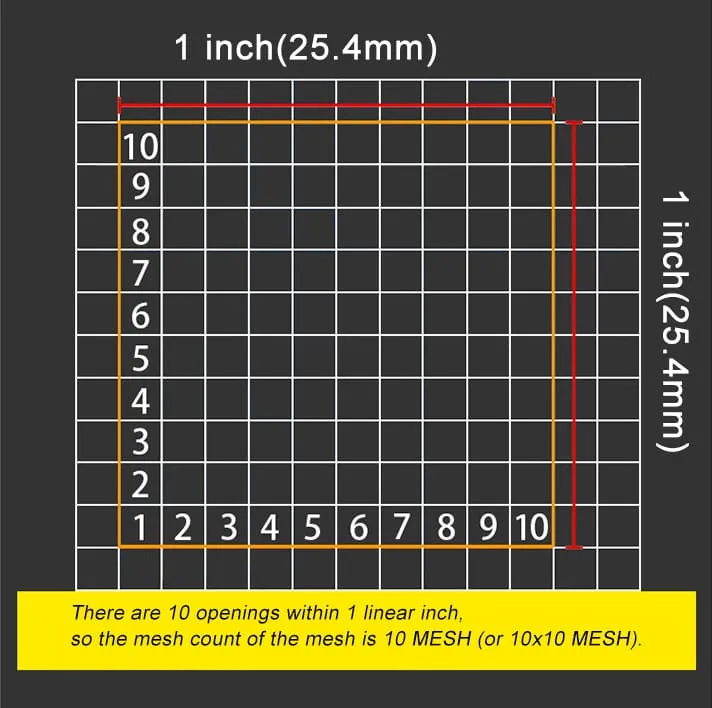

Mesh Count and Micron Size are critical terms in the wire mesh industry. The Mesh count is calculated by the number of holes in an inch of mesh, so the smaller the woven holes the bigger the number of holes.
The Micron Size refers to the size of the holes measured in microns. These two specifications determine the filtering performance and function of the wire mesh.

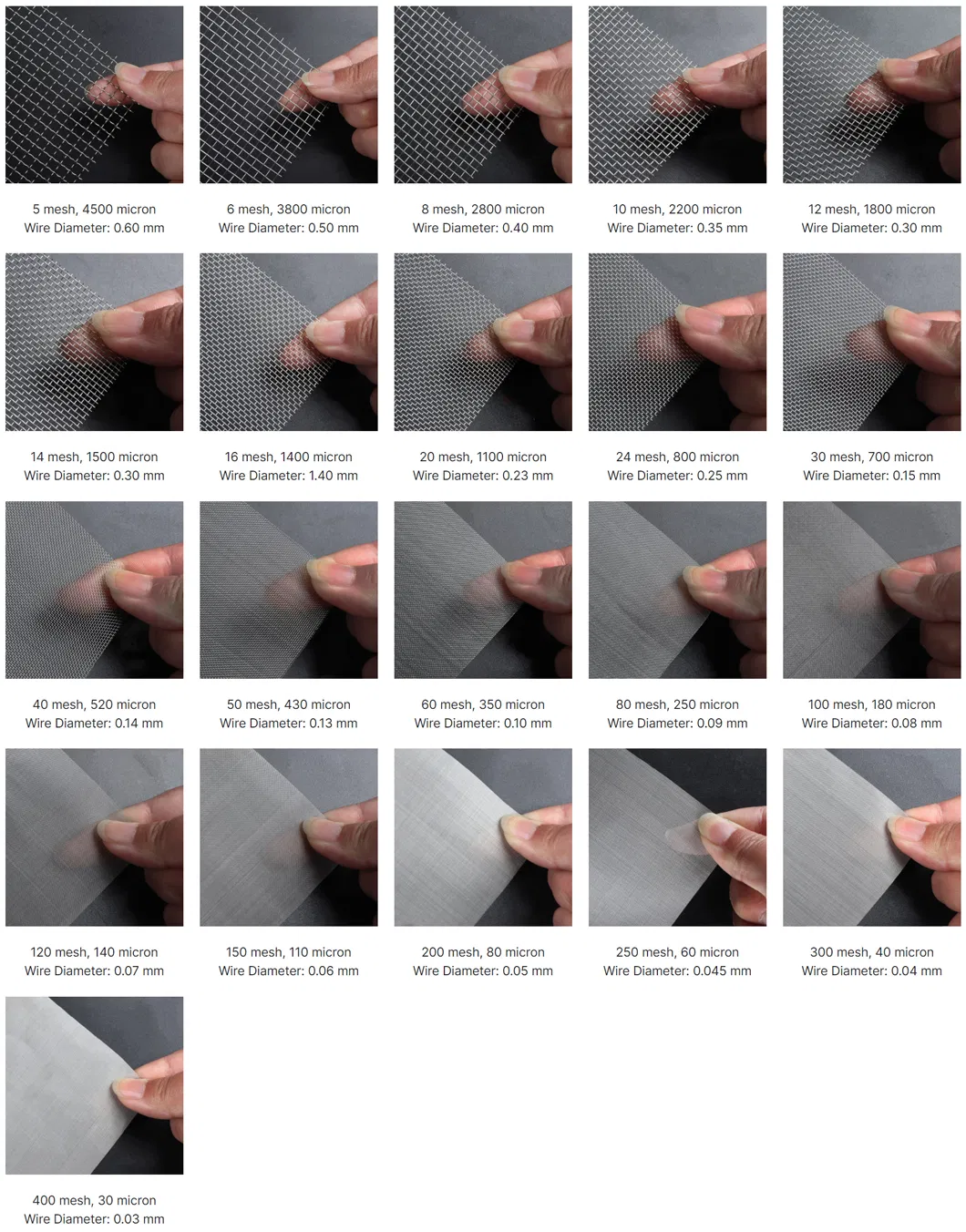

Stainless Steel Wire Mesh Samples (5-400 mesh)
Copper Wire Mesh Samples (20-200 mesh)
Brass Wire Mesh Samples (20-200 mesh)

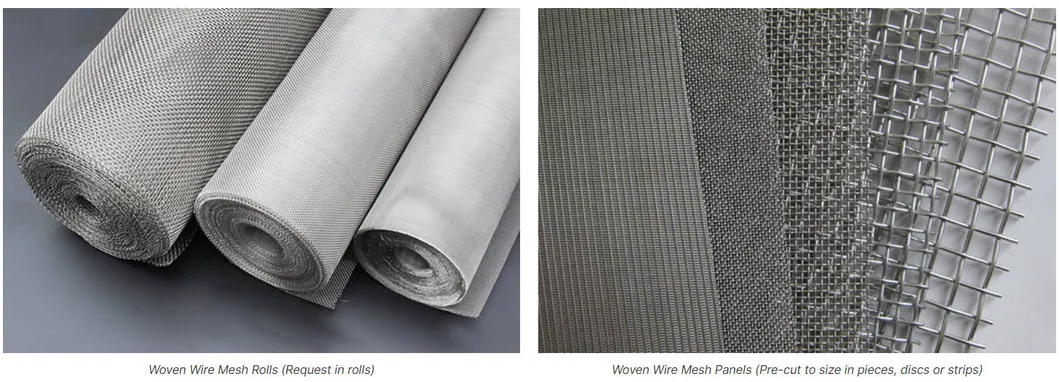

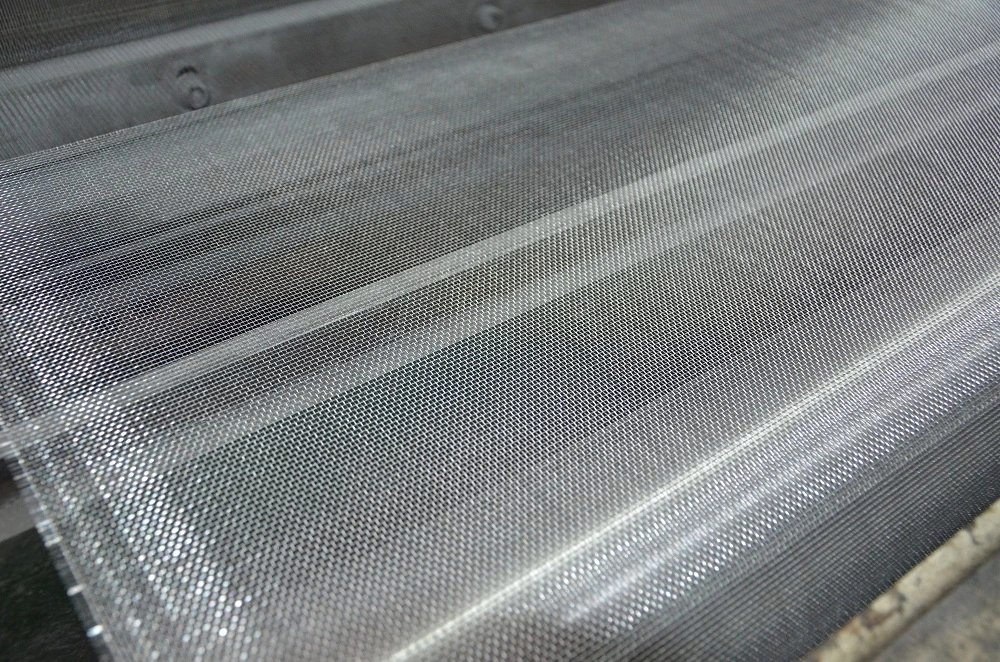

Woven wire mesh is usually provided in rolls and can also be cut into sheets of various sizes and shapes according to specific needs.
