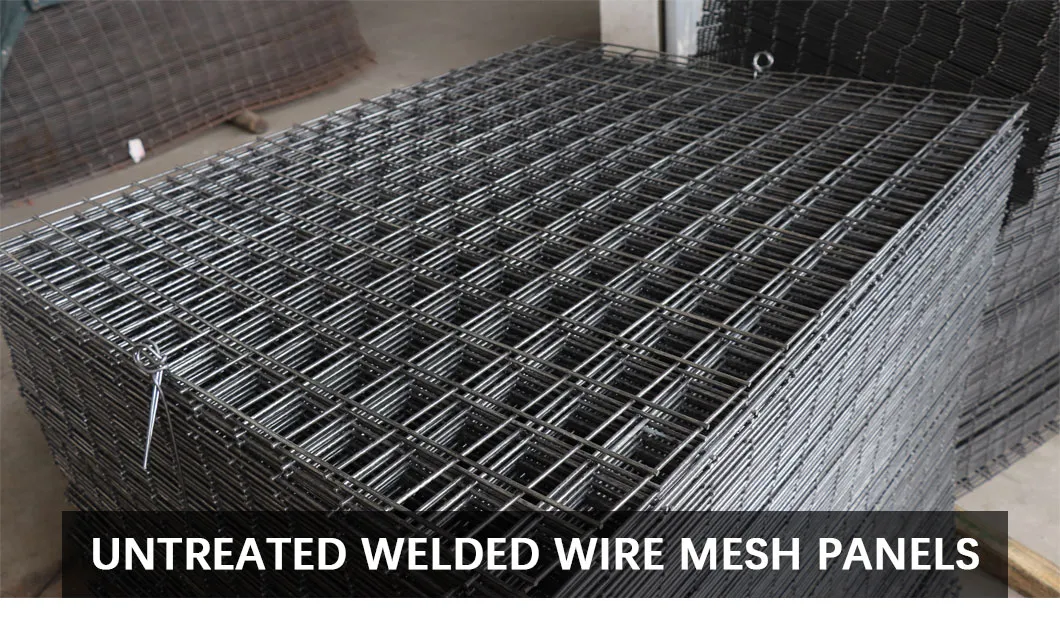

Welded Wire Mesh Panels and Welded Wire Mesh Rolls

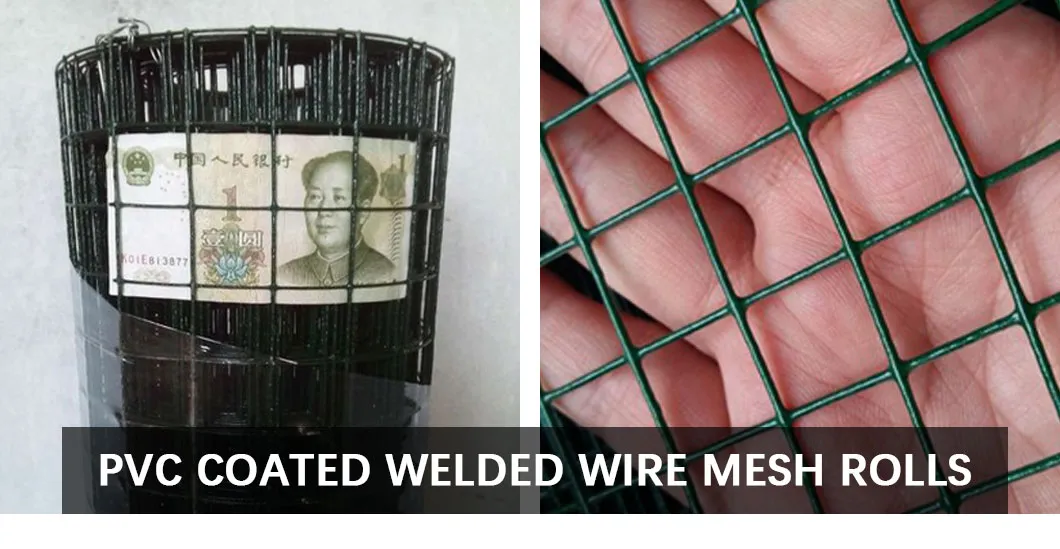

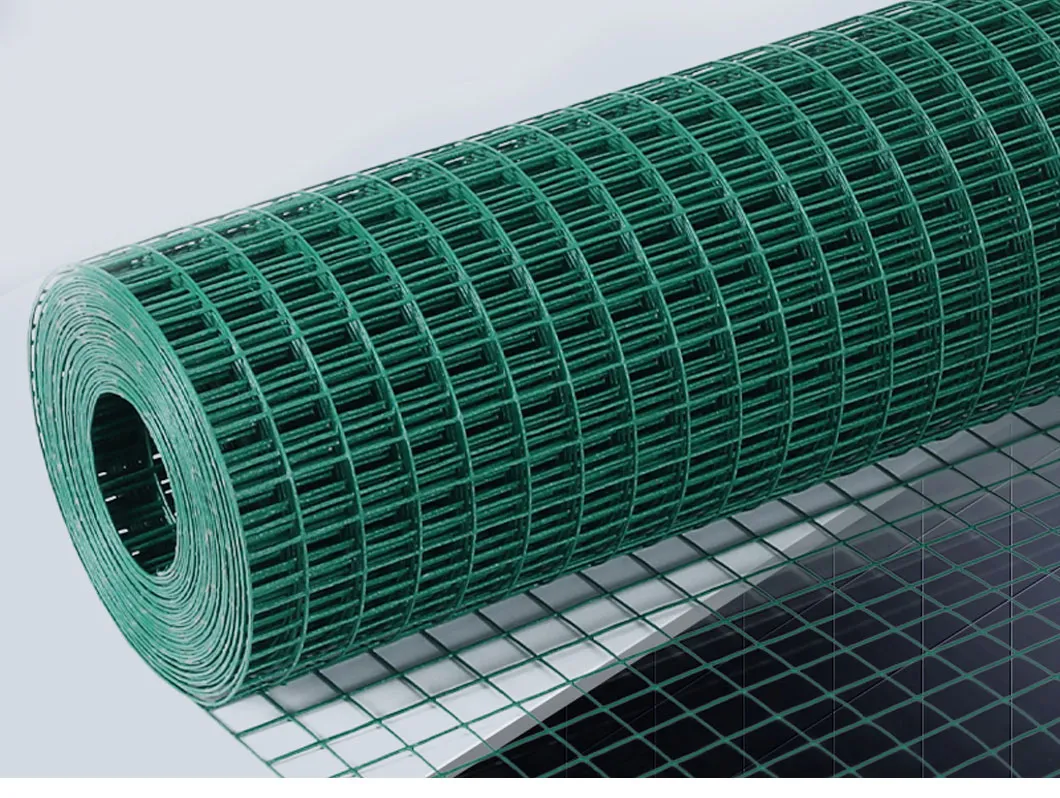

(Non-galvanized, Hot-dipped Galvanized, Electro-galvanized, and PVC Coated.)
Welded wire mesh is categorized into two types based on flexibility: welded mesh panels and welded mesh rolls. Standard panel sizes are typically 1800 mm × 3000 mm, with customization available. Welded mesh rolls offer enhanced flexibility for various applications.
| Tolerances on Mesh Dimensions | |
|---|---|
| Mesh Dimensions (mm) | Tolerance (mm) |
| < 50 | ±2.0 |
| ≥ 50 to < 200 | ±3.0 |

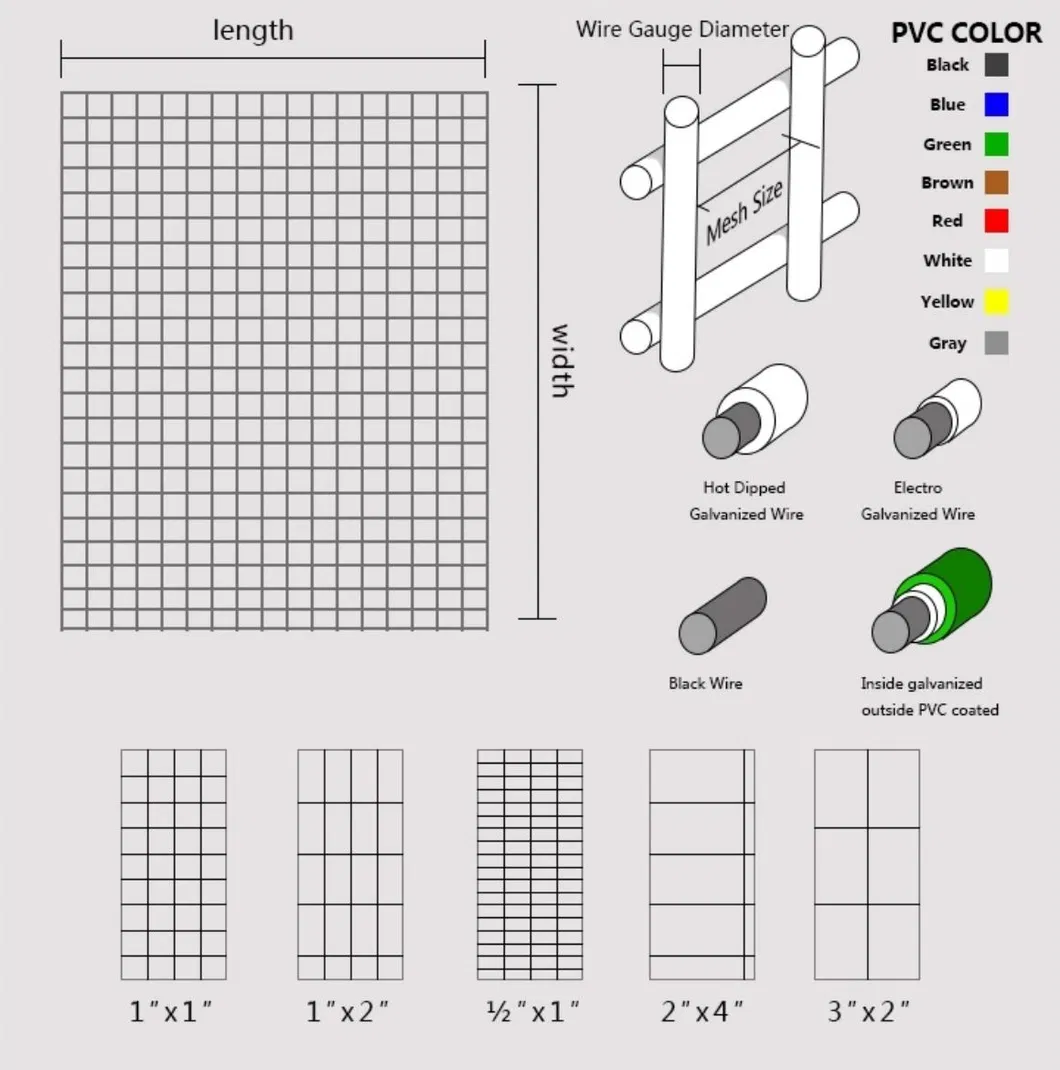

| Mesh Size and Wire Diameter | ||||
|---|---|---|---|---|
| Mesh Size | Wire Diameter Before & After PVC Coat | |||
| mm | inch | BWG No. | Before Coated (mm) | After Coated (mm) |
| 6.4 | 1/4 | 24-22 | 0.56-0.71 | 0.90-1.05 |
| 9.5 | 3/8 | 23-19 | 0.64-1.07 | 1.00-1.52 |
| 12.7 | 1/2 | 22-16 | 0.71-1.65 | 1.10-2.20 |
| 19.1 | 3/4 | 21-16 | 0.81-1.65 | 1.24-2.40 |
| 25.4 | 1 | 21-14 | 0.81-2.11 | 1.28-2.90 |
| 50.8 | 2 | 16-12 | 1.65-2.77 | 2.20-3.61 |

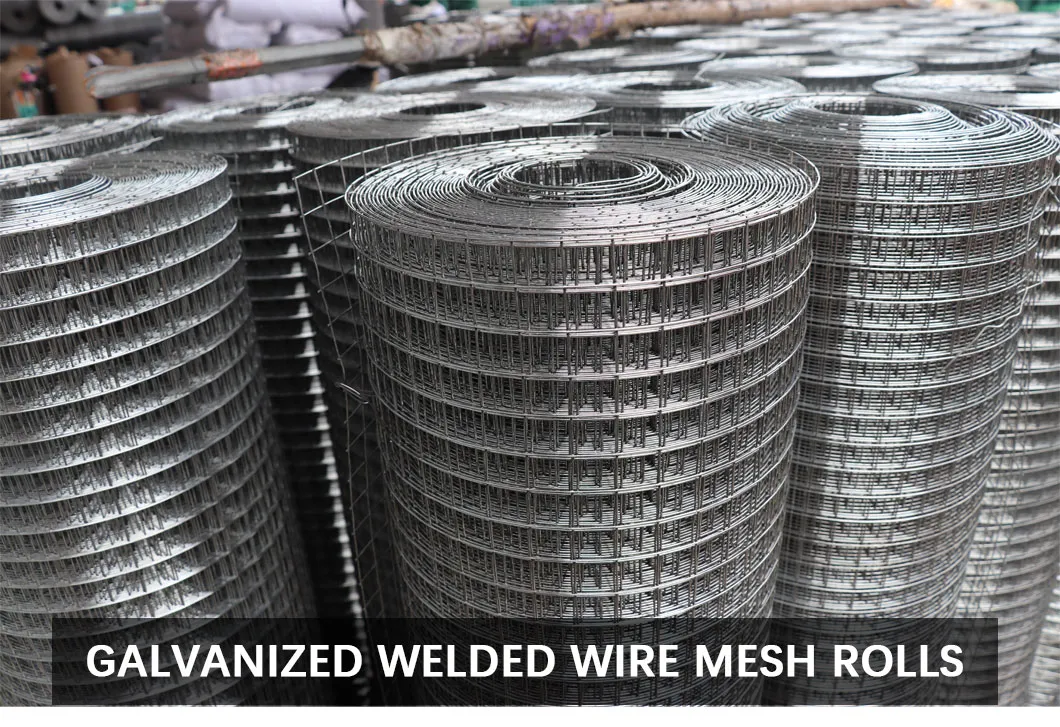

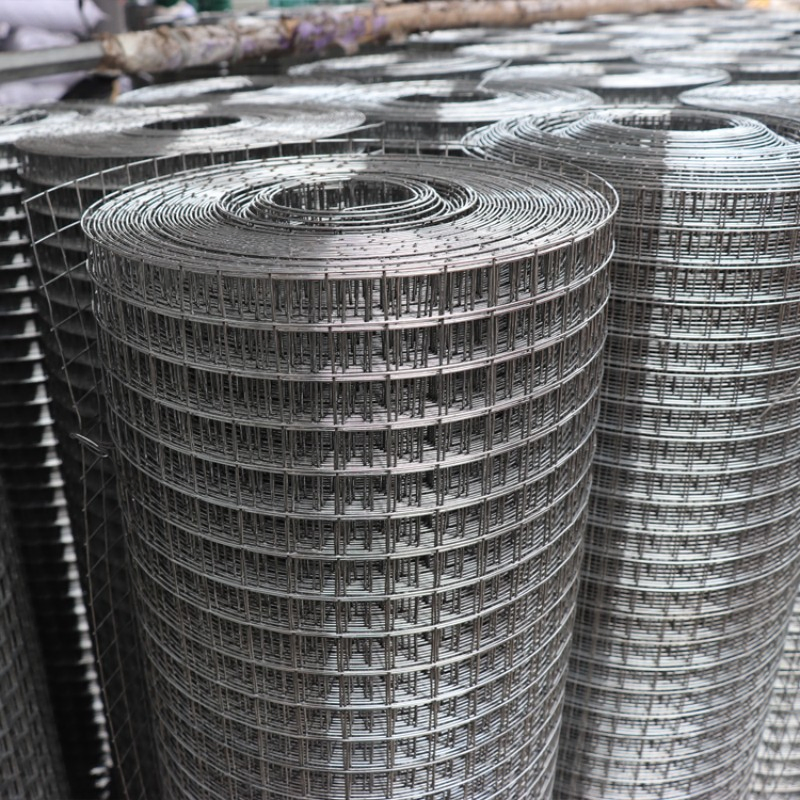

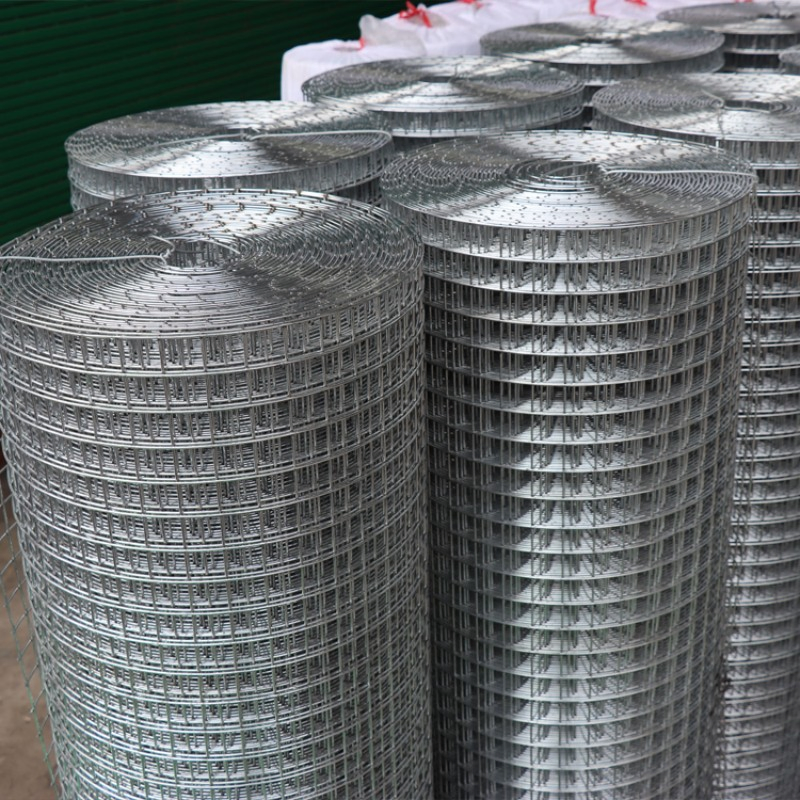

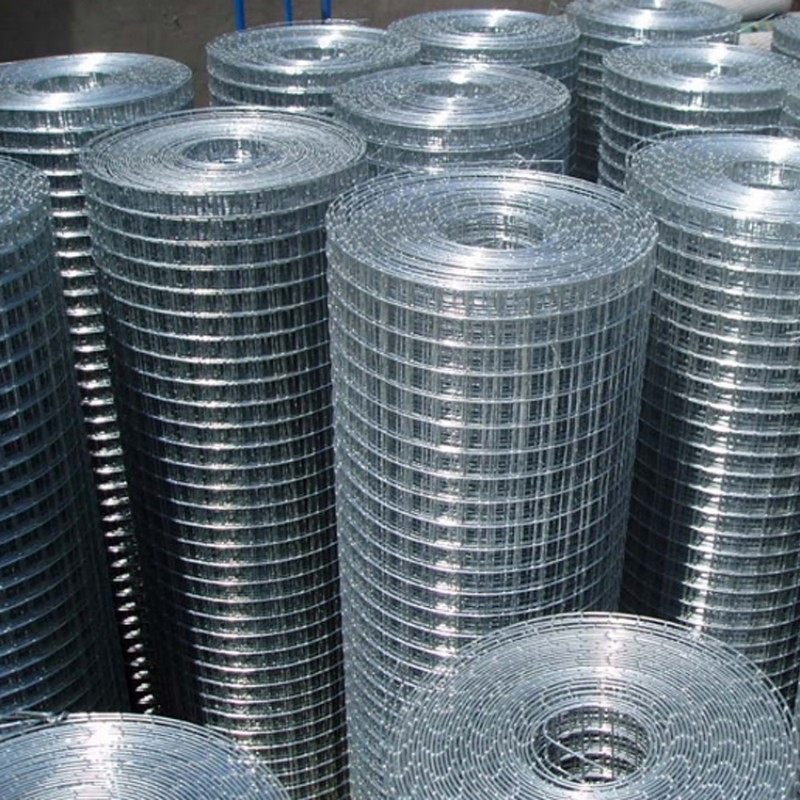

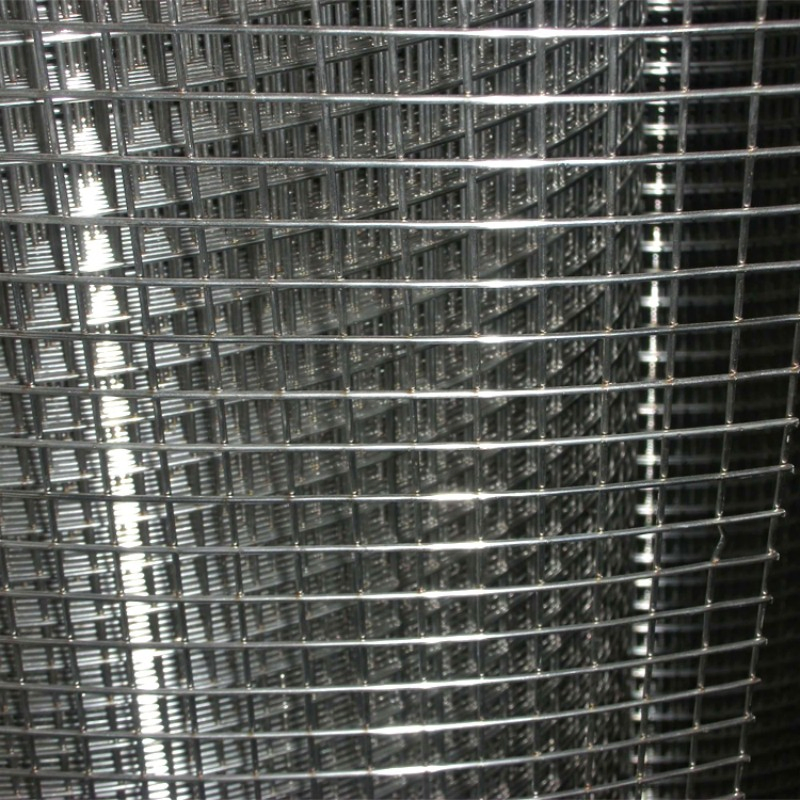

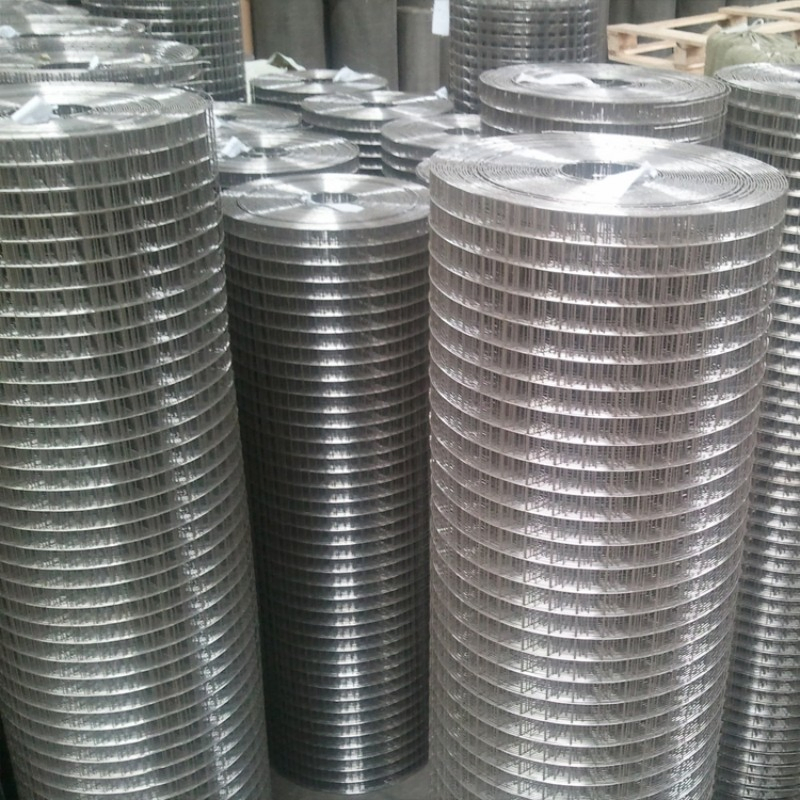

| Welded Wire Mesh Roll Size | |
|---|---|
| Mesh Inch | Width × Length |
| 1/2 | 3 ft. × 50 ft. |
| 1/2 | 4 ft. × 50 ft. |
| 3/4 | 5 ft. × 50 ft. |
| 1 | 6 ft. × 50 ft. |

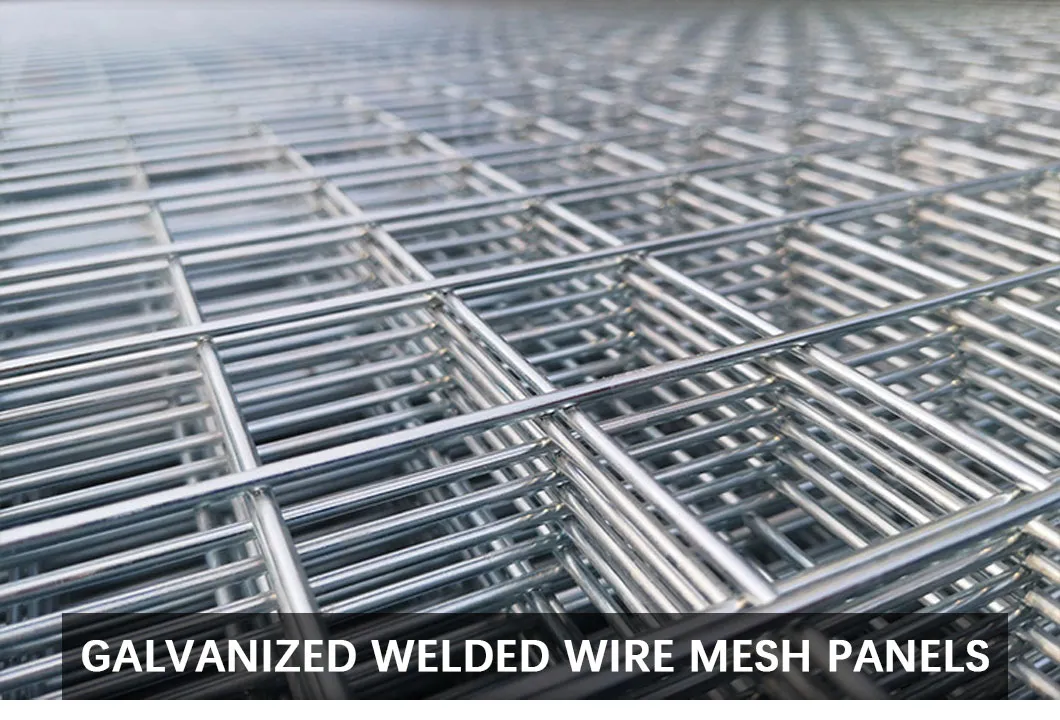

| Welded Wire Mesh Panels Common Specification | |||
|---|---|---|---|
| Mesh | Wire Diameter | ||
| Inches | Millimeters | Diameter (G) | Millimeters |
| 1" × 1" | 25 × 25 | 11 G - 14 G | 2 mm - 3 mm |
| 2" × 2" | 50 × 50 | 8 G - 14 G | 2 mm - 4 mm |
| 4" × 4" | 100 × 100 | 4 G - 14 G | 2 mm - 6 mm |
| Note: Special specifications can be customized. | |||
