| Item | Details |
|---|---|

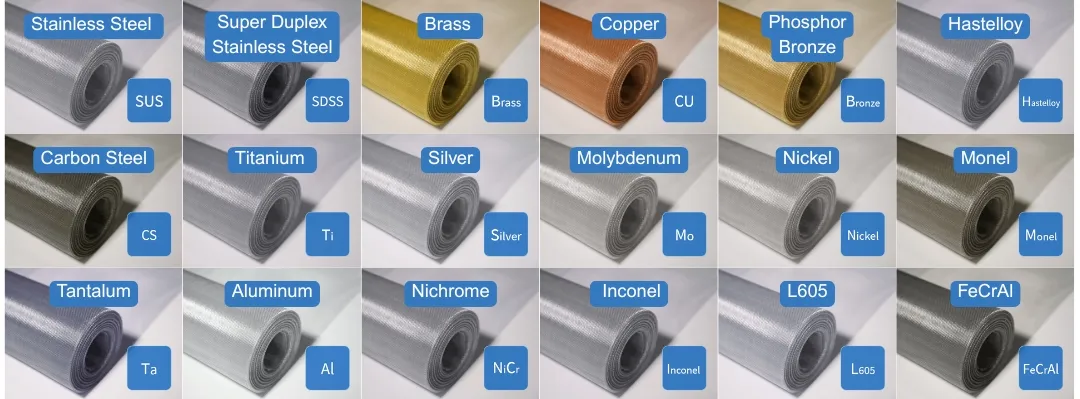

| Material | 201/304/316/316L Stainless Steel / Brass |
| Weave Type | Plain Dutch weave / Twill Dutch weave / Reverse Dutch weave |
| Wire Diameter | 0.013mm-0.6mm |
| Width | Customization Available |

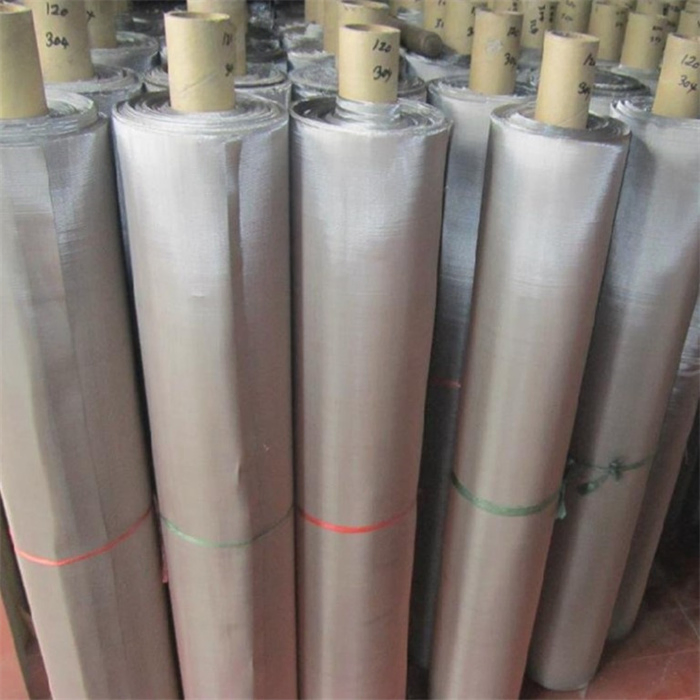

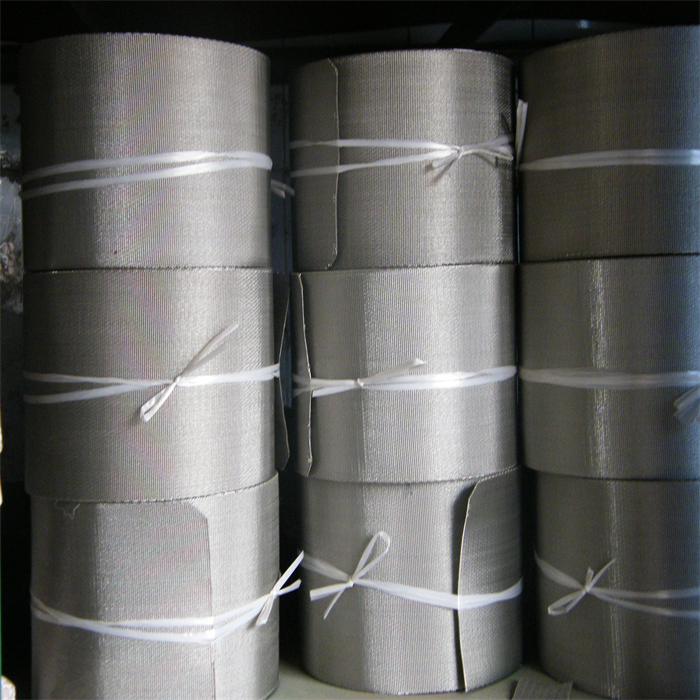

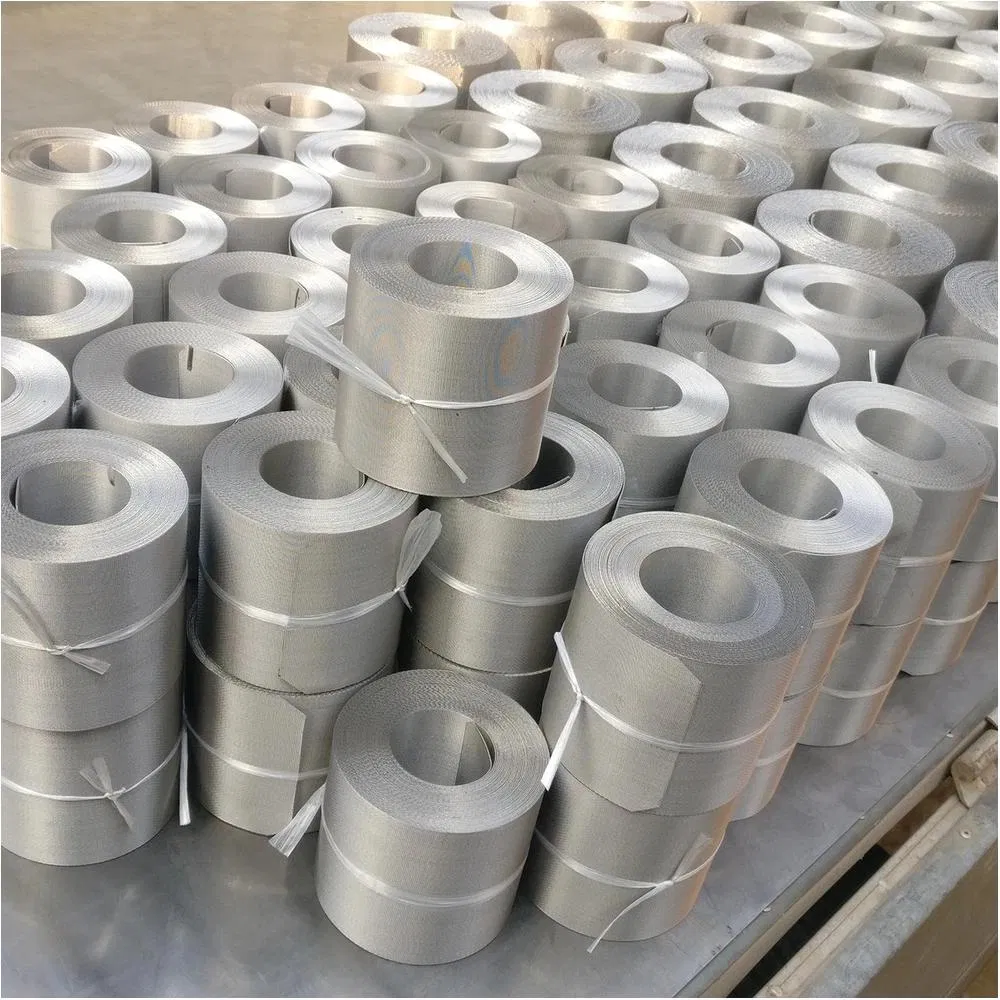

| Length | 1m - 30m (Roll) or Custom Cut |
| Certification | ISO 9001, ASTM E2016, RoHS |
| Application | Precoat Filter System, Nutsche Filters, Sand Control Screens, Cartridge Filters |

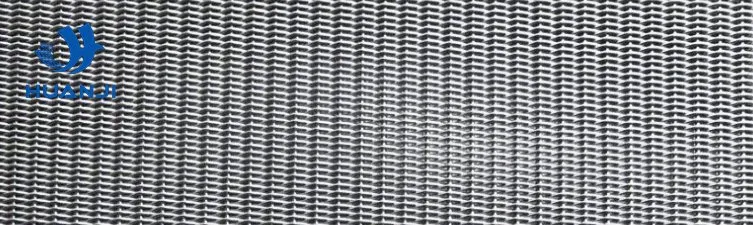

Dutch weave woven wire mesh is manufactured from stainless steel wire. Different from plain woven wire mesh and twill woven wire mesh, the Dutch weave woven wire mesh has a different diameter in the weft and warp directions. Commonly, the warp wire is a coarser wire, which can supply the high tensile strength for the wire mesh. The weft wire is a finer wire, which can ensure excellent filtering performance. This unique structure with greater strength and finer openings is primarily used as a filter cloth.

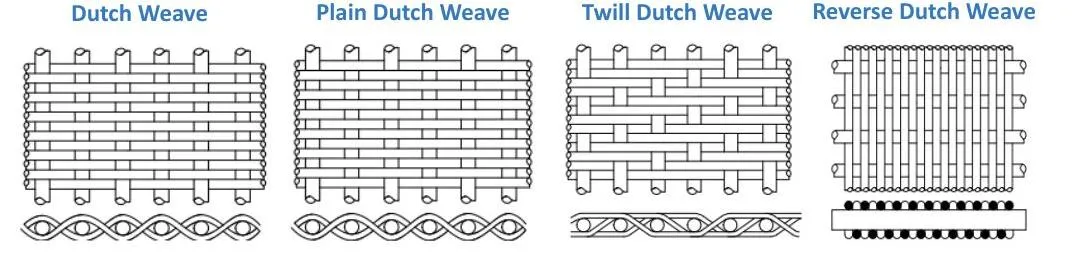

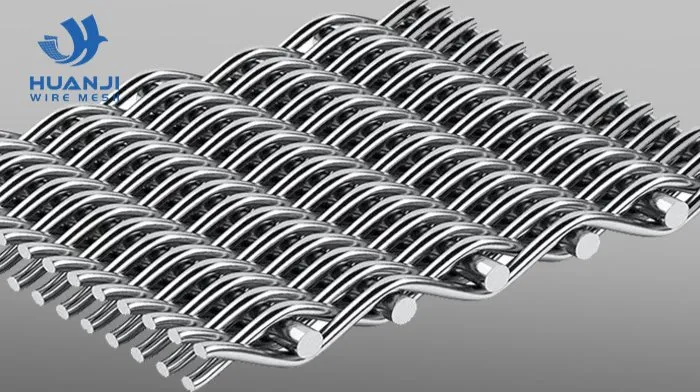

Plain Dutch Weave: Combination of dutch and plain weave. It offers greater mechanical stability and finer openings for better filtration efficiency.

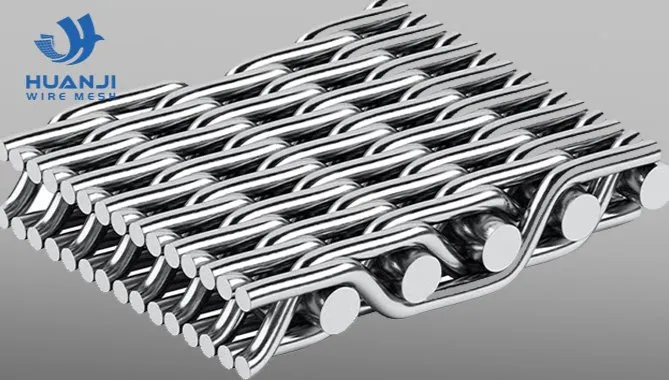

Twill Dutch Weave: Combination of dutch and twill weave. Superior filtering performance and higher tensile strength for ultra-fine products.

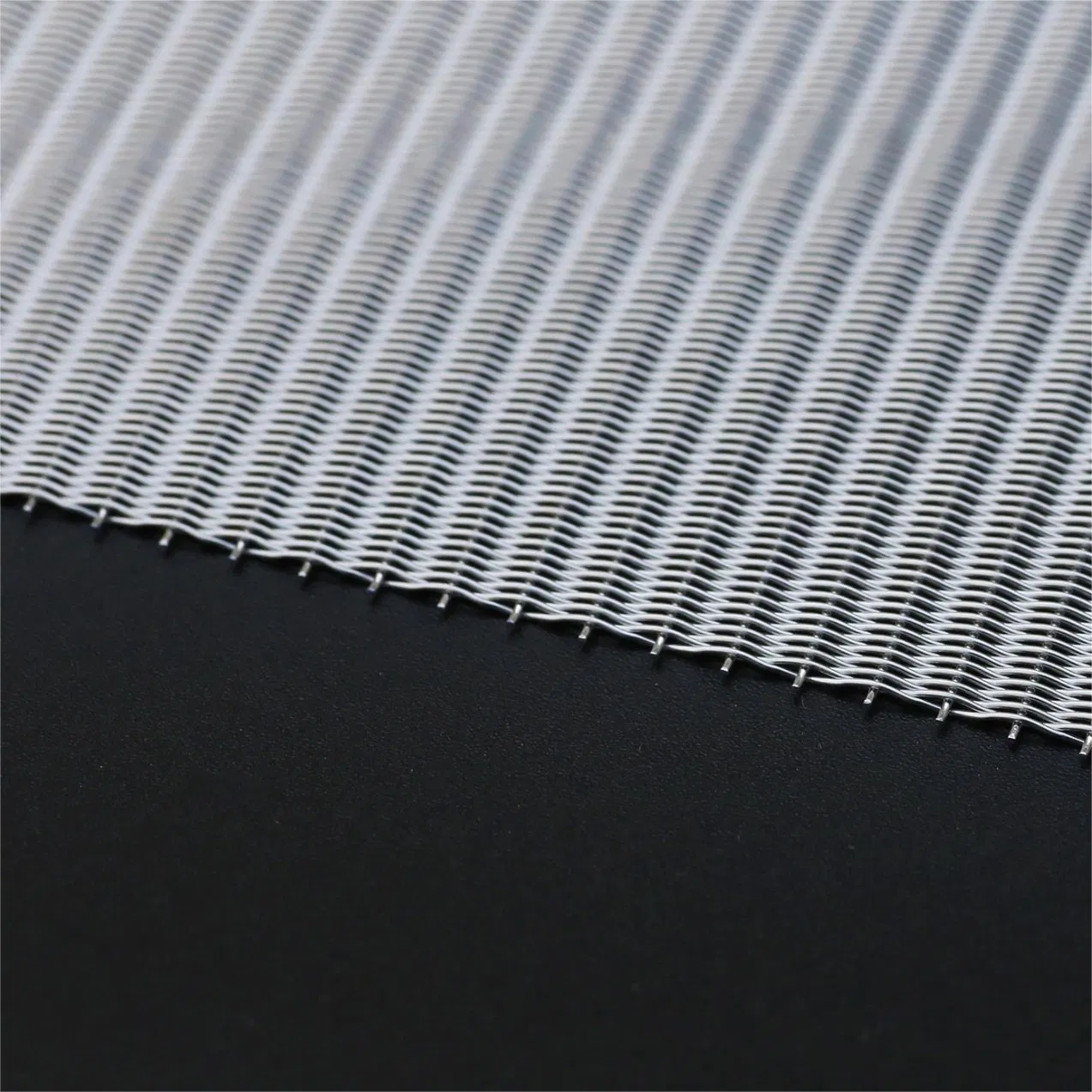

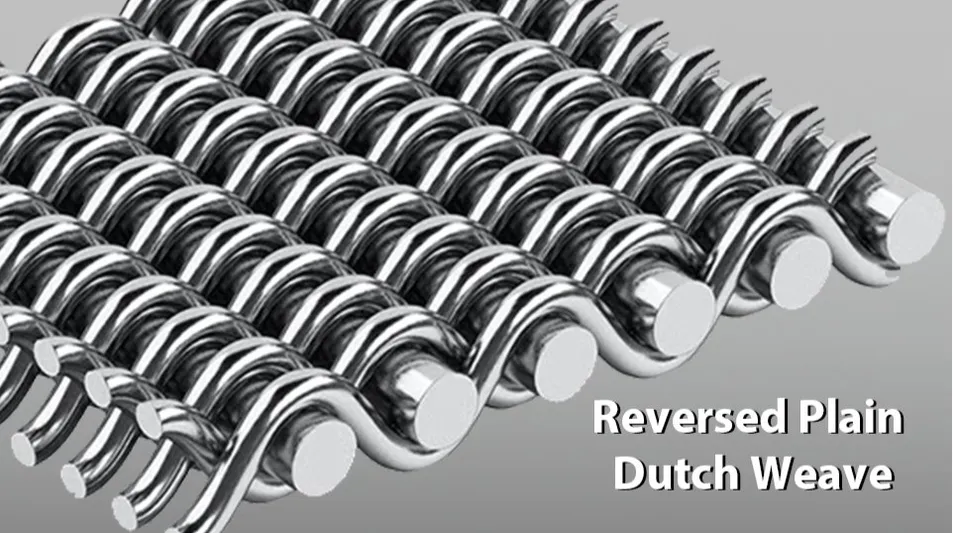

Reverse Dutch Woven: Warp wires are relatively thin and shute wires are thick. Produces precisely defined pore openings at an angle to the surface.

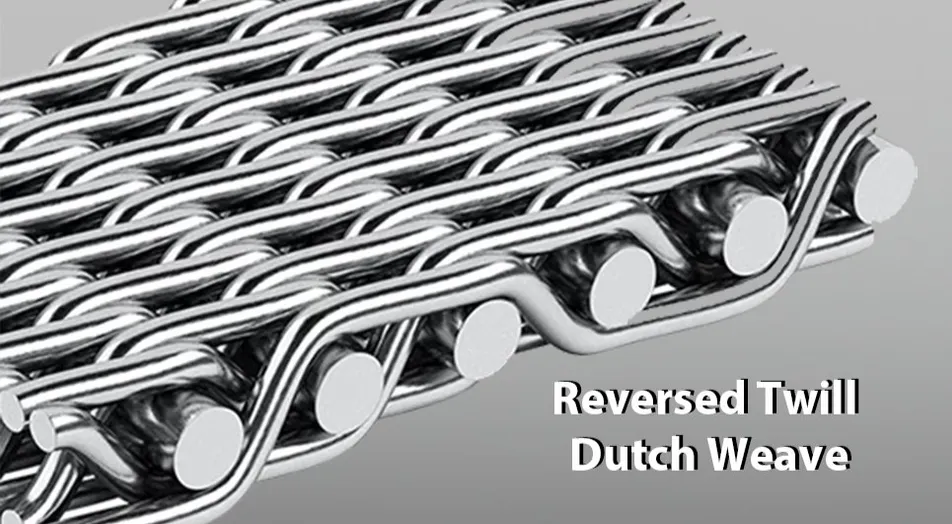

Reverse Dutch Twilled Weave: Suitable for applications subject to high levels of mechanical stress without heavy deformation.
| Plain Dutch Weave Woven Wire Mesh | ||||
|---|---|---|---|---|
| Model | Mesh Count | Wire Dia (mm) | Filter Rating (μm) | Weight (kg/m²) |
| HJ-PD-1070 | 10 × 70 | 0.600 × 0.350 | 300–325 | 3.04 |
| HJ-PD-1264 | 12 × 64 | 0.580 × 0.400 | 295–305 | 3.64 |
| HJ-PD-40200 | 40 × 200 | 0.180 × 0.140 | 75–85 | 1.3 |
| HJ-PD-80400 | 80 × 400 | 0.125 × 0.071 | 38–42 | 0.81 |

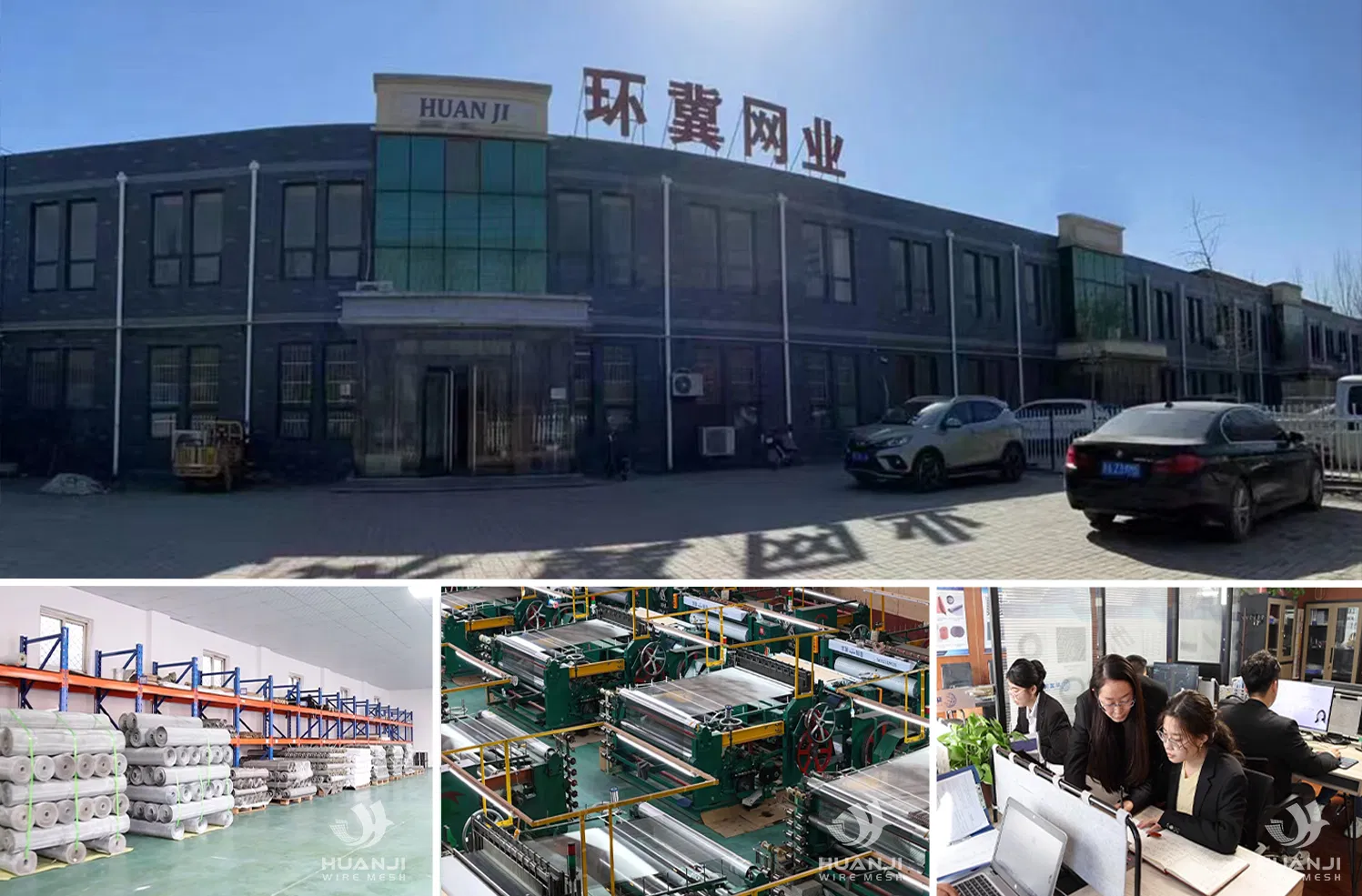

Our facility, established in 1999, has developed into a leading enterprise focusing on the production, development, and sales of stainless steel wire mesh. We operate 6 mature production lines supported by a 42-person R&D team and strict quality control departments.
