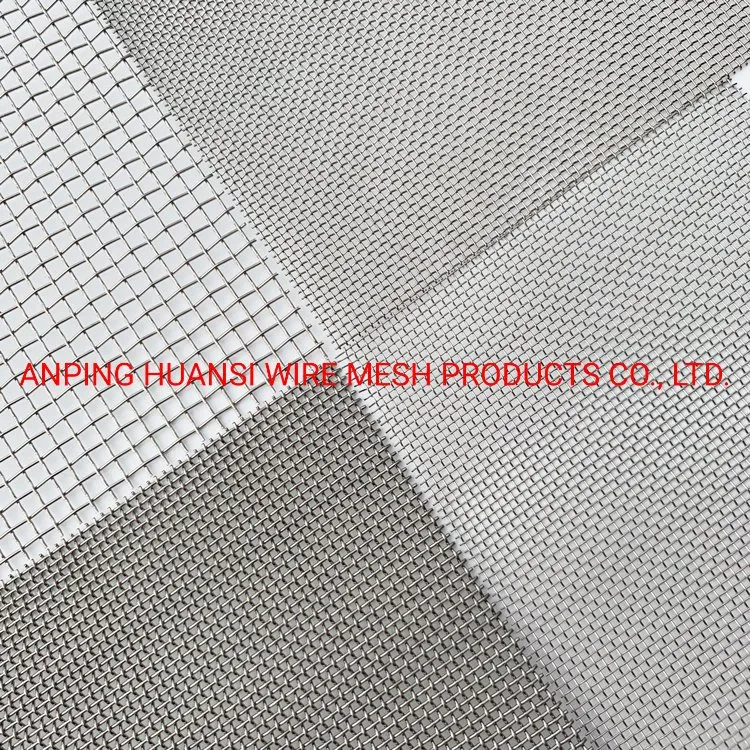

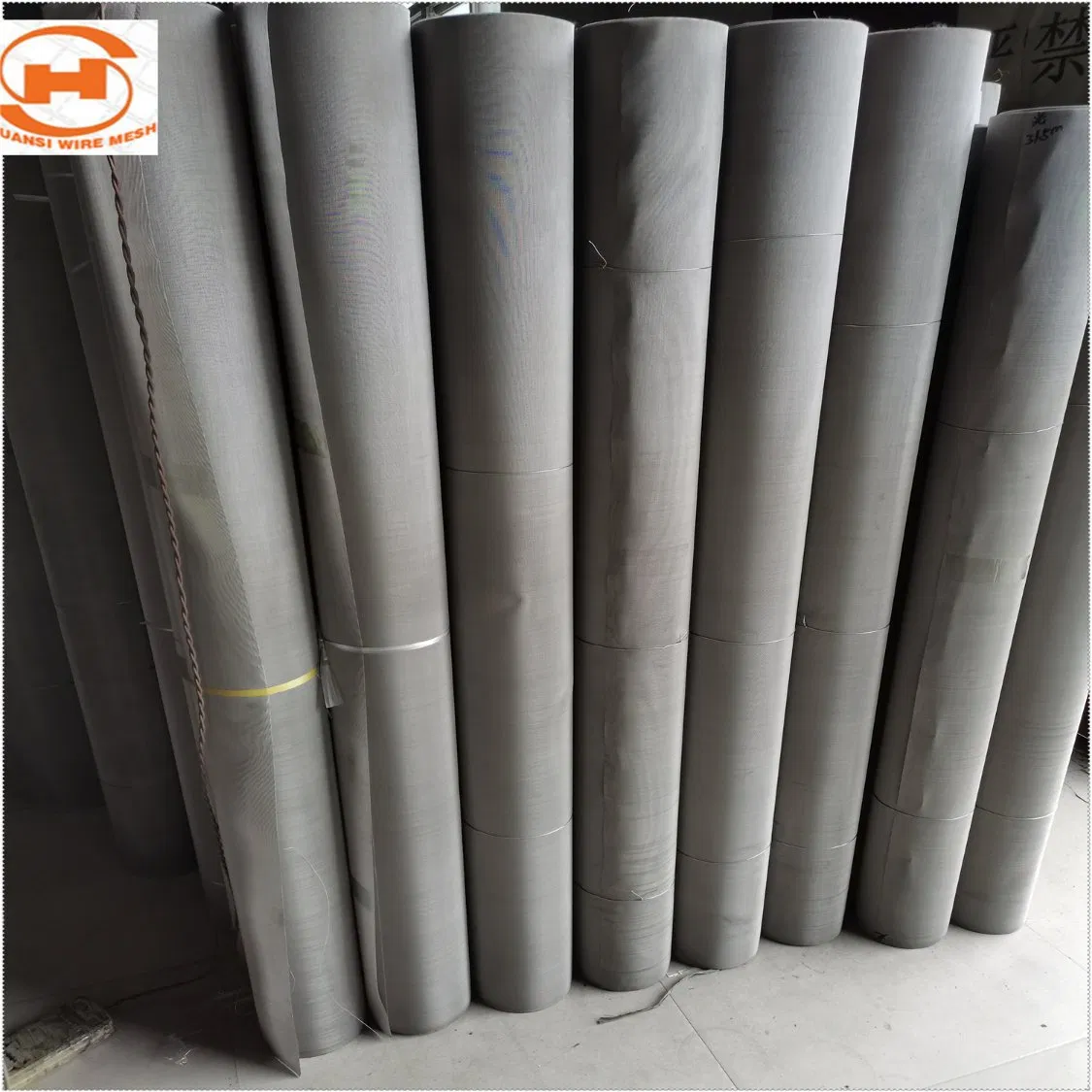

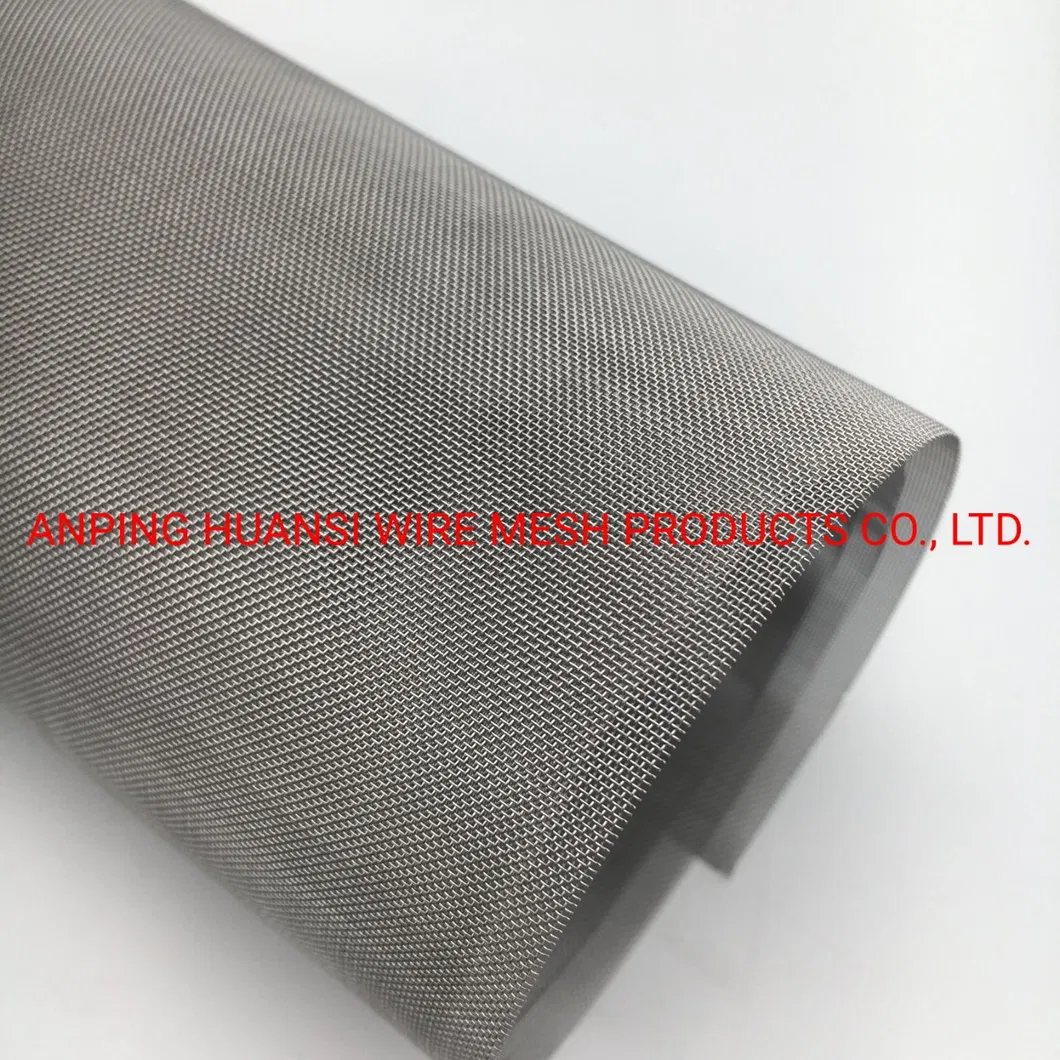

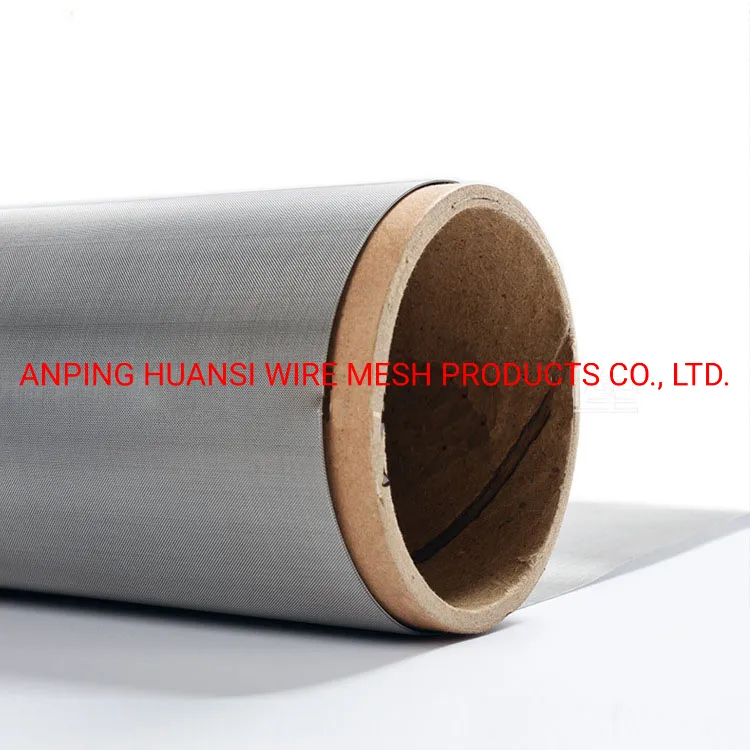

310S is also known as 0Cr25Ni20, commonly known as 2520 stainless steel. It is an austenitic chromium-nickel stainless steel, which has excellent oxidation resistance and corrosion resistance. Because of the high percentage of chromium and nickel, it has superior creep strength and can continue to operate at high temperatures.
Key Features:
| Mesh/inch | Wire Diameter (mm) | Aperture (mm) | Mesh/inch | Wire Diameter (mm) | Aperture (mm) |
|---|---|---|---|---|---|
| 2 mesh | 1.80 | 10.90 | 60 mesh | 0.15 | 0.273 |
| 4 mesh | 1.20 | 5.15 | 80 mesh | 0.12 | 0.198 |
| 10 mesh | 0.55 | 1.990 | 100 mesh | 0.10 | 0.154 |
| 20 mesh | 0.30 | 0.970 | 200 mesh | 0.053 | 0.074 |
| 30 mesh | 0.25 | 0.596 | 325 mesh | 0.03 | 0.048 |
| 50 mesh | 0.19 | 0.318 | 400 mesh | 0.025 | 0.0385 |
Standard Width of Wire Mesh: 0.6m - 8m

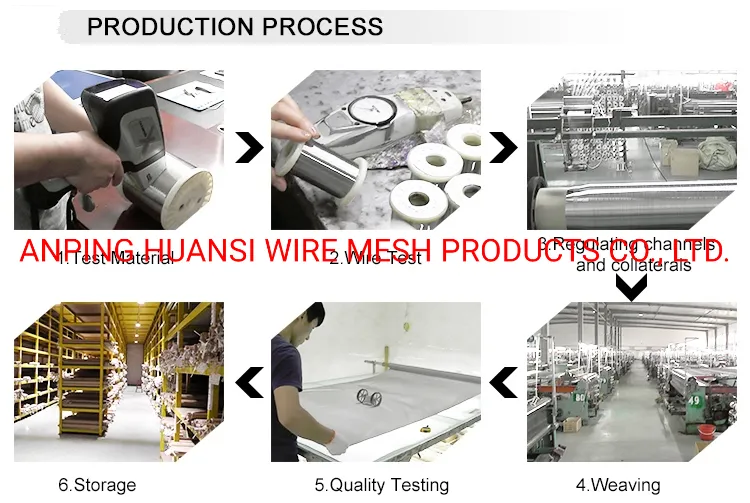

Our facility specializes in the custom design and manufacture of wire mesh and processed products. Utilizing modern computer-controlled looms, we are capable of weaving widths from 2" up to 600". Most metals, precious metals, and alloys can be woven to meet exacting industrial specifications.
Available Weave Types: Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Welded Wire Mesh, and Intercrimp.

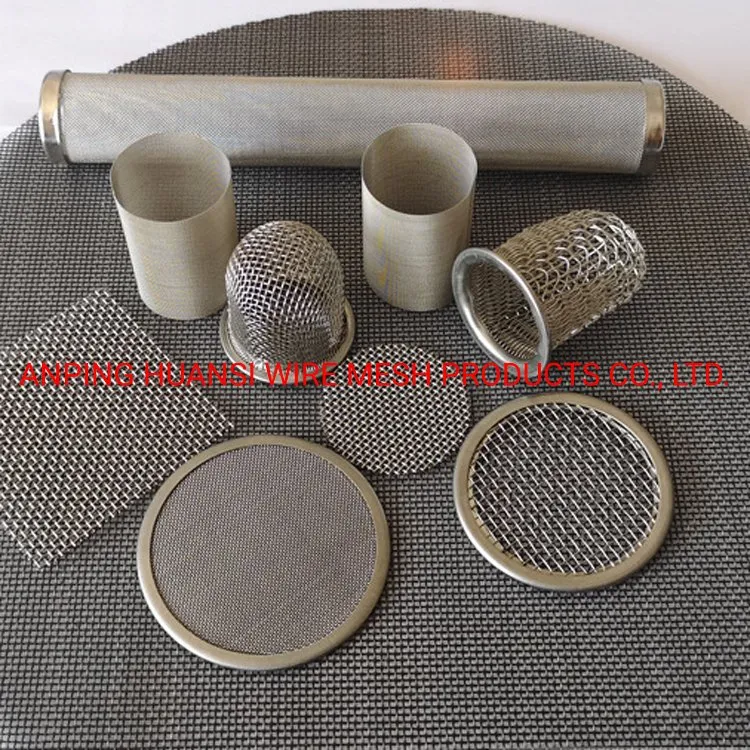

Fabrication Services: Waterjet Cutting, Calendering, Punching, Stamping, Shearing, and Precision Slitting.
