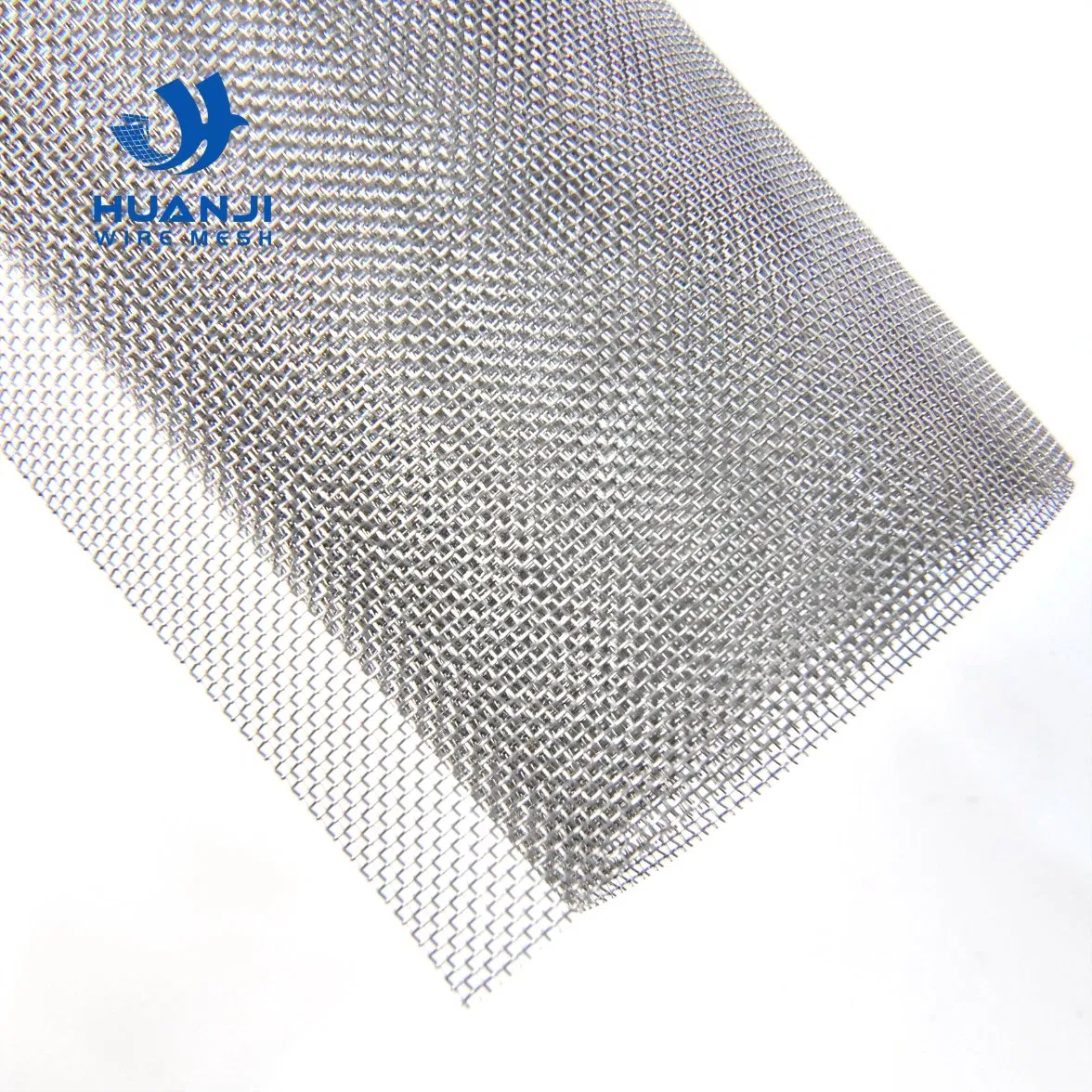

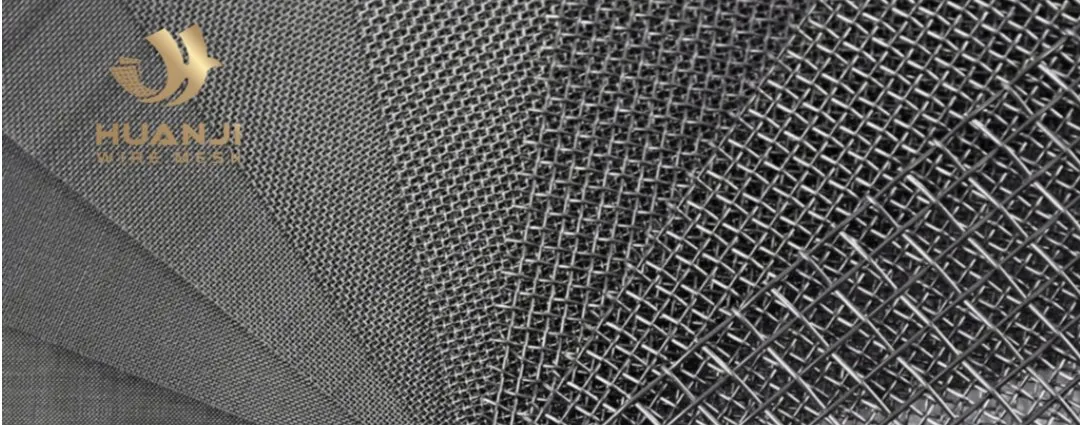

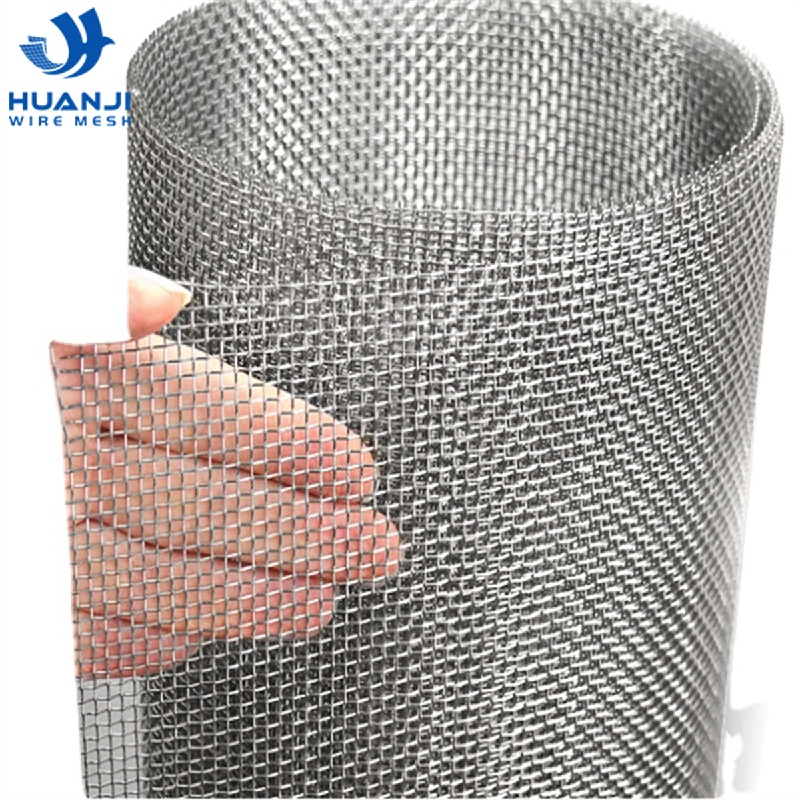

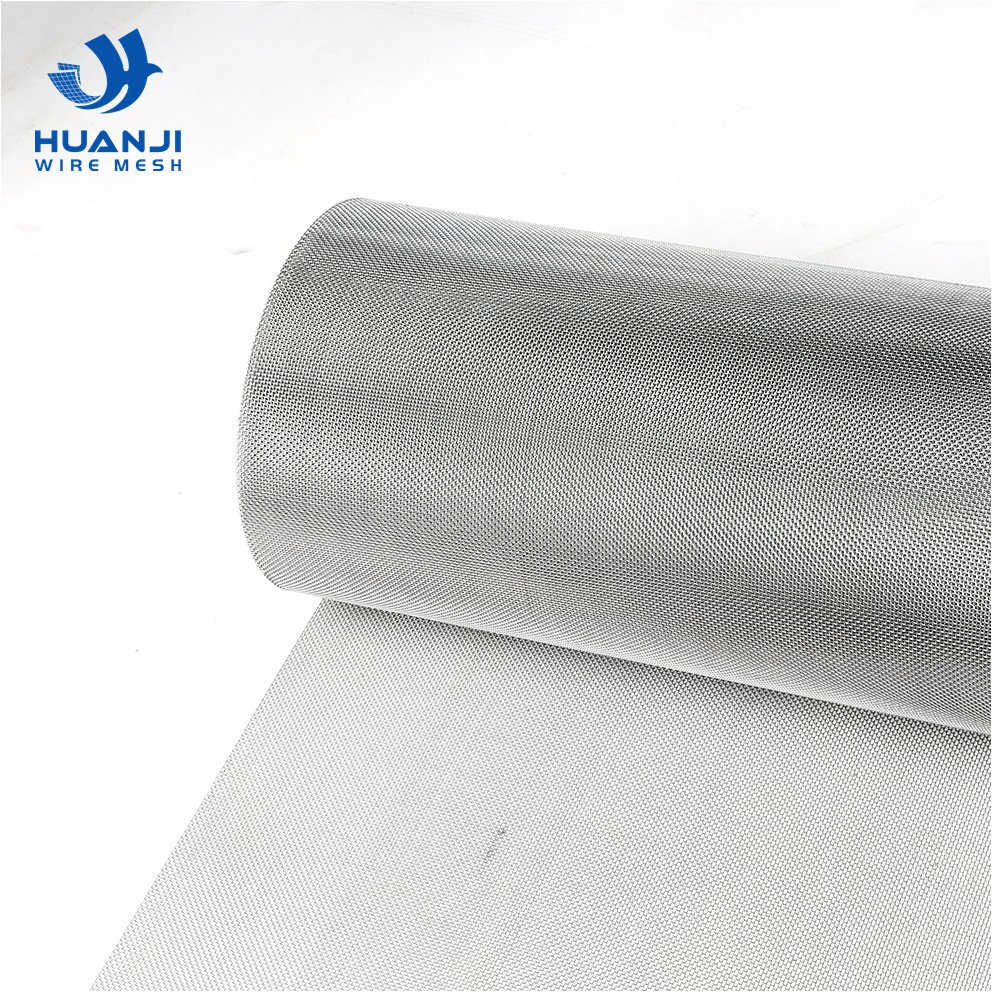

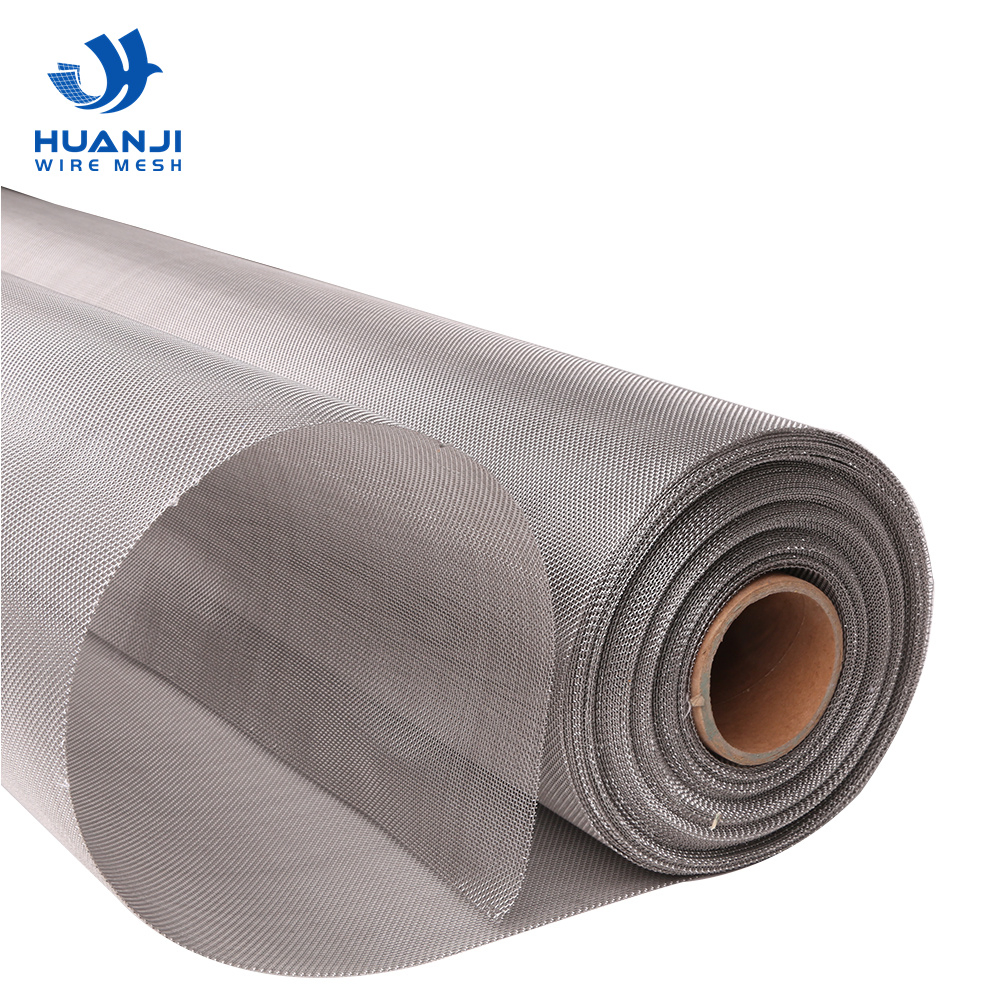

Plain Weave Mesh: Plain weave mesh is one of the most common metal woven meshes. With high precision mechanical equipment and cutting-edge weaving technology, our plain weave mesh features uniform mesh opening size and good permeability and is widely used in manufacturing mesh screens, filter elements, filter discs, etc.
Technical Specifications
Model

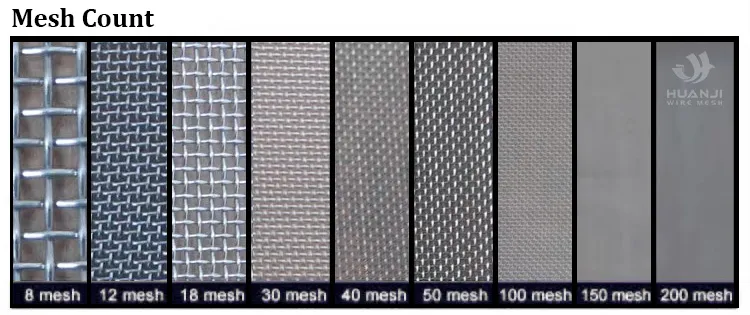

Mesh Count
Wire Dia (mm)
Opening (mm)
Open Area %
HJ-0185
1x1
2.030
23.37
85
HJ-0276
2x2
1.600
11.1
76
HJ-1056
10x10
0.640
1.91
56
HJ-10037
100x100
0.100
0.154
37
HJ-40028
400x400
0.030
0.0335
28
HJ-63525
635x635
0.020
0.0200
25
Applications
Commonly used for filtering, printing, sugar processing, sieving, oil filtration, construction wire mesh, protecting mesh, decorative mesh, and industrial cages.

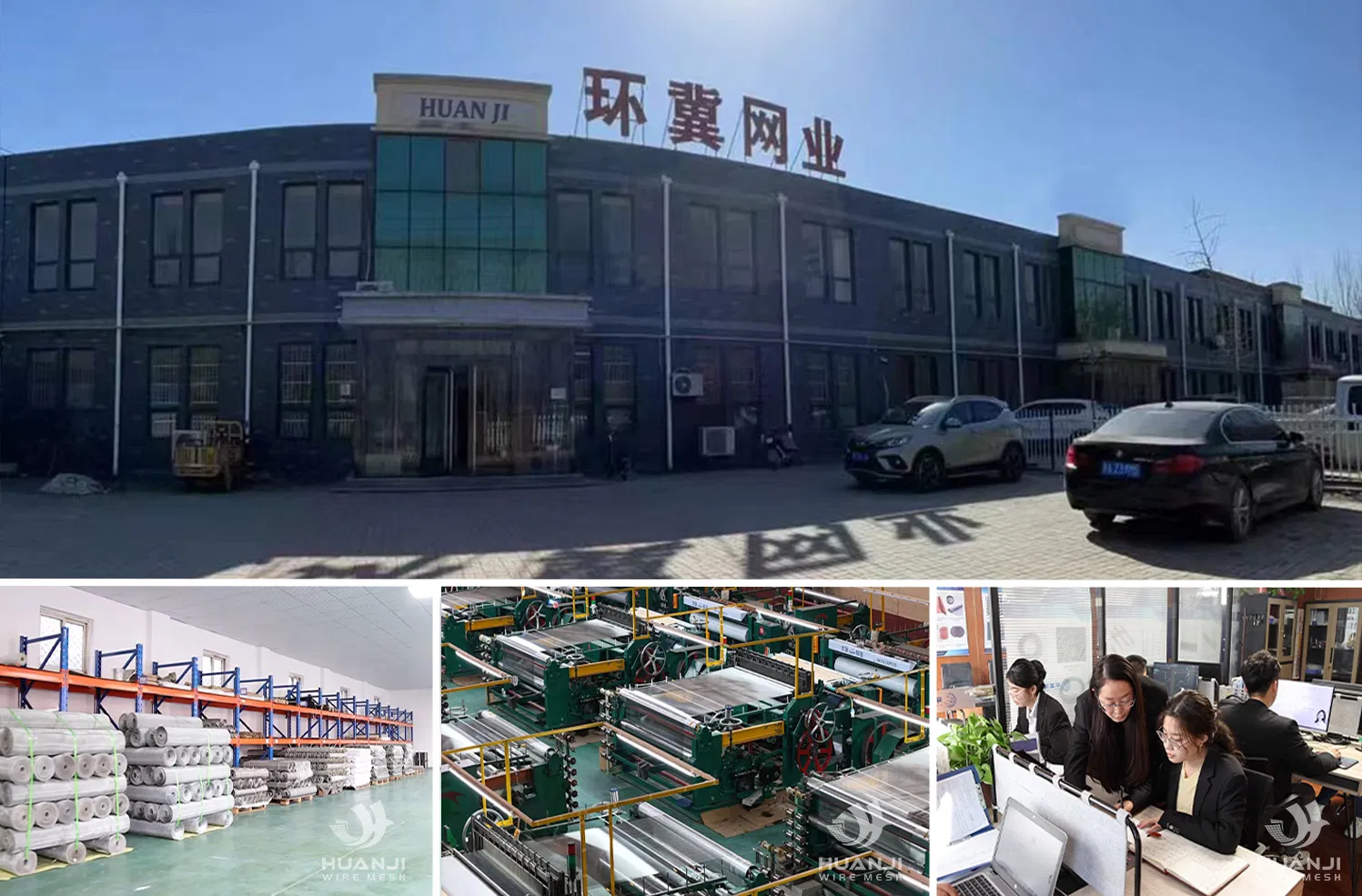

Production & Quality Control
Packaging & Delivery
Package Size:
105.00cm * 10.00cm * 10.00cm
Gross Weight:
2.000kg
Packing Method:
Waterproof Film + Wooden Case / Pallet
Frequently Asked Questions

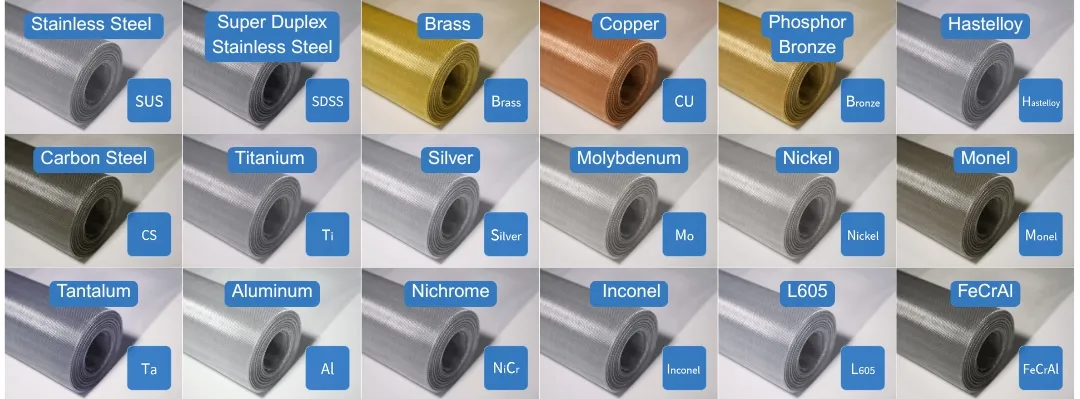

1. What grades of stainless steel are available for the wire mesh?
We offer a wide range of materials including SUS304, 316, 316L, 310S, and 410. Special materials like Nickel, Titanium, and Silver are also available upon request.
2. Can the mesh withstand high temperatures?
Yes, our stainless steel woven wire mesh can resist temperatures up to 800°C (1472°F), making it suitable for industrial heat-treating and filtering applications.

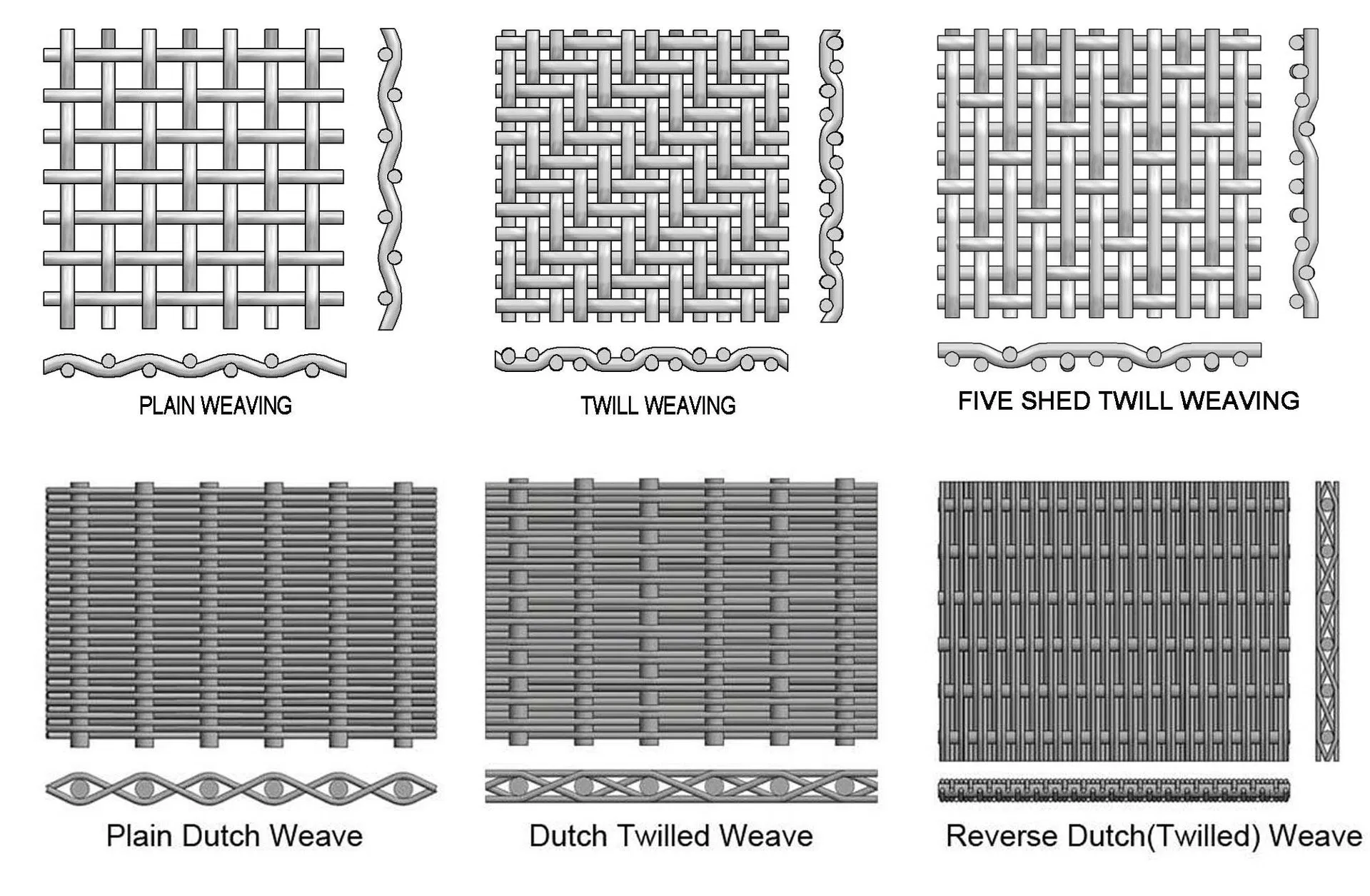

3. What is the difference between Plain and Twill weave?
Plain weave is the most common with a simple over-under pattern. Twill weave allows for a heavier wire to be used with a given mesh count, providing greater strength for fine filtration.
4. Do you provide custom sizes and cut-to-size services?
Absolutely. We can customize the width from 0.05m up to 3m and provide specific roll lengths or custom-cut sheets to meet your exact requirements.
5. What industries typically use this wire mesh?
It is widely used in chemical processing, food and beverage, oil and gas, construction (protecting and decorative mesh), and pharmaceuticals for filtration and screening.
6. How is the product protected during shipping?
Each roll is wrapped in waterproof paper or film and then securely packed in a wooden case or on a pallet to prevent damage and corrosion during transit.
