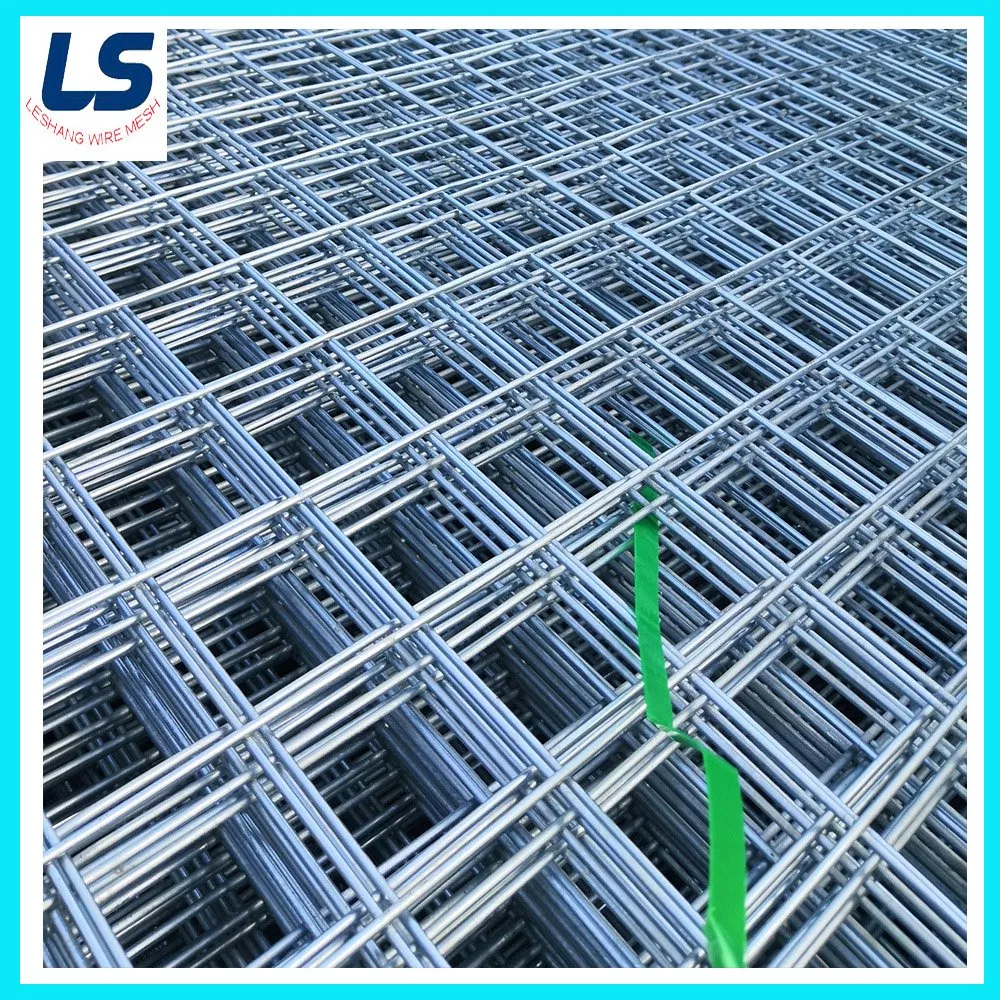

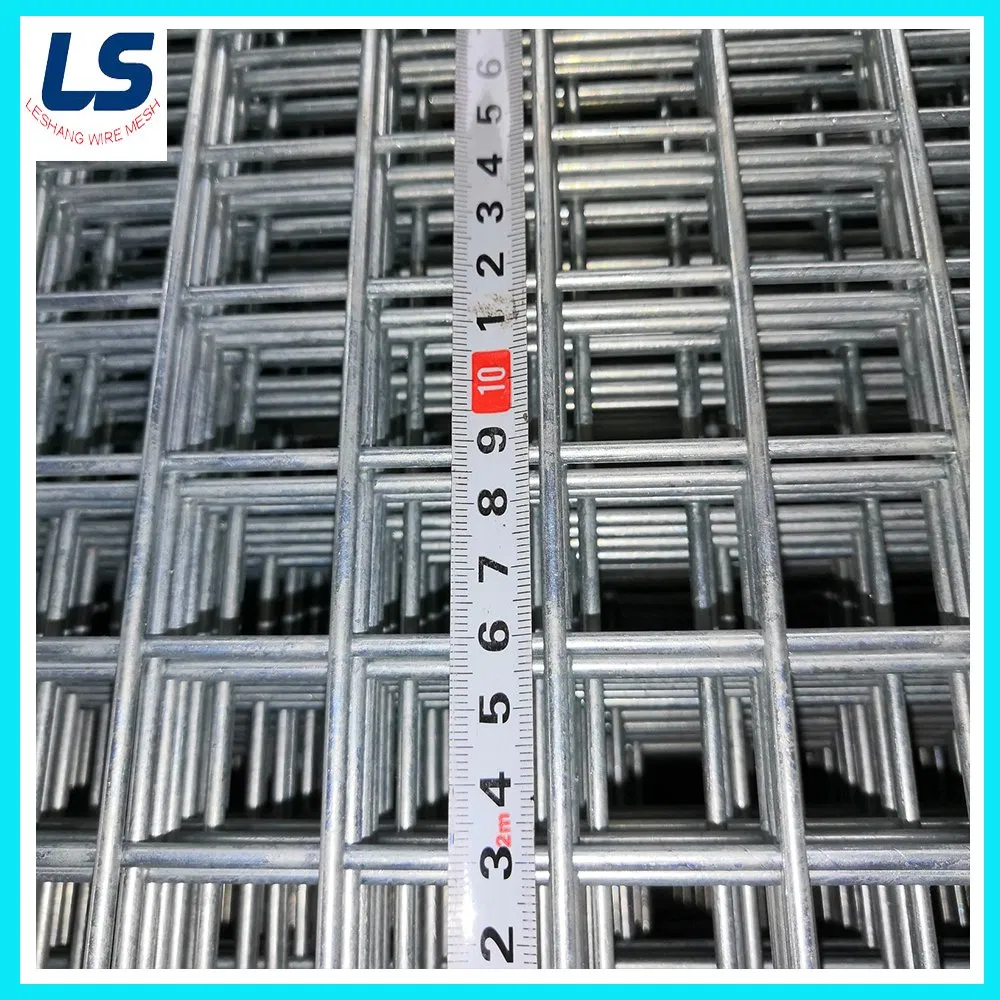

Welded wire mesh is constructed with two orthogonal wires that are joined together at their intersections using a resistance welding process to form a grid. The line wires of the grid are guided through the welder using a pattern board. The machine drops cross wires into place and fuses them together to create the two distinctive planes that form welded wire mesh.

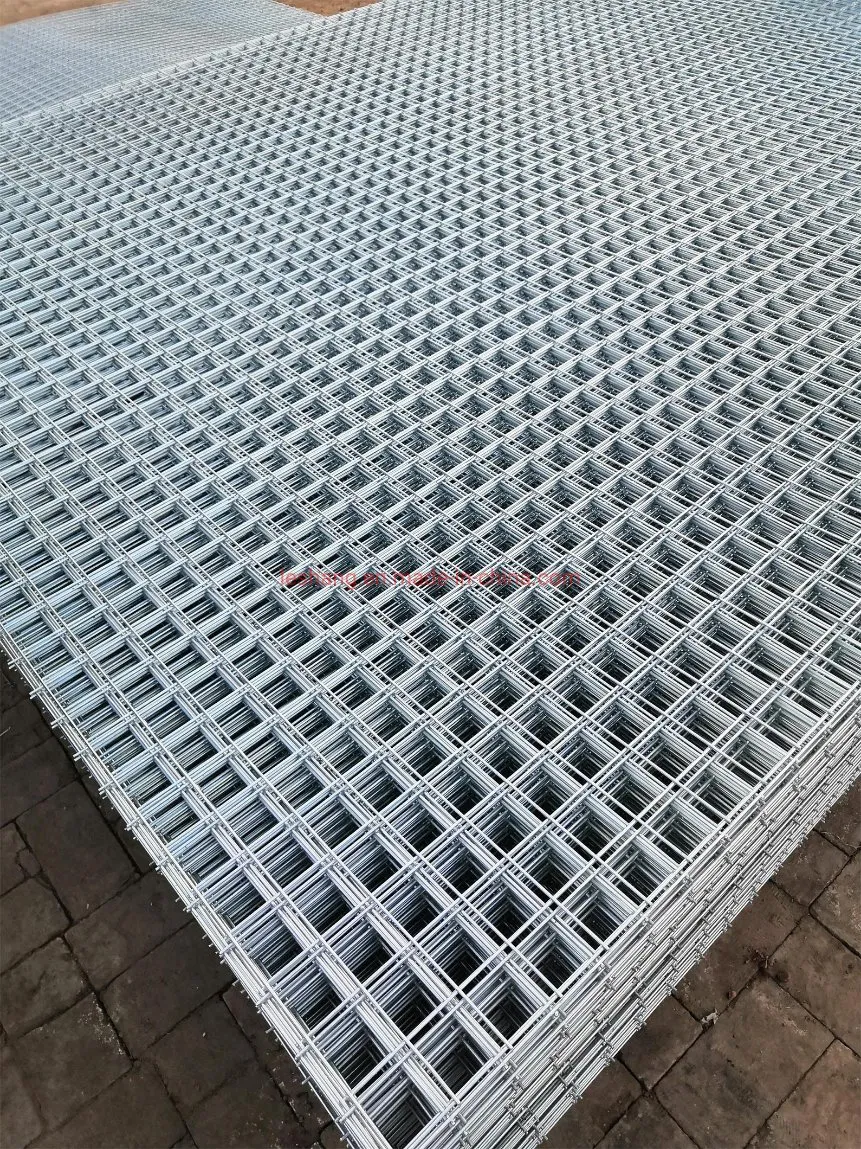

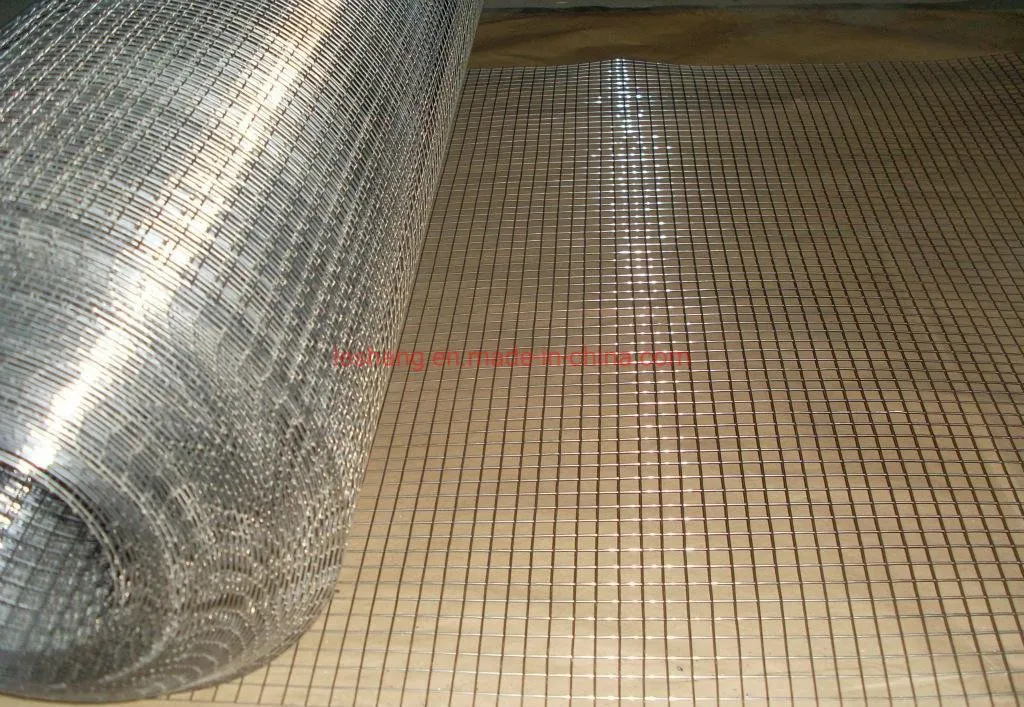

Electro Galvanized Options: Electro galvanized before welding is the most competitive price choice for construction building. Electro galvanized after welding offers better anti-rust properties and is a common commercial building material.

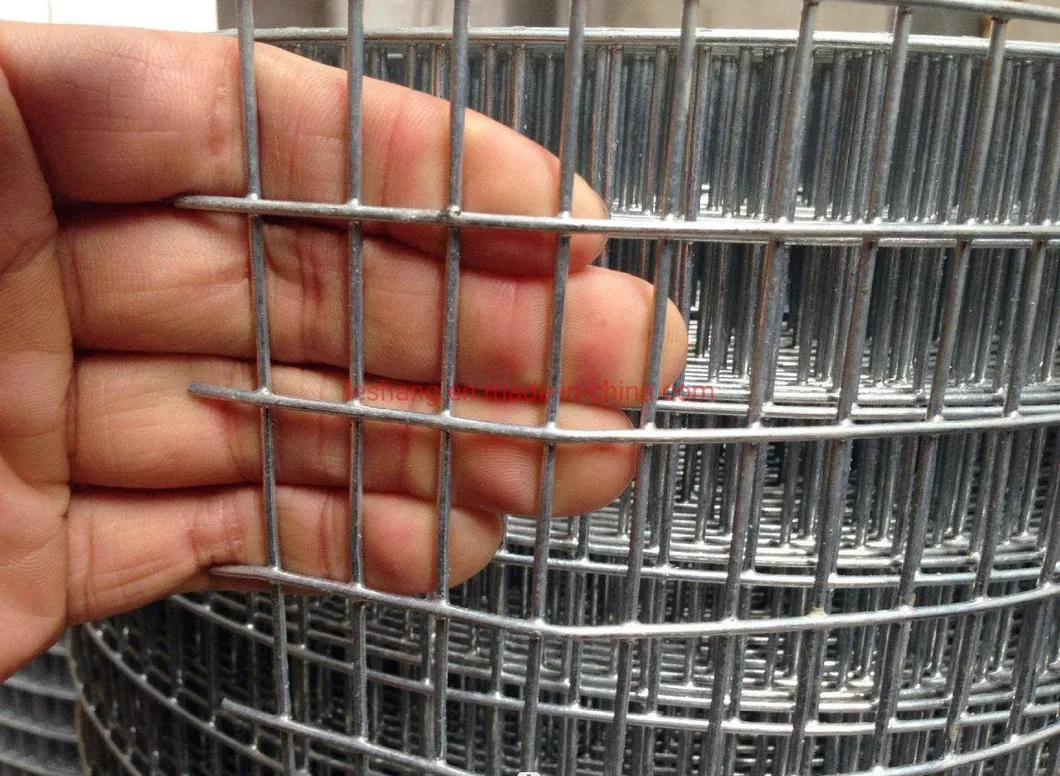

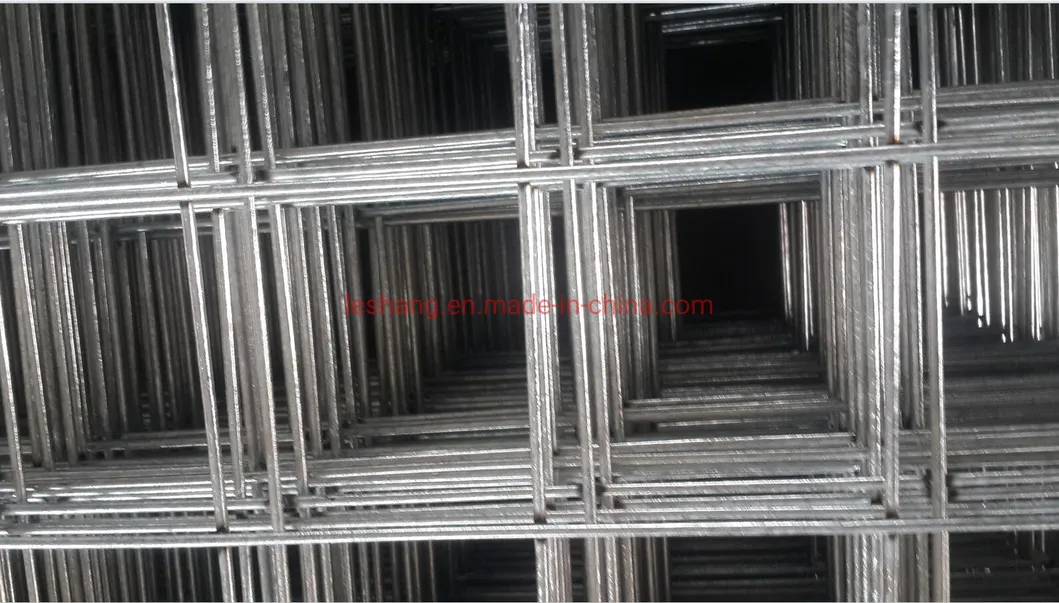

Hot-Dipped Galvanized: This method provides superior anti-rust protection. When galvanized after welding, zinc coating can reach 300g/m2, serving as an excellent alternative to stainless steel.

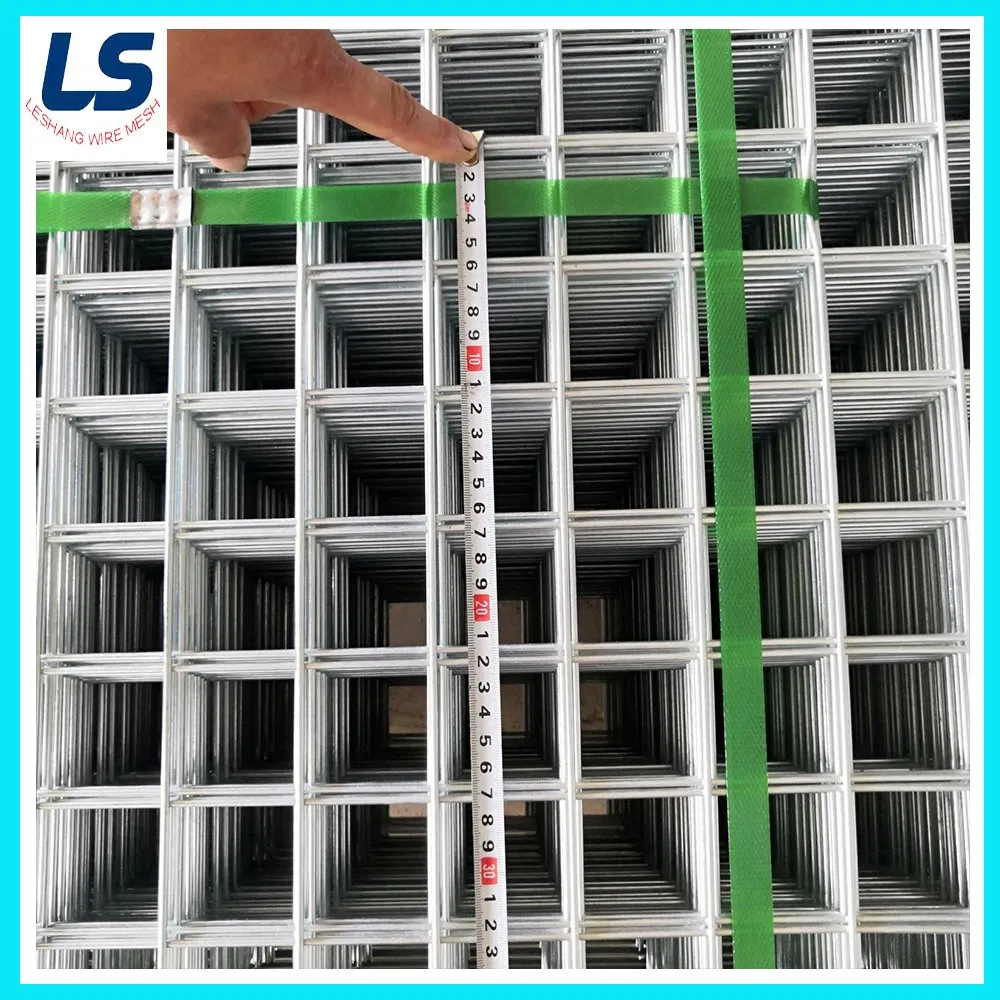

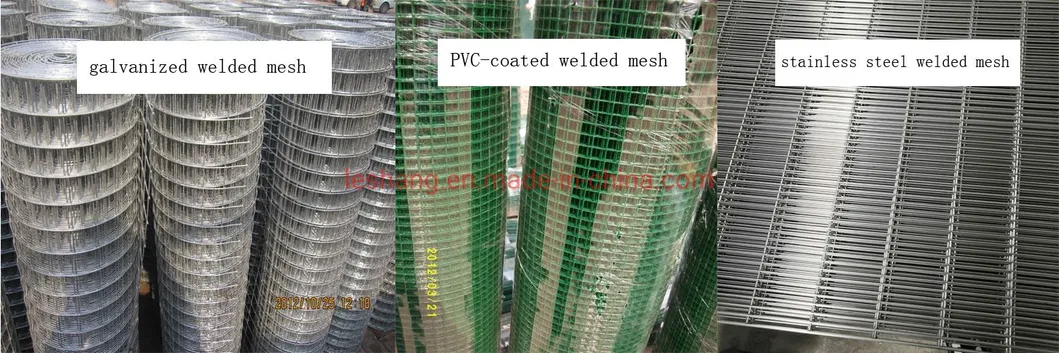

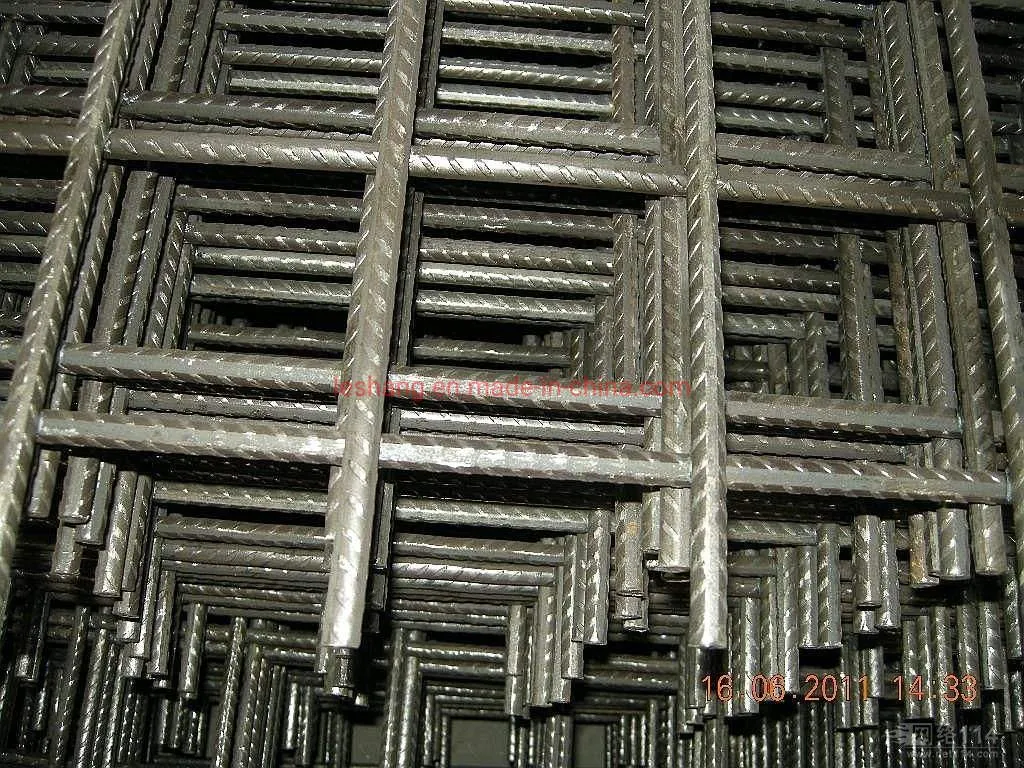

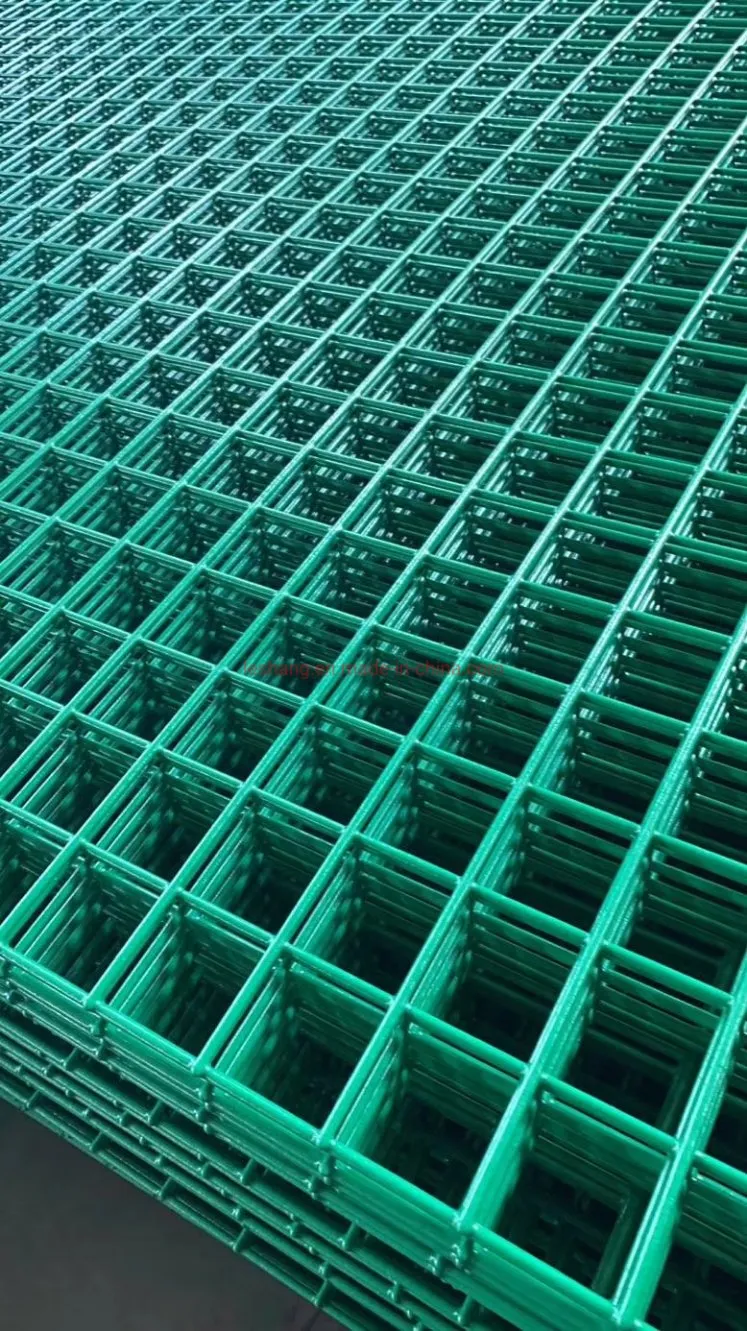

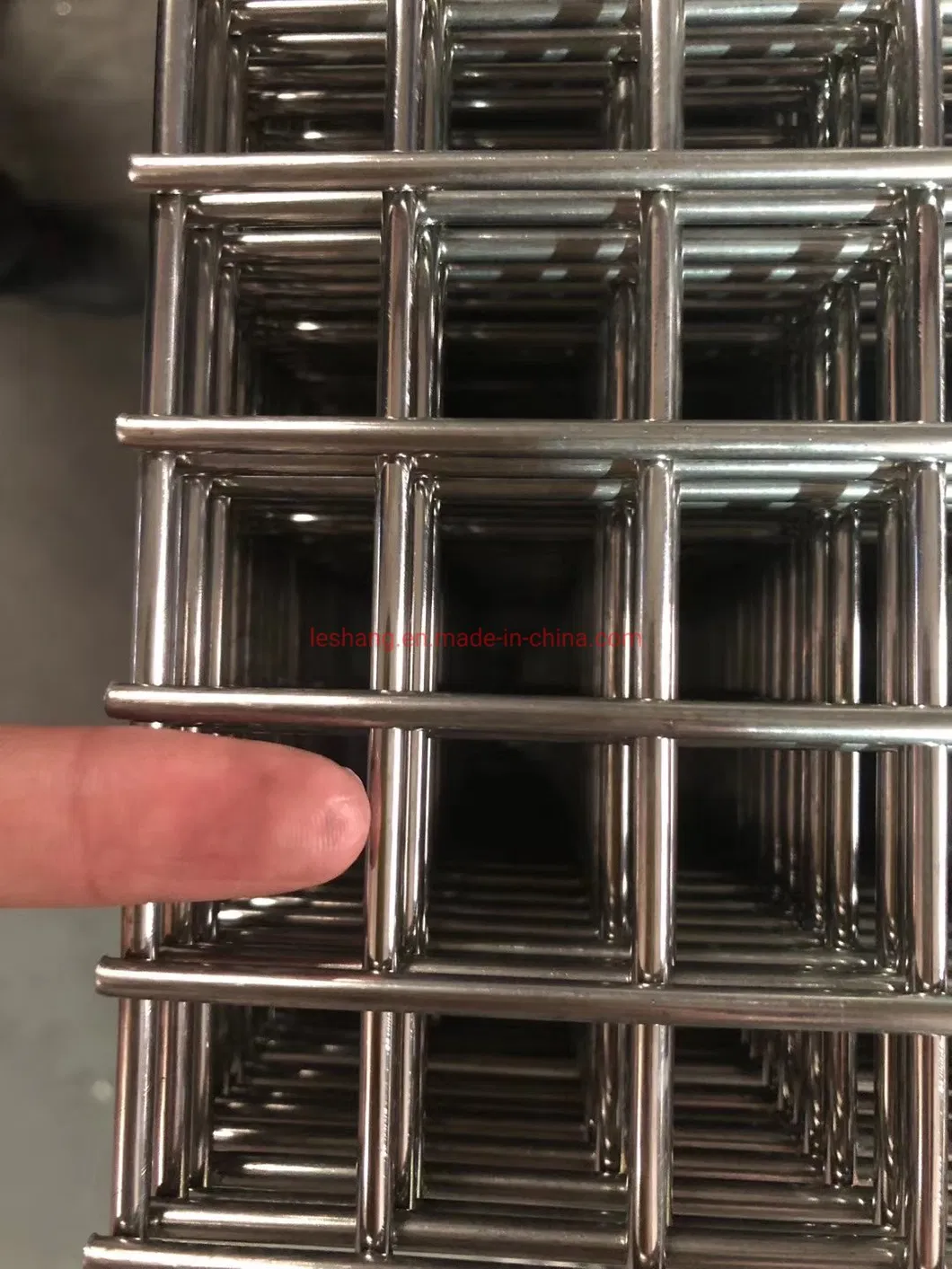

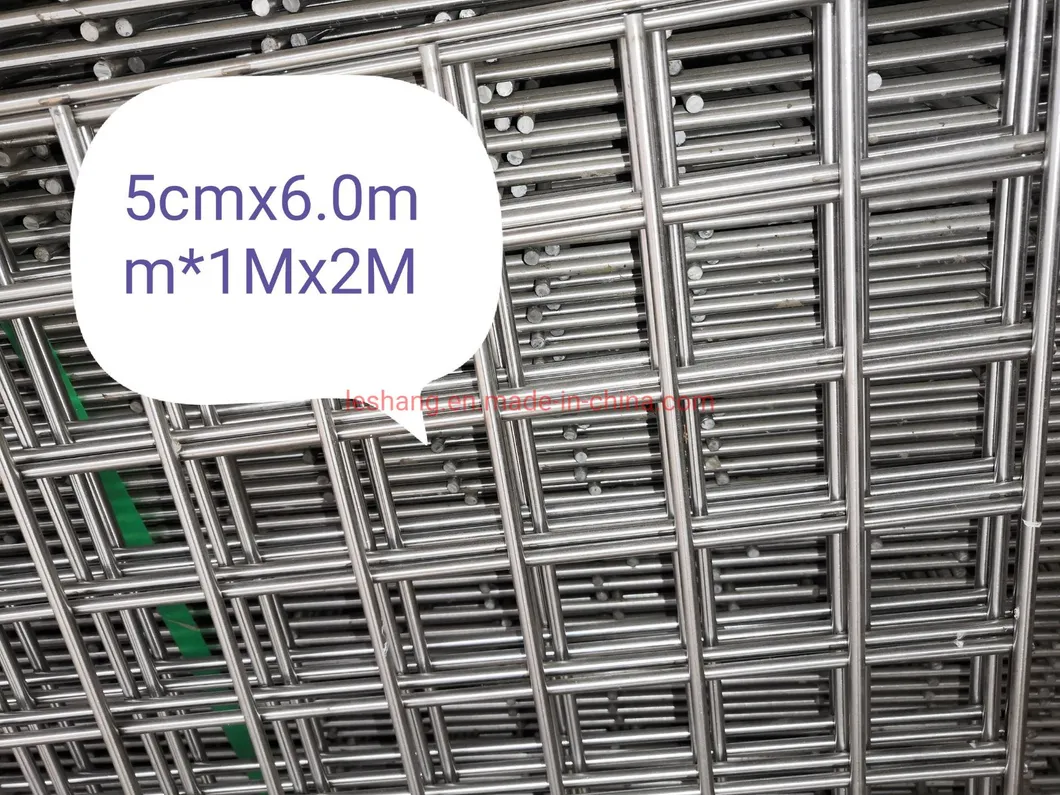

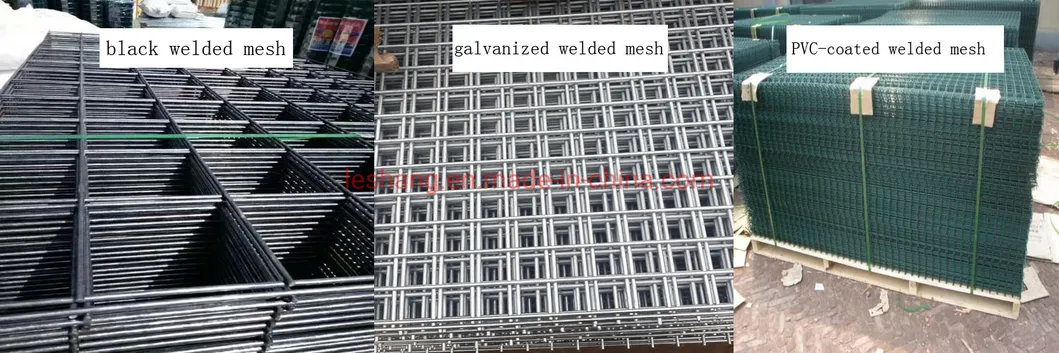

Specialty Meshes: We offer PVC-coated, stainless steel (best for corrosion resistance), and rebar welded wire mesh for heavy-duty applications.

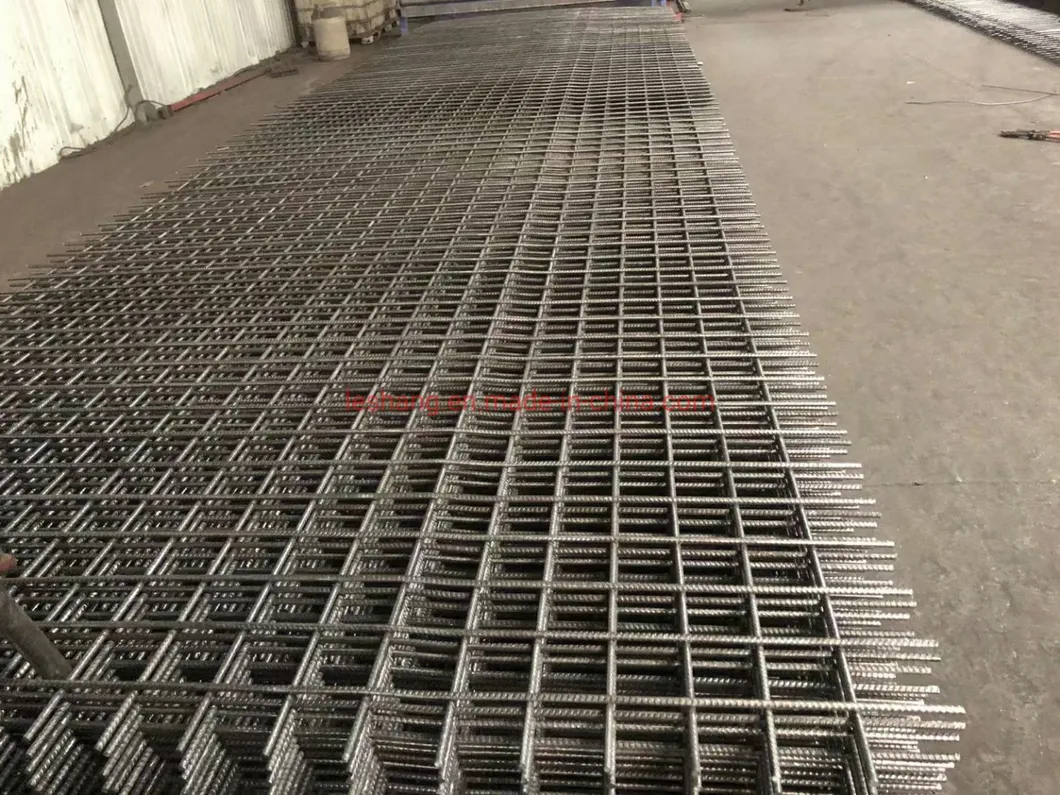

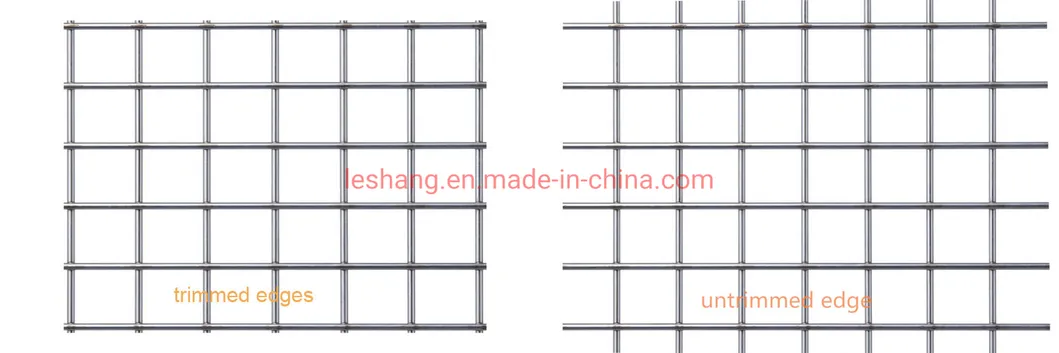

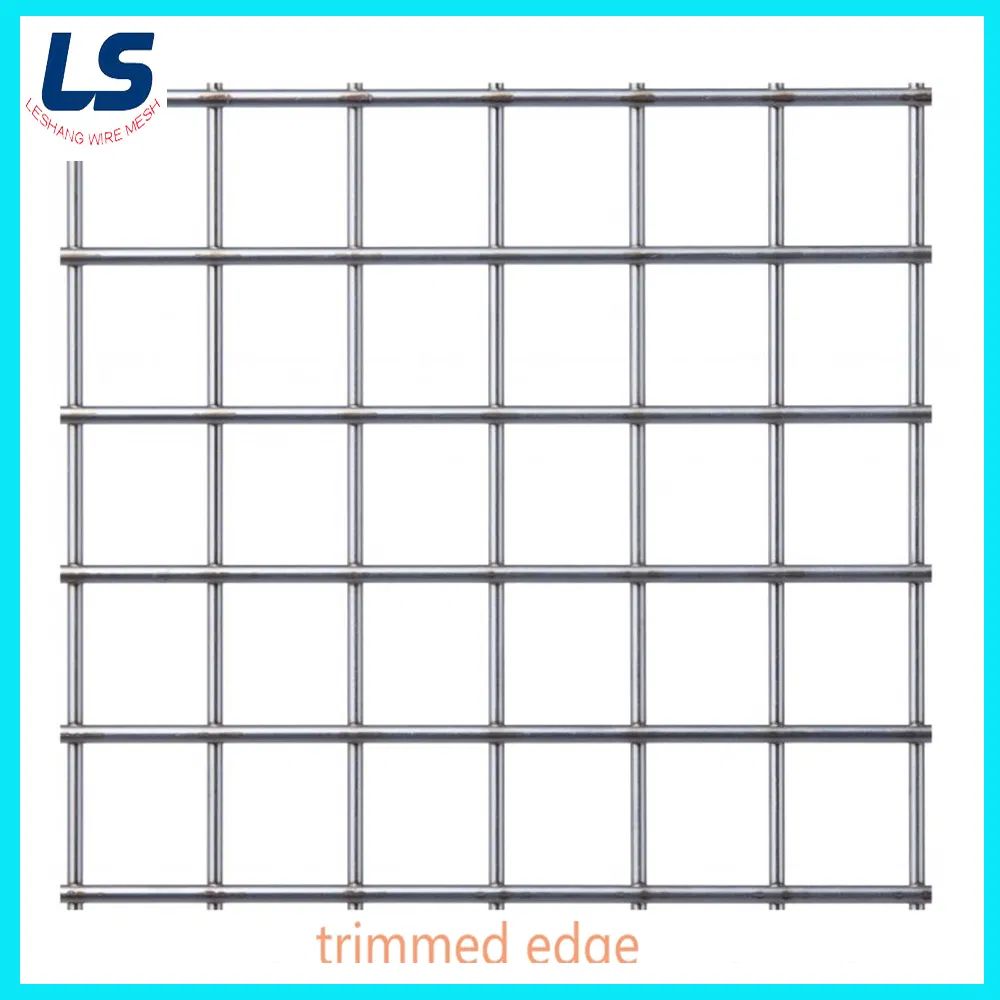

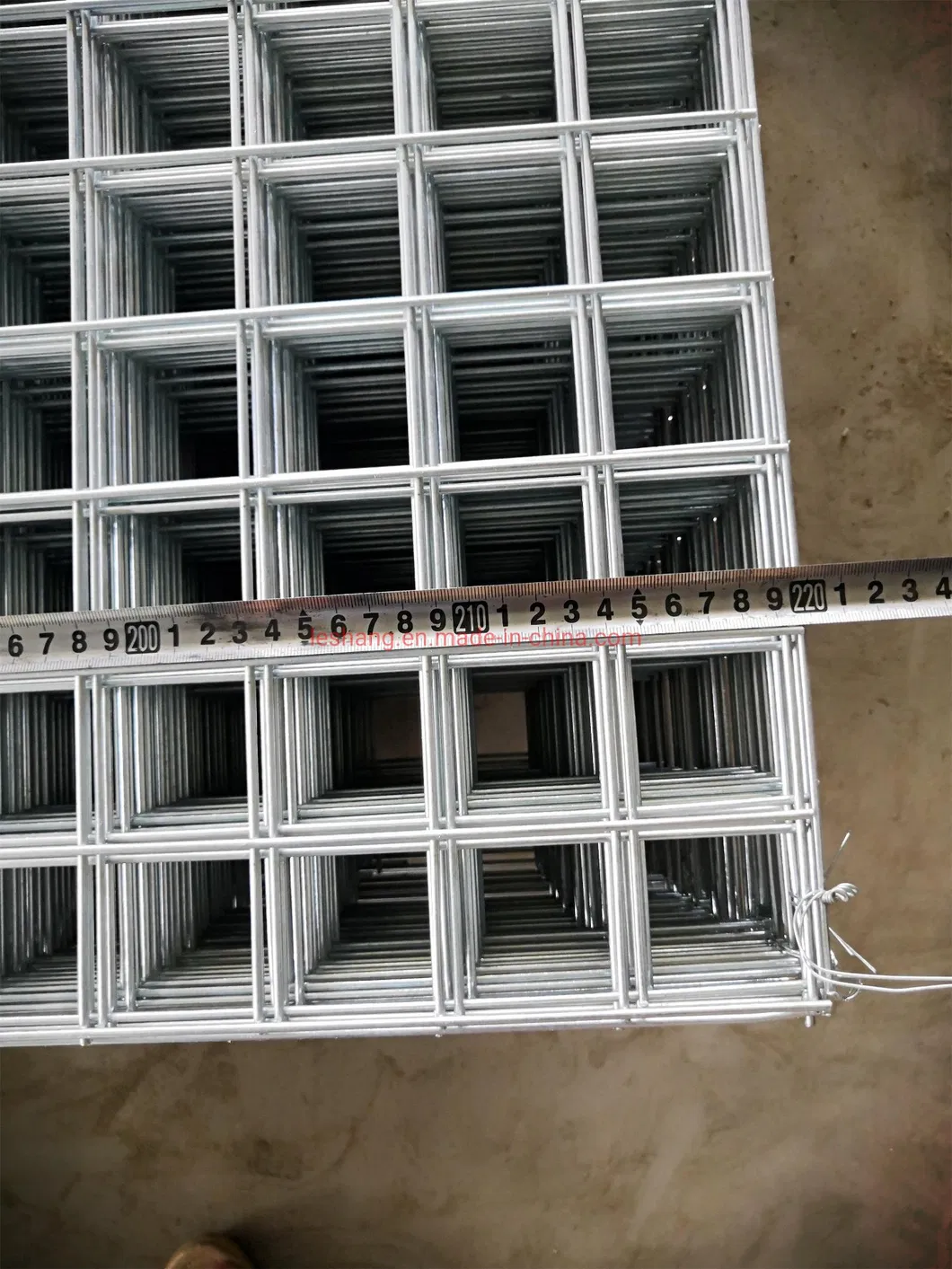

Edge Conditions: Available in trimmed edges for standard sheets and untrimmed edges, usually for heavy-duty mesh.

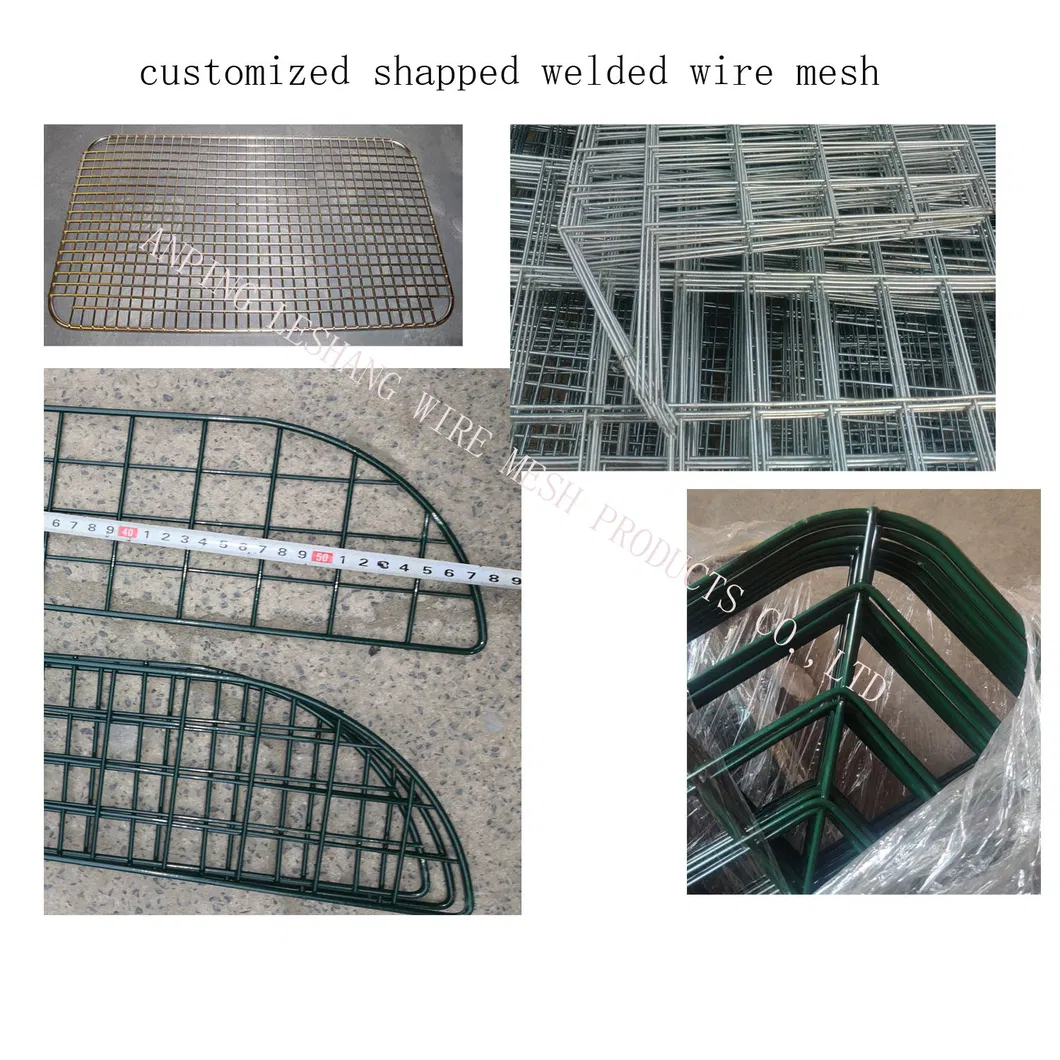

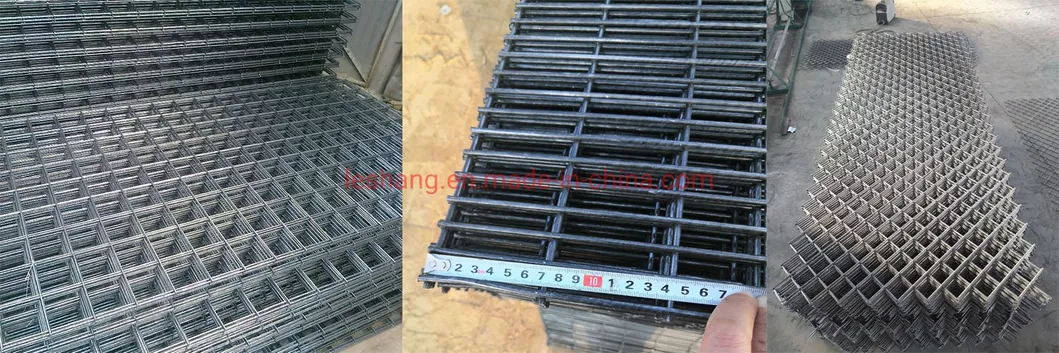

Customization: We provide various hole shapes including square, rectangular, and customized rhombus shapes.

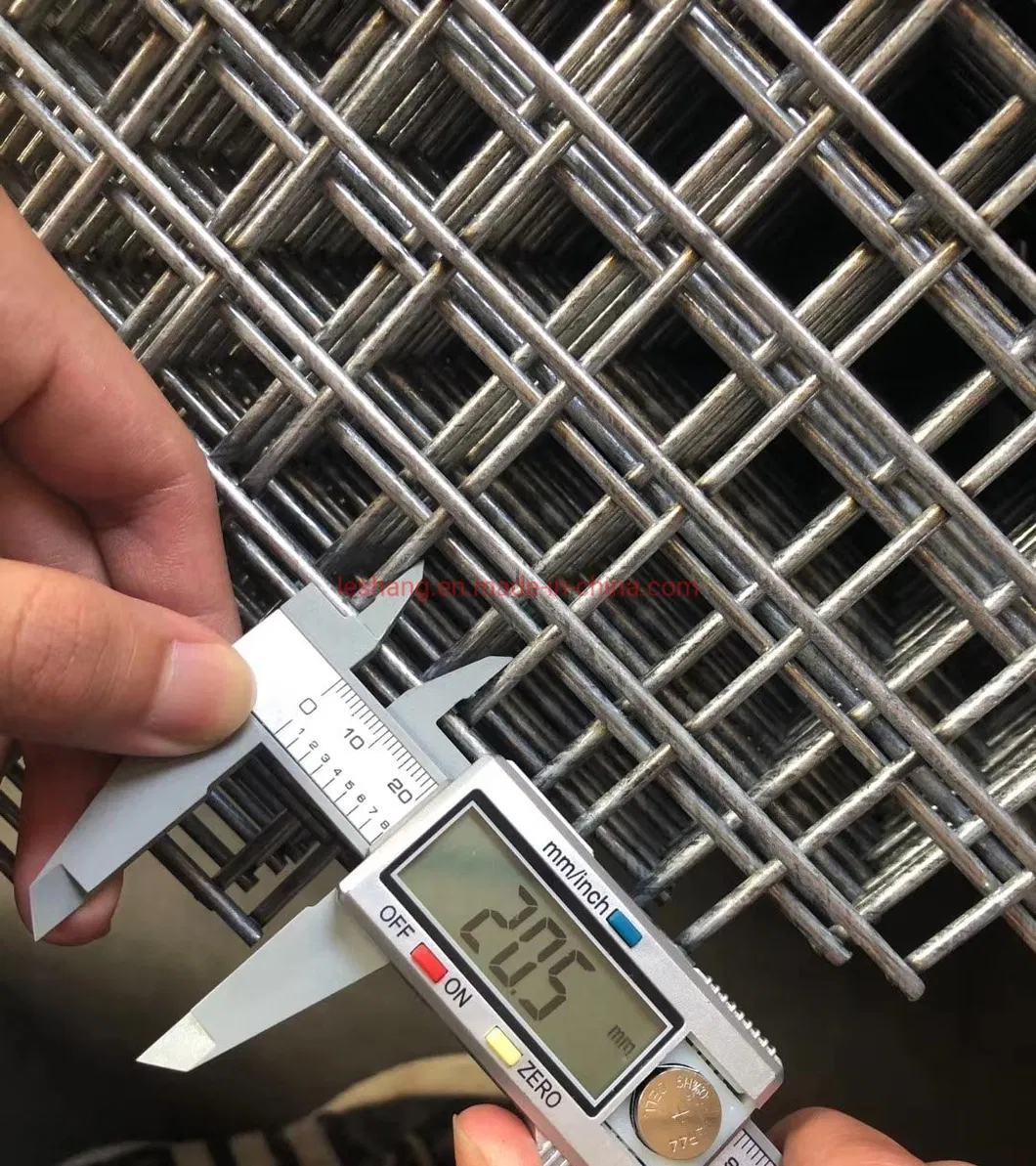

| Hole Size | Wire Diameter | Width | |
|---|---|---|---|
| Inch | mm | ||
| 1/4"X1/4" | 6.4mmX6.4mm | 0.7mm | 0.3-2.5m |
| 1/4"X1/4" | 6.4mmX6.4mm | 1.2mm | 0.3-2.5m |
| 1/4"X1/2" | 6.4mmX12.7mm | 0.9mm | 0.3-2.5m |
| 1/3"X1/3" | 8.5mmX8.5mm | 1.0mm | 0.3-2.5m |
| 1/2"X1/2" | 12.7mmX12.7mm | 0.7mm | 0.3-2.5m |
| 1/2"X1" | 12.7mmX25.4mm | 2.5mm | 0.3-2.5m |
| 1"X1" | 25.4mmX25.4mm | 3.0mm | 0.3-2.5m |
