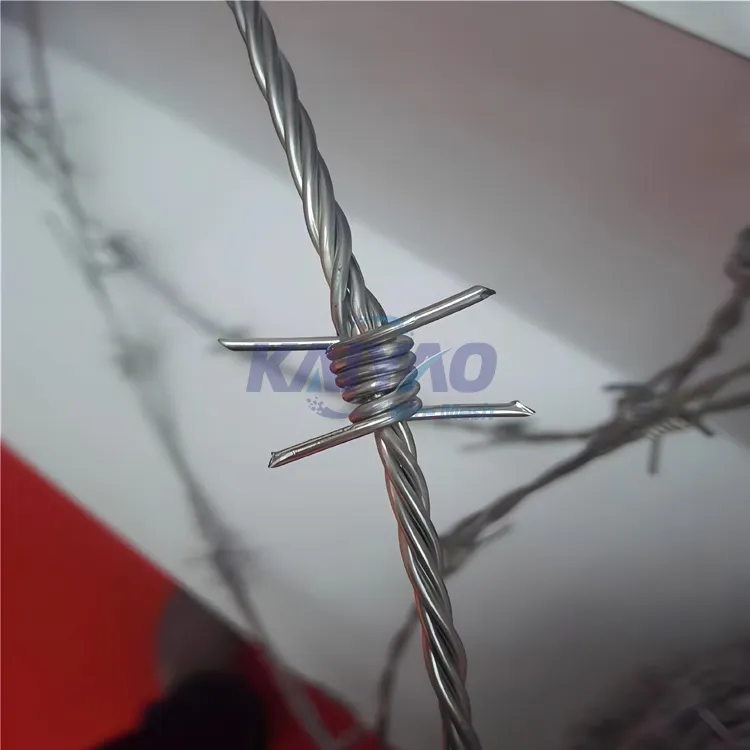

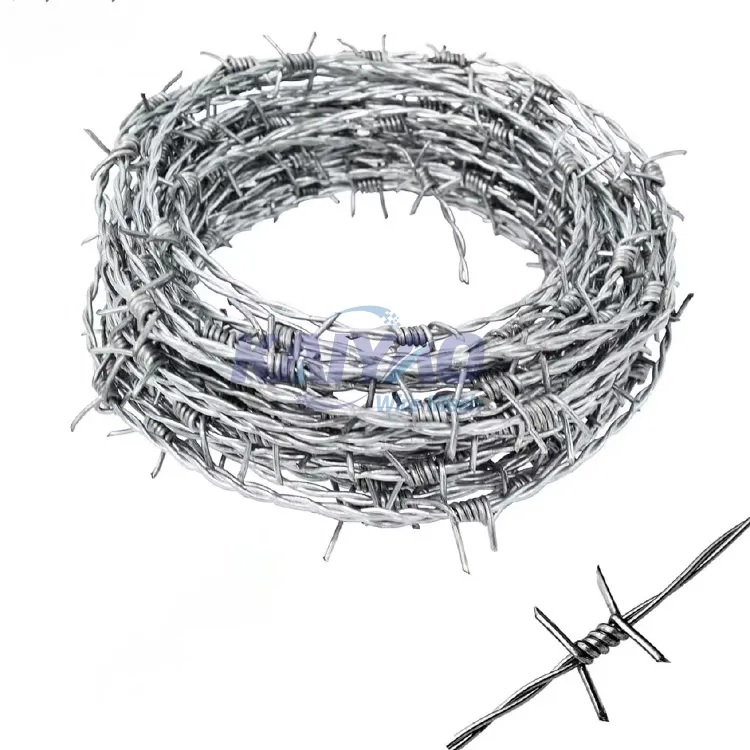

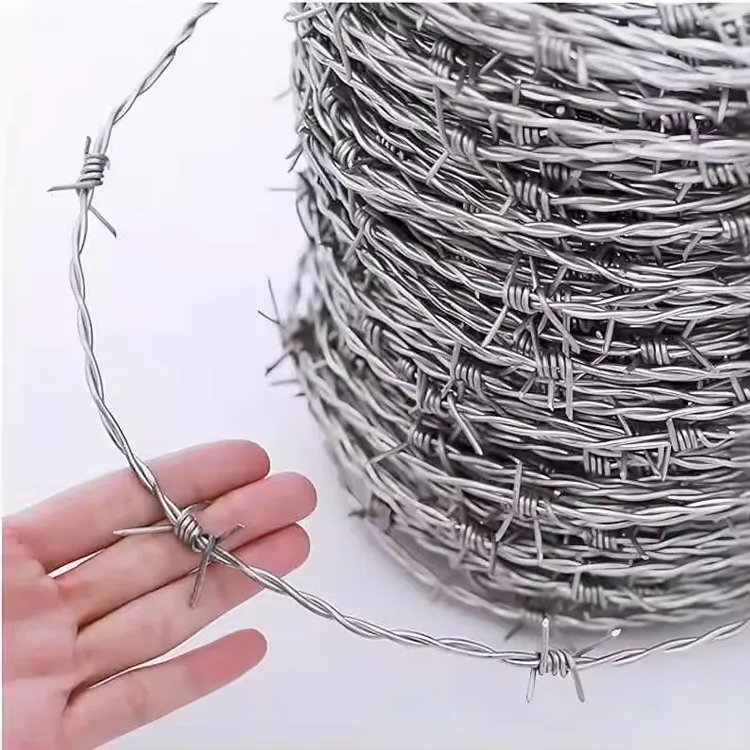

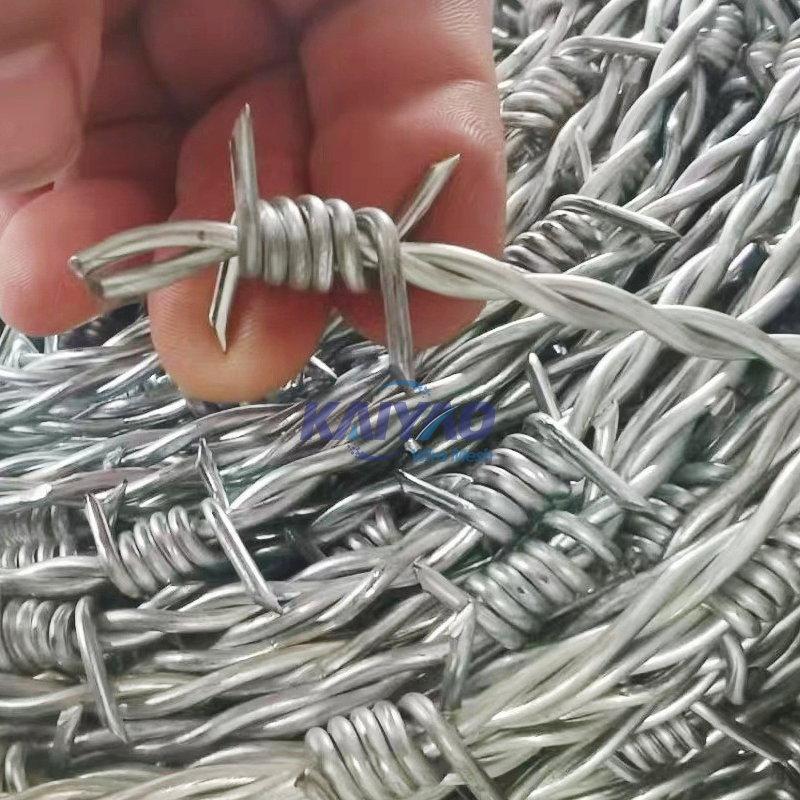

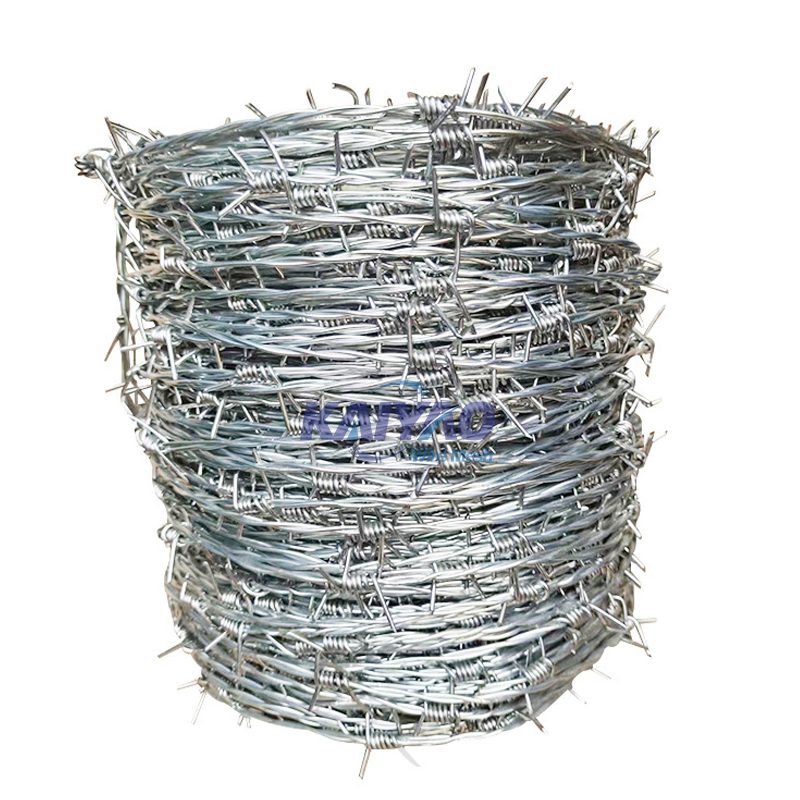

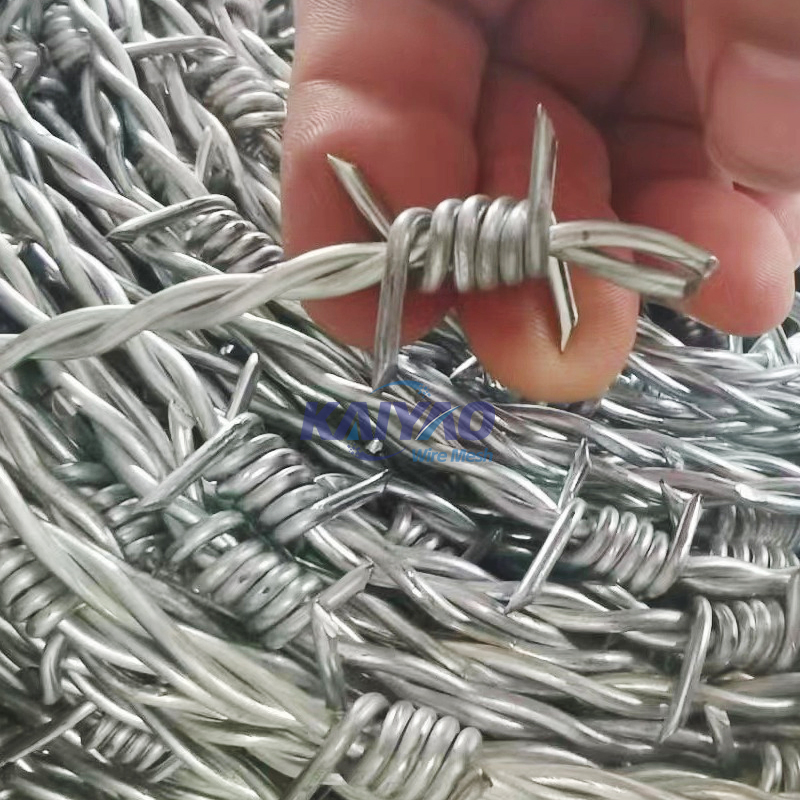

Barbed wire is twisted and knitted by a fully automated machine. It is a high-security isolation protective net formed by winding barbed iron wire on the main wire strand through various weaving processes.

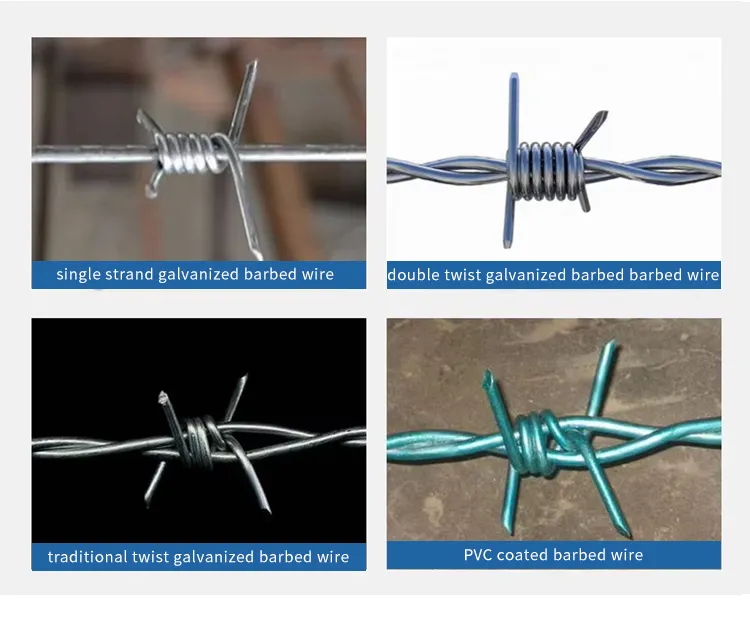

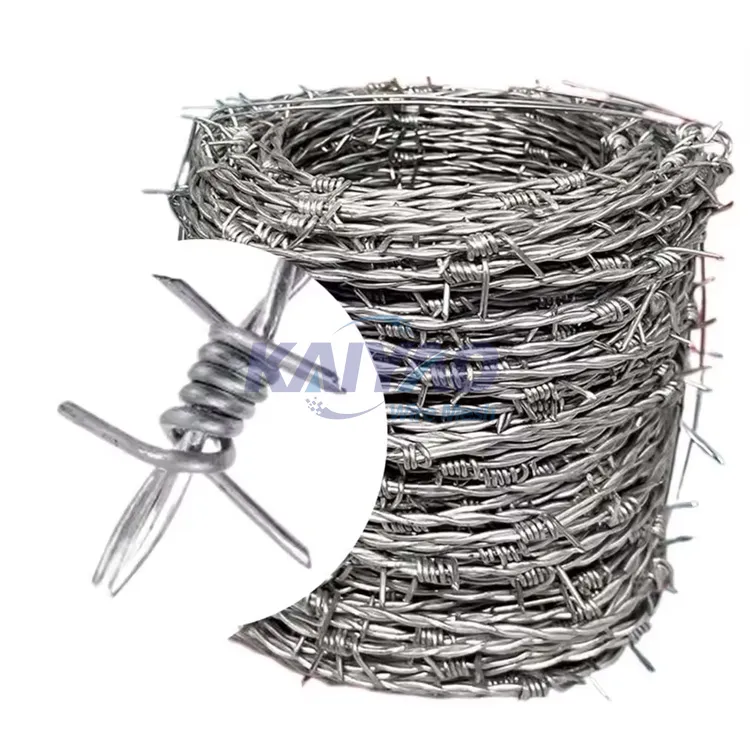

Twisting Methods:
Forward twisting: Twist two or more iron wires into a rope, then wrap the barbed wire around it.
Reverse twisting: Wind the barbed wire around a single main wire first, then add another wire and twist together.
Material: Q195/Q235/Stainless Steel
Surface Treatment: Electro-galvanized / Hot-dipped galvanized / PVC Coated

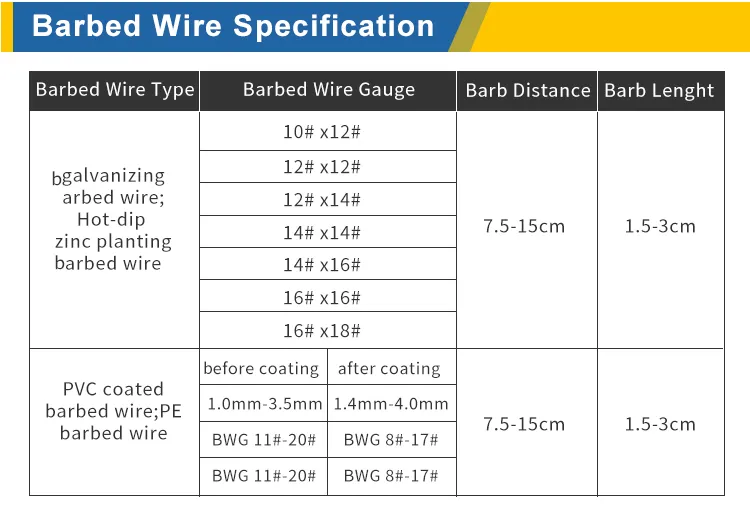

| Gauge | Wire Diameter (mm) | Barbed Spacing 5" (Length m/kg) | Barbed Spacing 6" (Length m/kg) |
|---|---|---|---|
| 12*12 | 2.7*2.7 | 7.2 | 7.6 |
| 12*14 | 2.7*2.1 | 8.3 | 8.5 |
| 12-1/2*12-1/2 | 2.5*2.5 | 8.3 | 8.7 |
| 13*13 | 2.4*2.4 | 9.5 | 10 |
| 14*14 | 2.1*2.1 | 12.5 | 13.1 |
| 15*15 | 1.8*1.8 | 16.6 | 17.5 |
