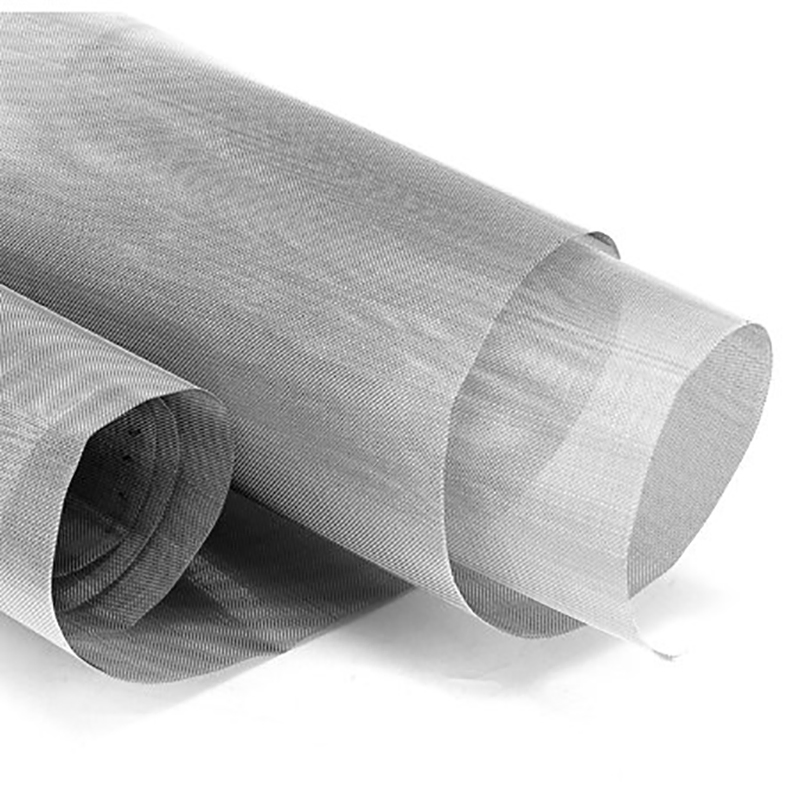

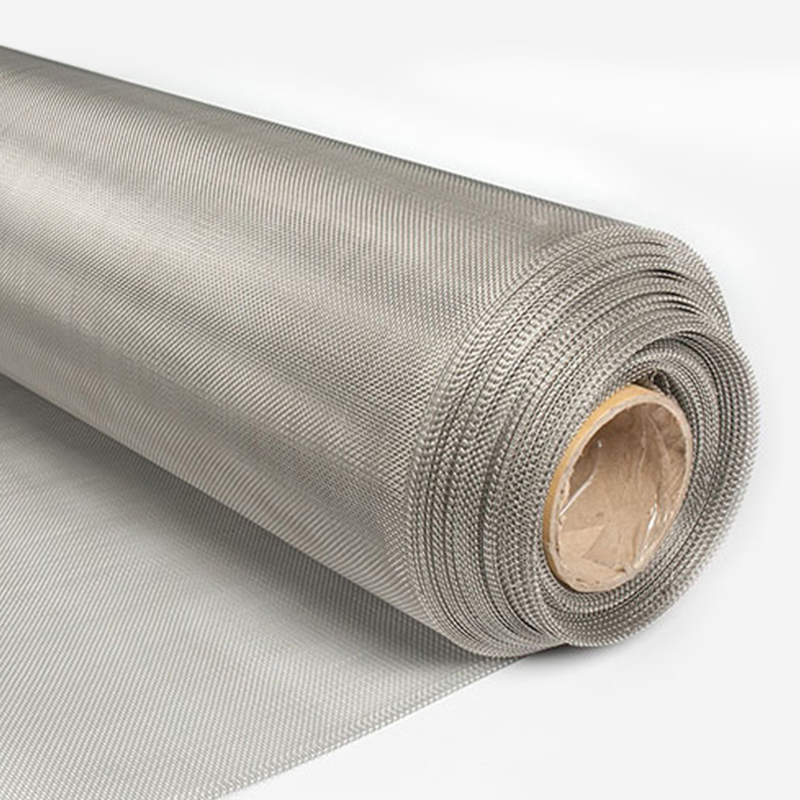

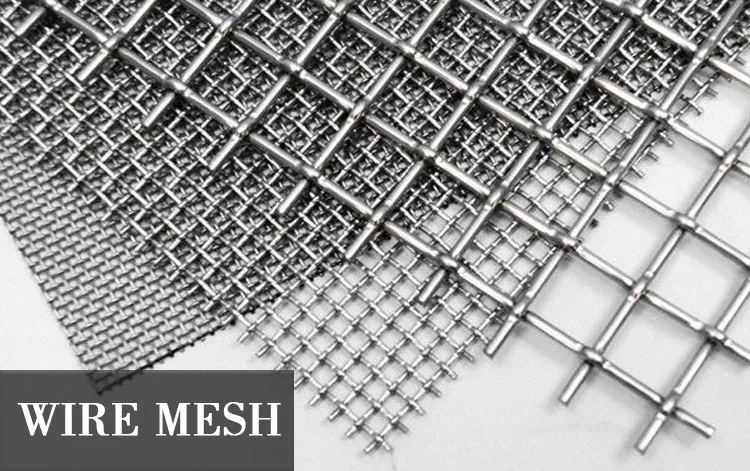

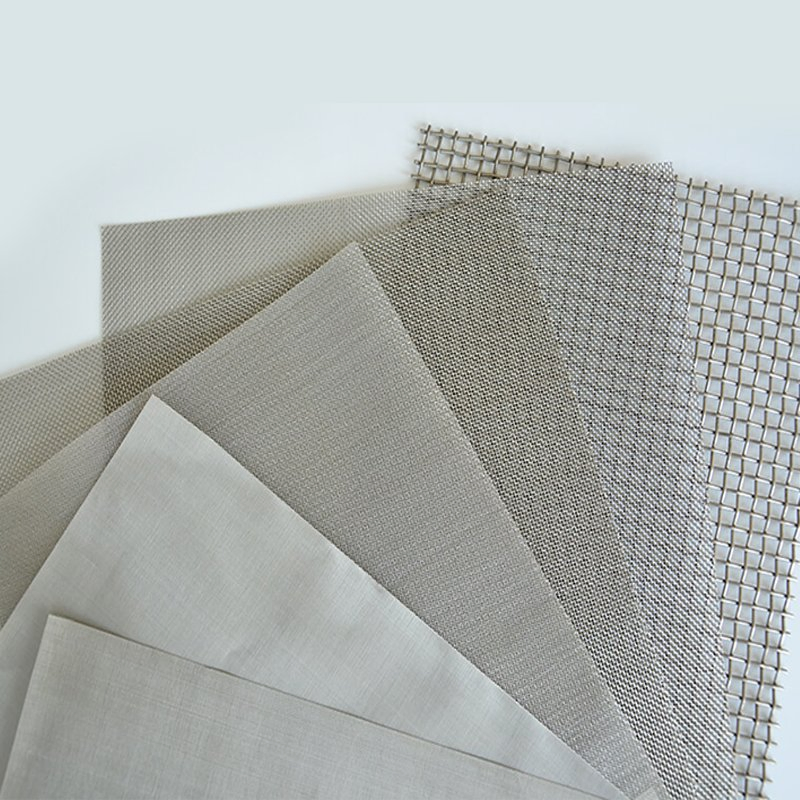

Offering a complete choice of metal wire screen mesh products which include Twill Weave Stainless Steel Wire Mesh, plain weave stainless steel wire mesh, Stainless steel crimped wire mesh, dutch weave stainless steel wire mesh, and stainless steel punching mesh.
| Property | Details |
|---|---|

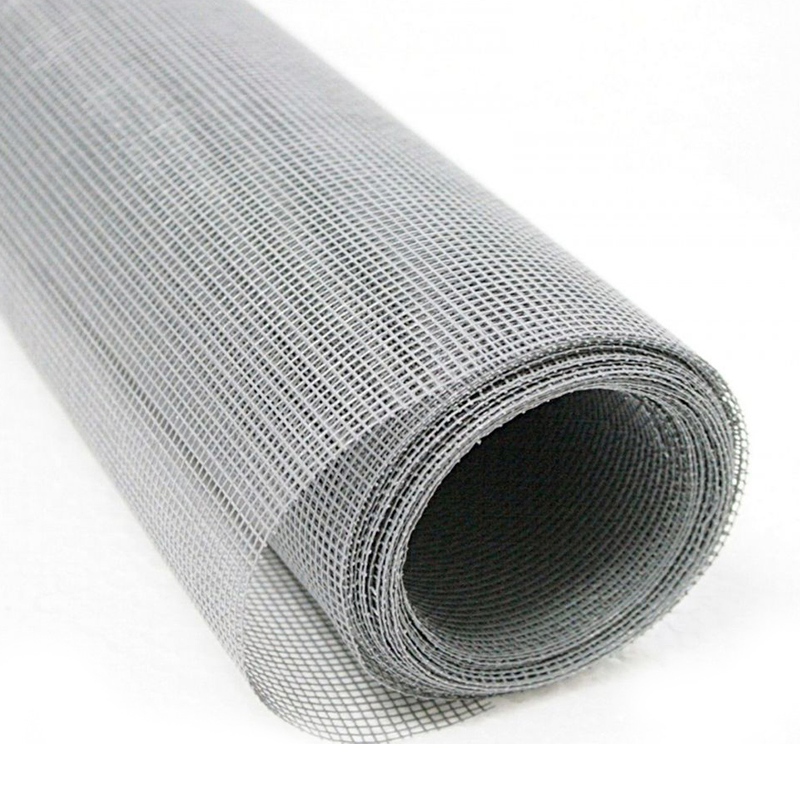

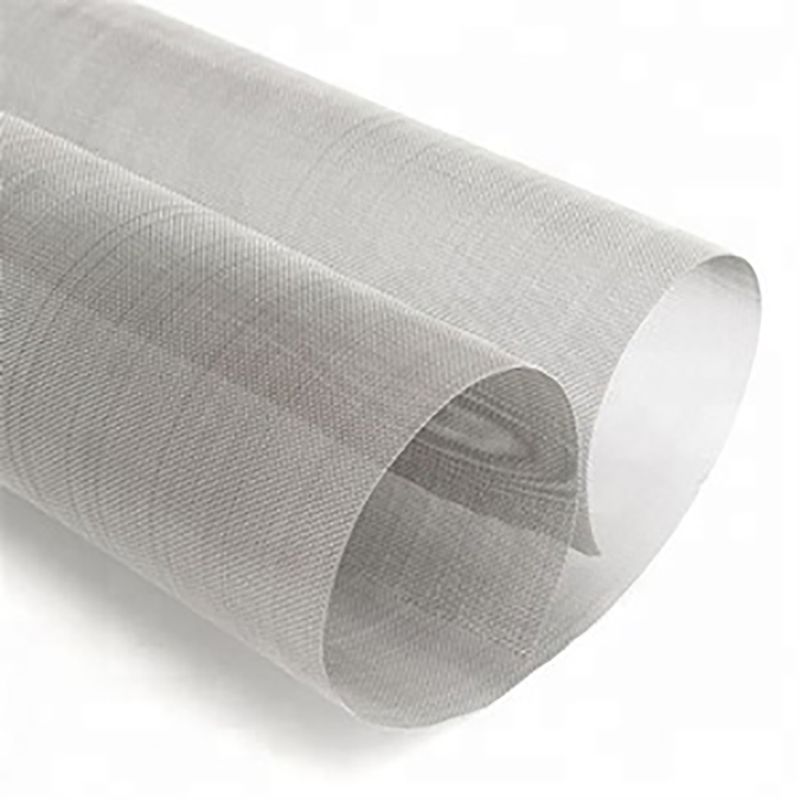

| Name | Stainless steel wire mesh |
| Material | SUS302, 304, 304L, 316, 316L, etc. |
| Specifications | 1×1-635×635 mesh (0.02-23mm) |
| Width | 1 meter, 1.22 meters, customized |
| Roll Length | 30 meters, customized |

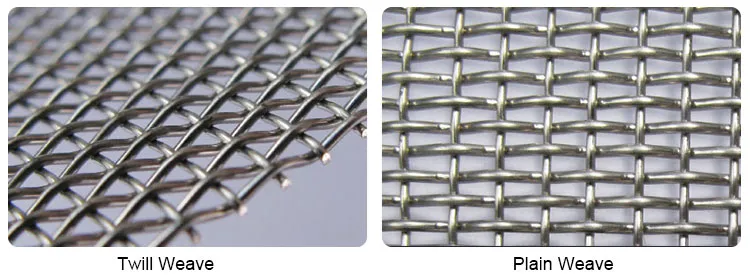

| Weaving method | Twill weave; Plain weave |
| Mesh/Inch | Wire Diameter (Inch/MM) | Aperture (Inch/MM) | Open Area % |
|---|---|---|---|
| 1 * 1 | 0.08 / 2.03 | 0.92 / 23.37 | 84.6 |
| 2 * 2 | 0.063 / 1.6 | 0.437 / 11.1 | 76.4 |
| 5 * 5 | 0.041 / 1.04 | 0.159 / 4.04 | 63.2 |
| 10 * 10 | 0.025 / 0.64 | 0.075 / 1.91 | 56.3 |
| 20 * 20 | 0.016 / 0.406 | 0.034 / 0.86 | 46.2 |
| 50 * 50 | 0.009 / 0.229 | 0.011 / 0.28 | 30.3 |
| 100 * 100 | 0.0045 / 0.114 | 0.0055 / 0.14 | 30.3 |
| 200 * 200 | 0.0021 / 0.0533 | 0.0029 / 0.0737 | 33.6 |
| 400 * 400 | 0.001 / 0.0254 | 0.0015 / 0.37 | 36 |
Remark: The above data are theoretical; please reference the actual data if it differs.

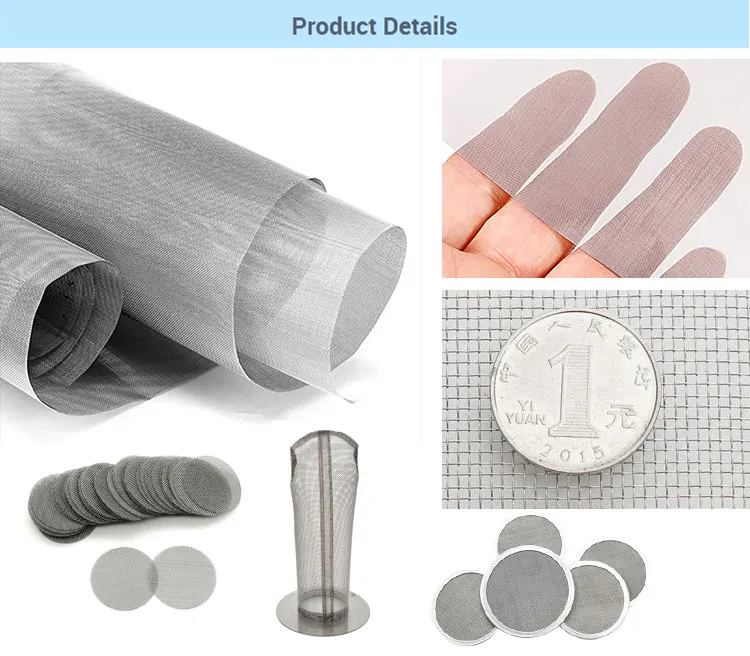

High-quality raw materials ensure the mesh is not easily deformed during use.
Designed for high pressure resistance and large working strength requirements.
Single layer filter material characteristics make it ideal for backwashing.
Capable of withstanding high temperatures up to approximately 480°C.
Stainless steel materials offer superior corrosion and wear resistance.
Excellent performance in cutting, bending, stretching, and welding procedures.
Stainless steel filter screen features heat resistance, acid resistance, and abrasion resistance. It is widely used in industries including:
DHL, UPS, FEDEX. Door-to-door service, usually 5-10 days.
Delivery to the airport, usually 5-10 days to arrive.
Delivery to the sea port, usually 15-30 days to arrive.
