| Item | Details |
|---|---|

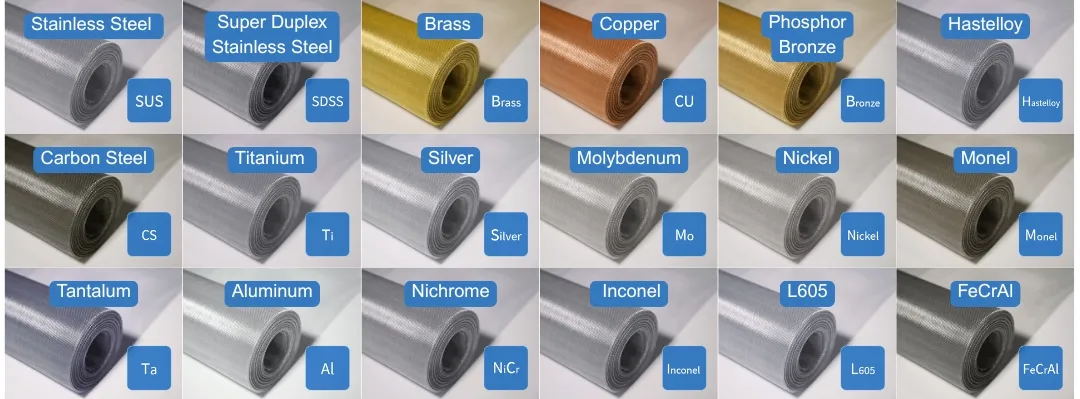

| Material | 304 / 316 / 316L Stainless Steel / other |

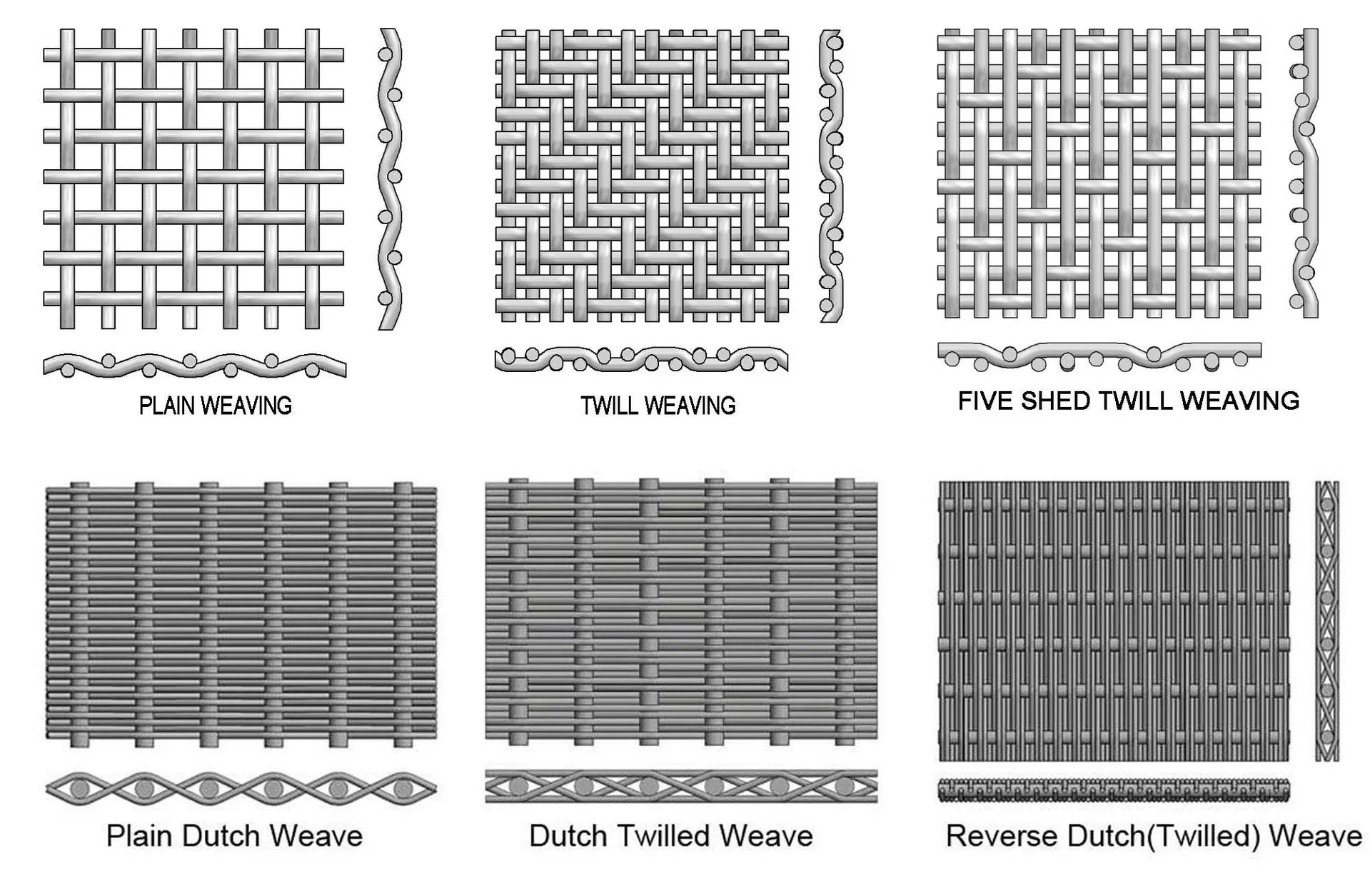

| Weave Type | Plain Weave |
| Mesh Size | 1x1 to 635x635 (Customizable) |
| Wire Diameter | 0.016mm - 5mm |
| Surface Treatment | Epoxy Coating / PTFE Coating / Ultrasonic cleaning |
| Temperature Resistance | Up to 800°C (1472°F) |

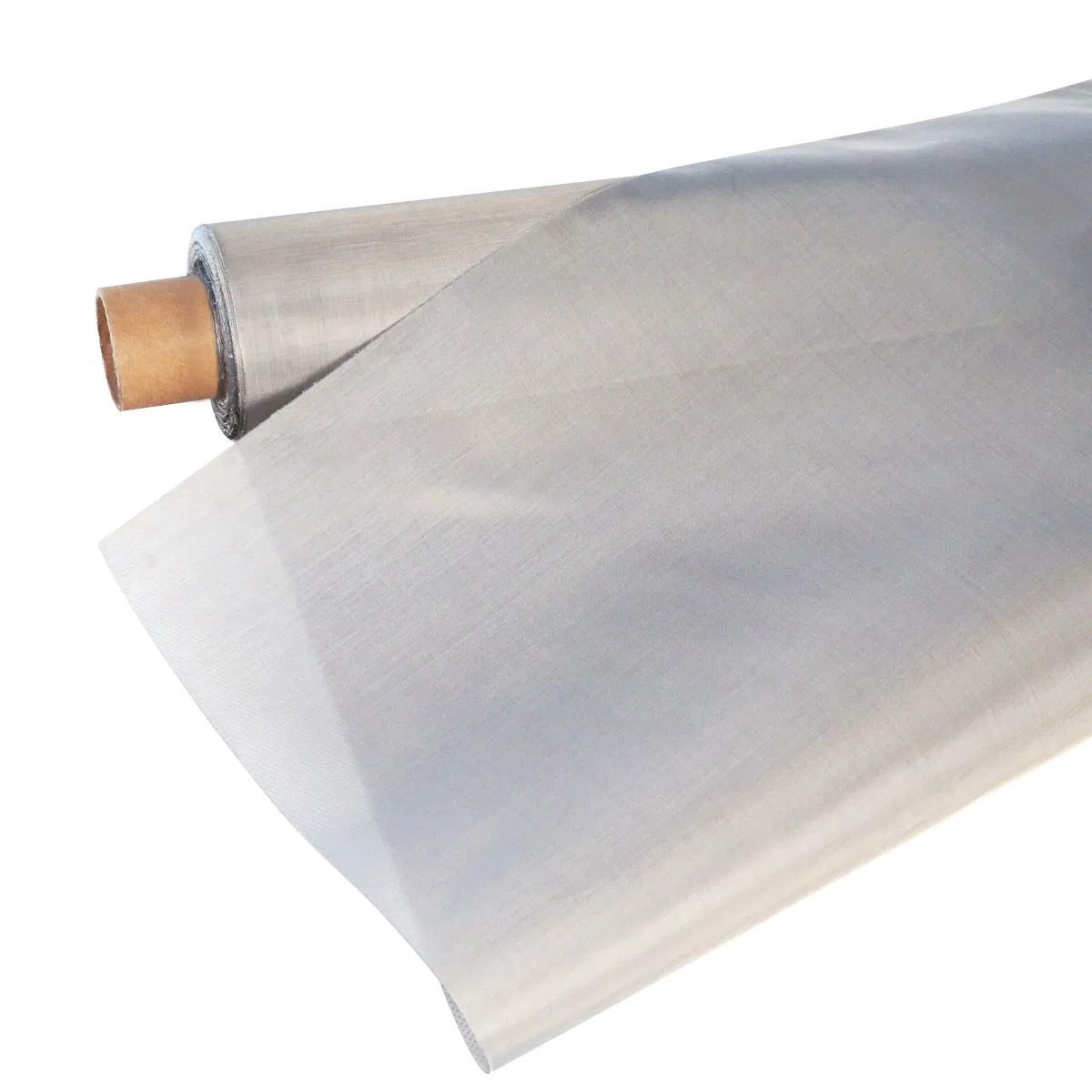

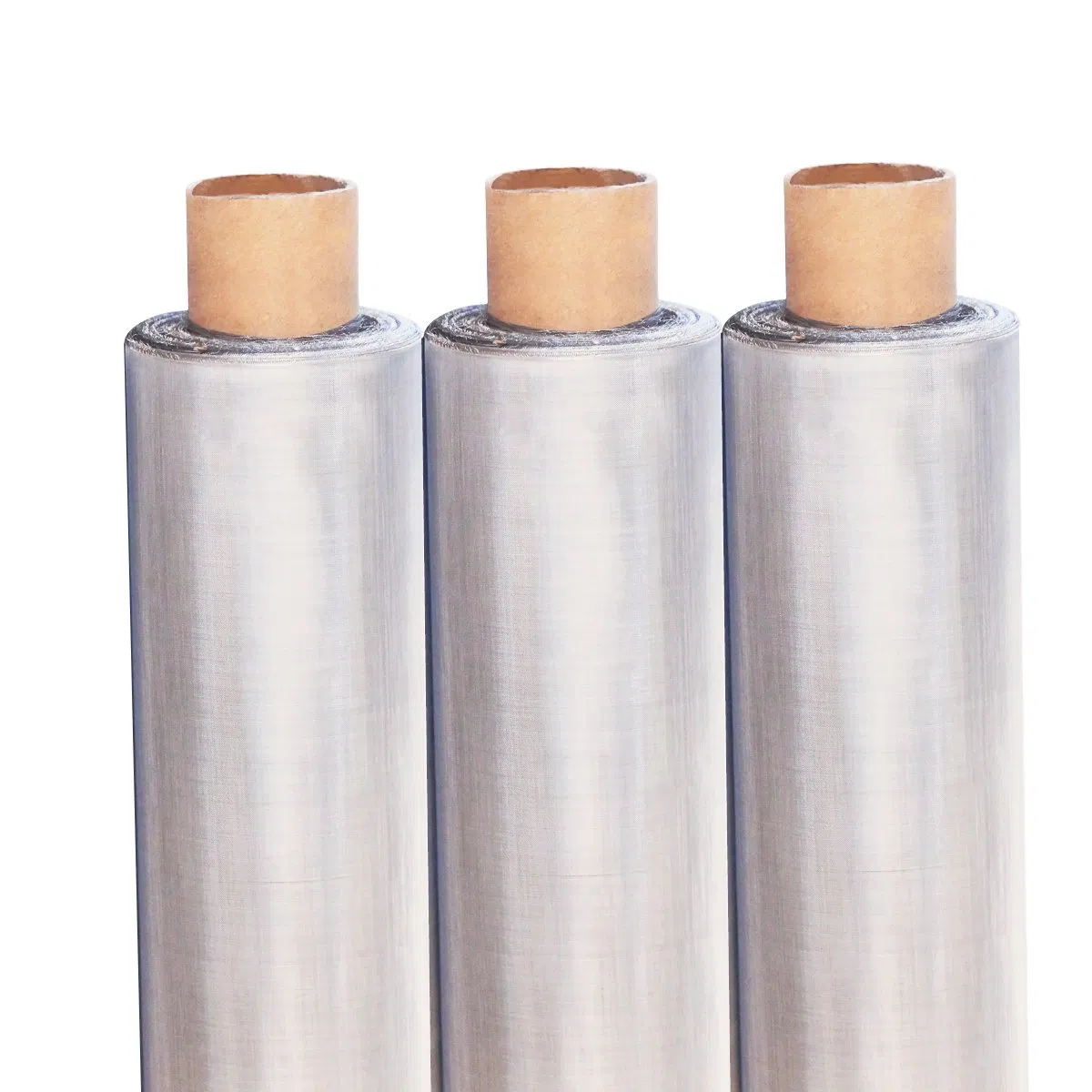

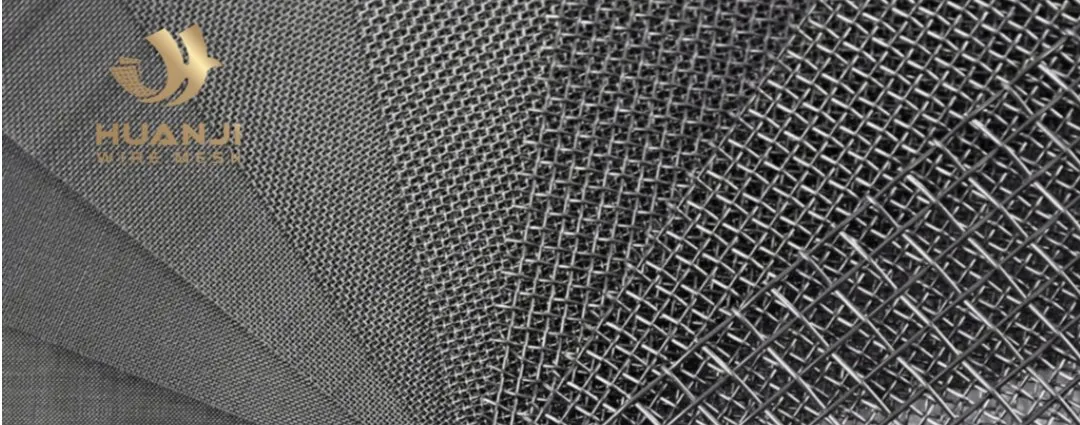

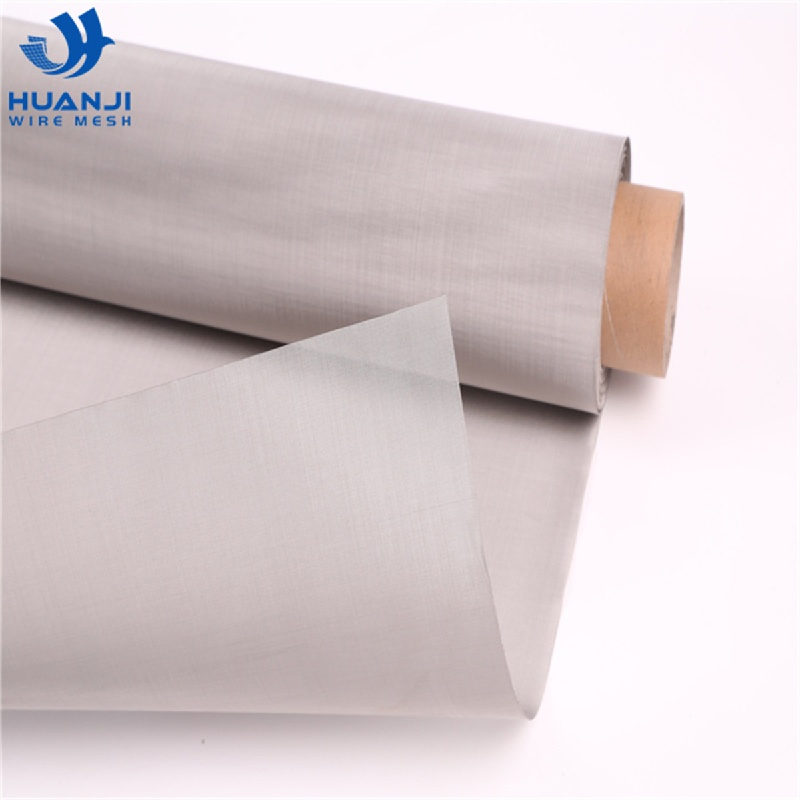

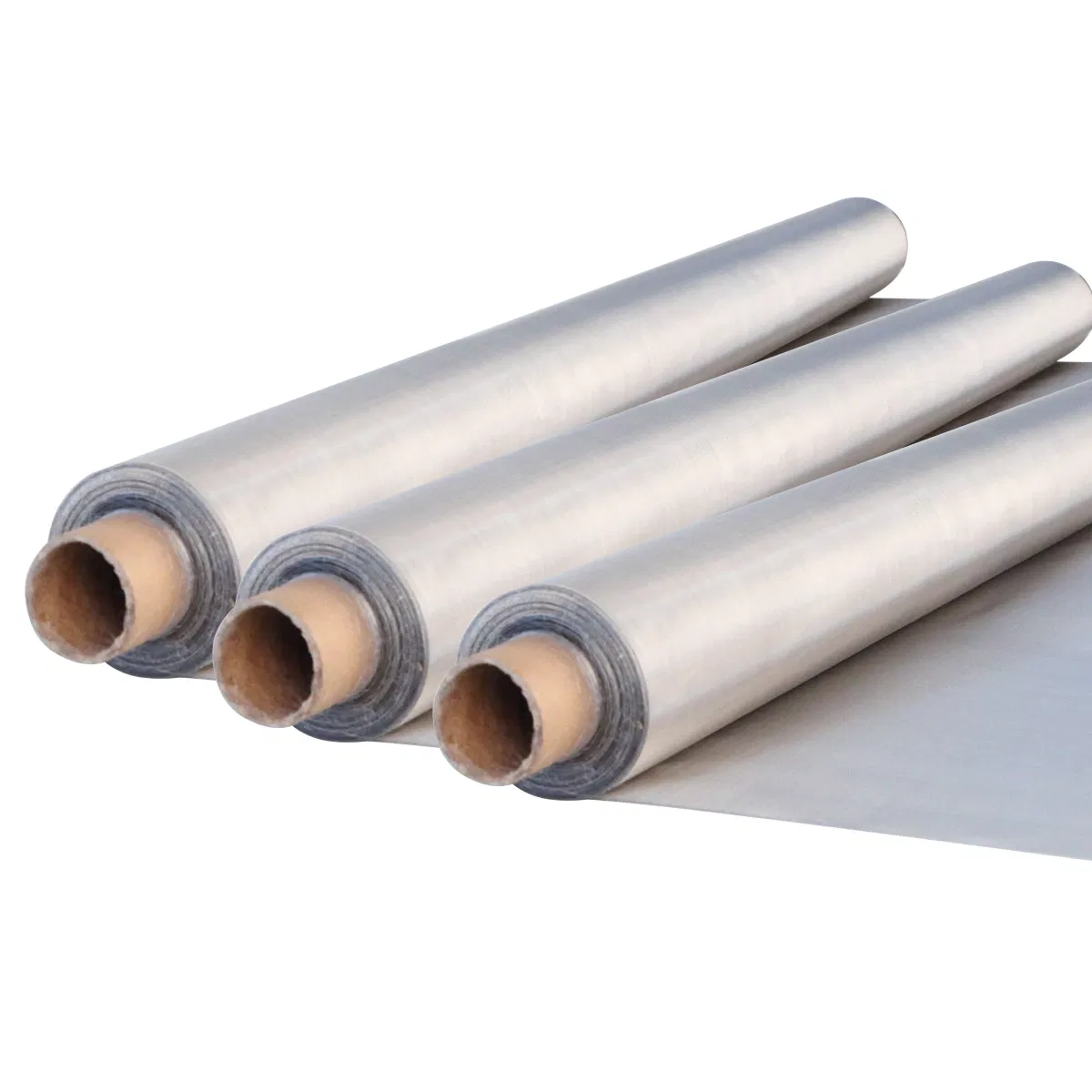

Plain Weave Mesh is one of the most common metal woven meshes. With high precision mechanical equipment and cutting-edge weaving technology, our plain weave mesh features uniform mesh opening size and good permeability. It is widely used in manufacturing mesh screens, filter elements, filter discs, and more. Metallic wires with excellent corrosion and wear resistance are adopted to extend service life and improve performance.

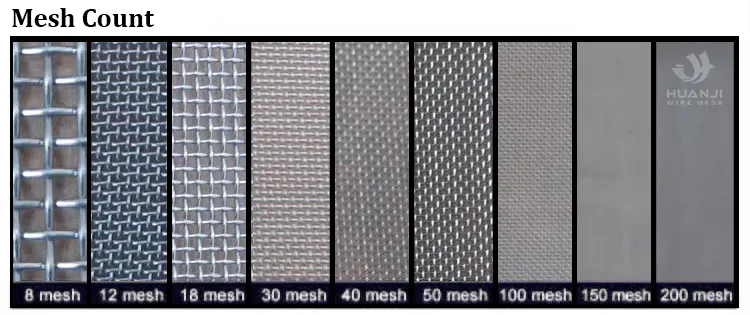

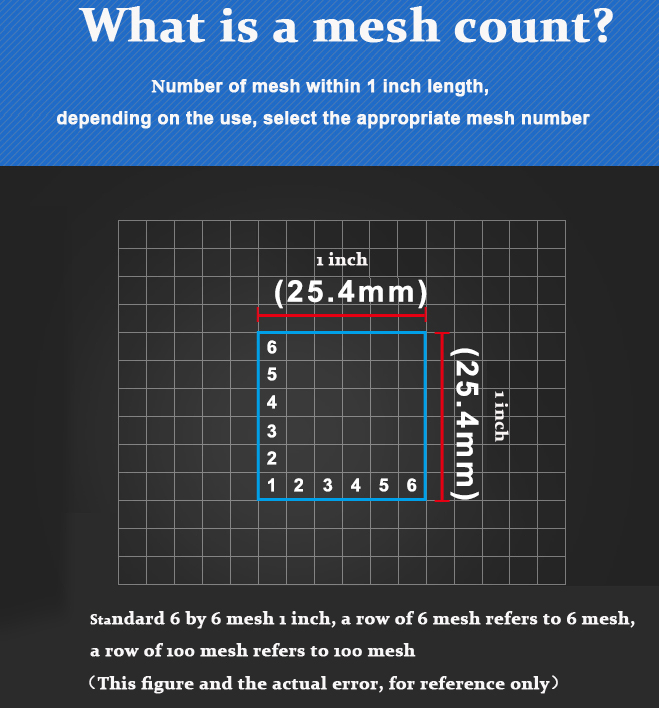

| Model | Mesh Count | Wire Dia (mm) | Opening (mm) | Open Area % |
|---|---|---|---|---|
| HJ-0185 | 1x1 | 2.030 | 23.37 | 85 |
| HJ-0456 | 4x4 | 1.600 | 4.75 | 56 |
| HJ-1056 | 10x10 | 0.640 | 1.91 | 56 |
| HJ-4036 | 40x40 | 0.254 | 0.38 | 36 |
| HJ-10037 | 100x100 | 0.100 | 0.154 | 37 |
| HJ-40028 | 400x400 | 0.030 | 0.0335 | 28 |
| HJ-63525 | 635x635 | 0.020 | 0.0200 | 25 |
*Additional types are available upon request. Please contact us for specific opening sizes.
Our stainless steel woven mesh is suitable for: Filter, Construction, Protecting Mesh, Screens, Decorative Mesh, Fences, Barbecue Mesh, and Window Curtains.

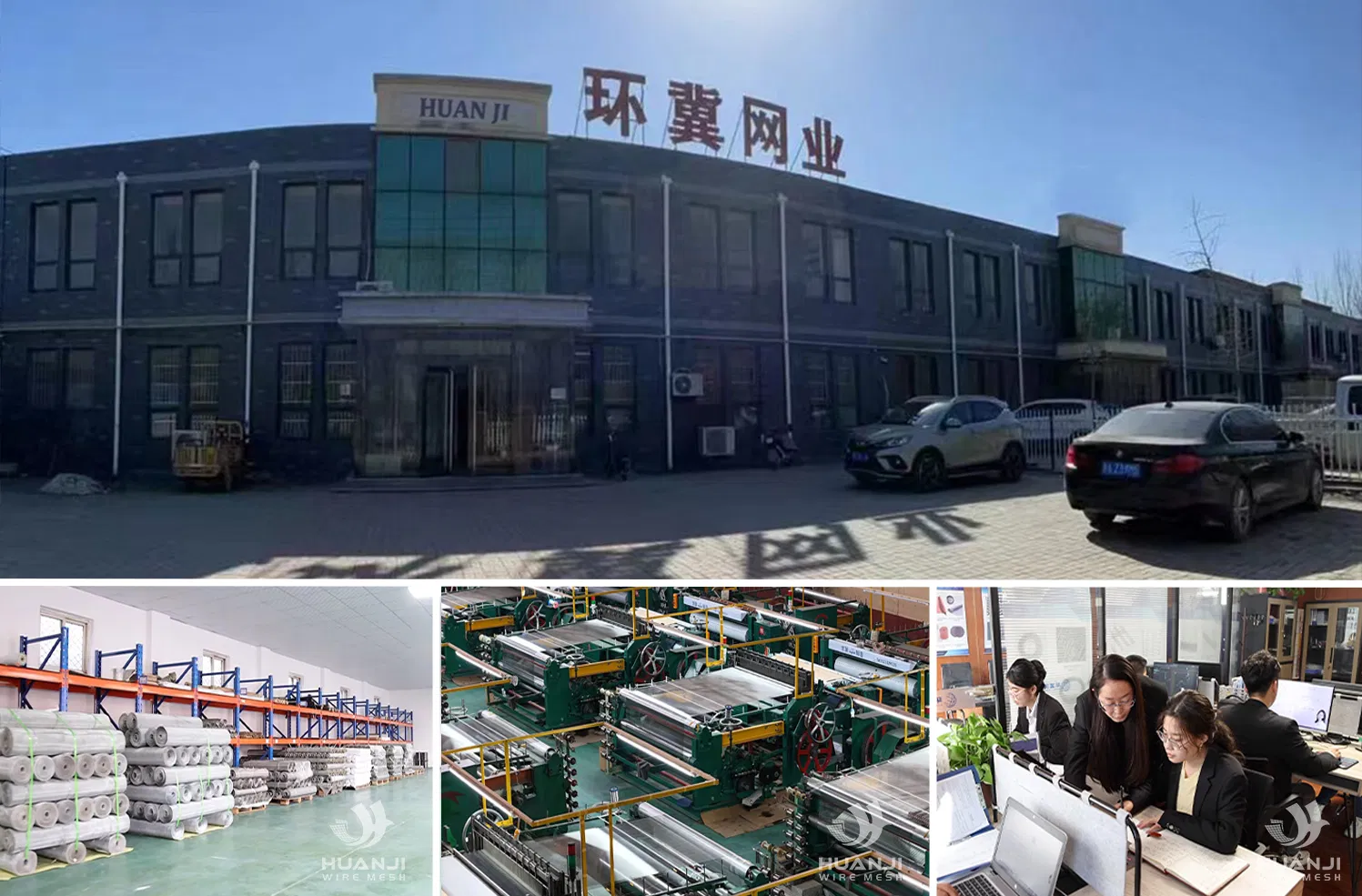

Established in 1999, our enterprise has developed into a leading modern science and technology entity focused on the production, development, and sales of stainless steel wire mesh. We operate 6 mature production lines supported by a 42-person R&D team and a dedicated inspection department to ensure strict quality control.
Utilizing high-quality raw materials and a clean production environment, we provide stable supply capabilities and reliable delivery to contribute to global economic construction.
