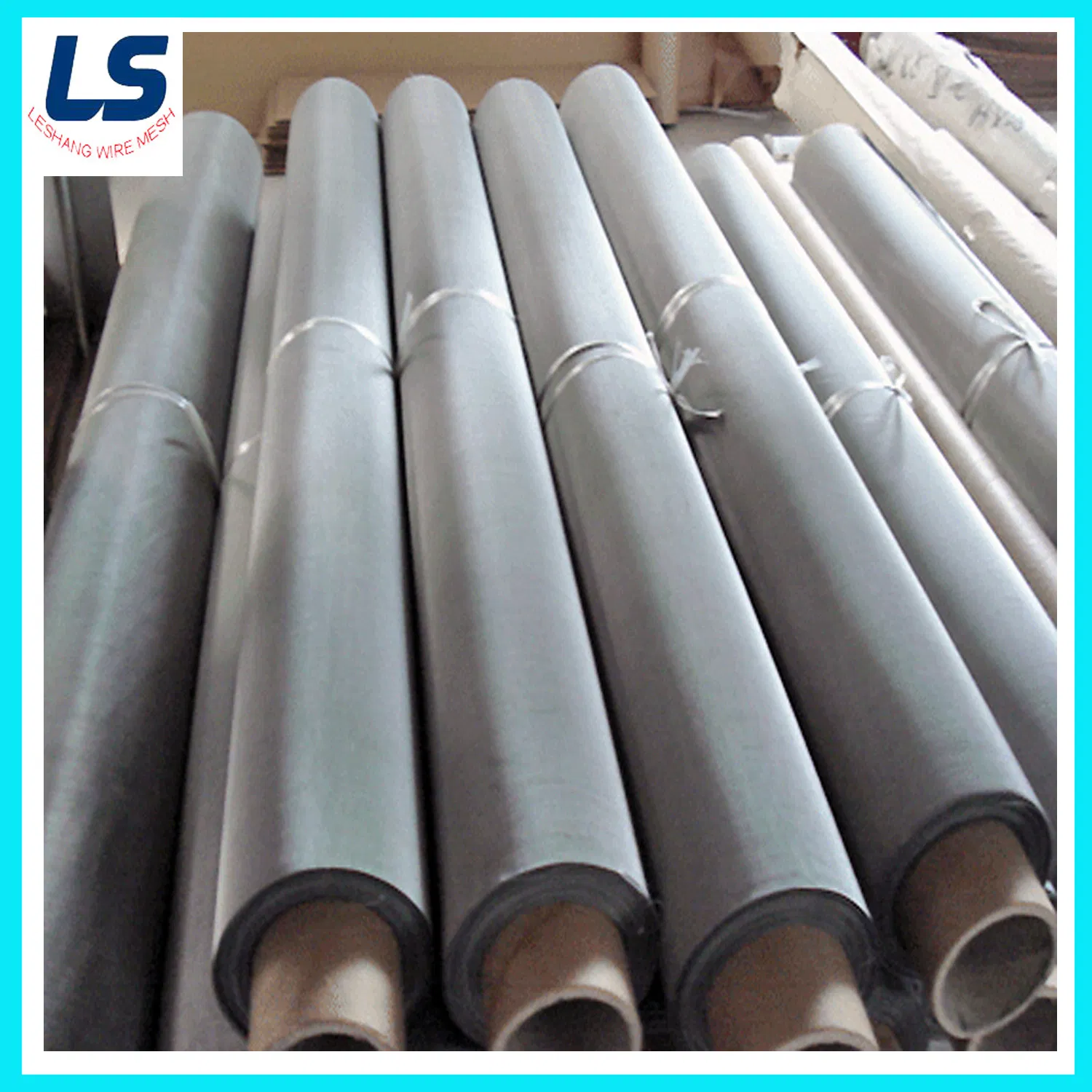

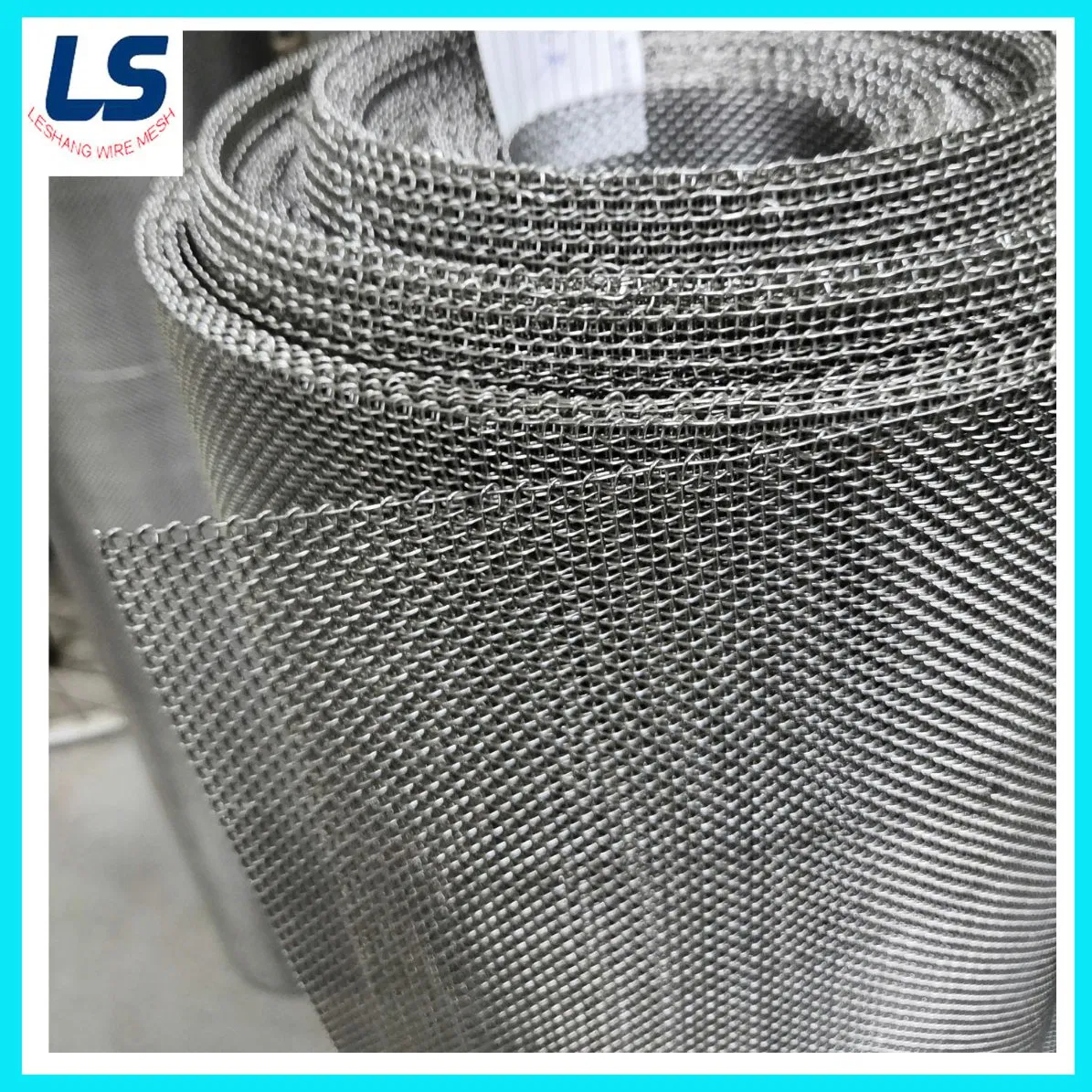

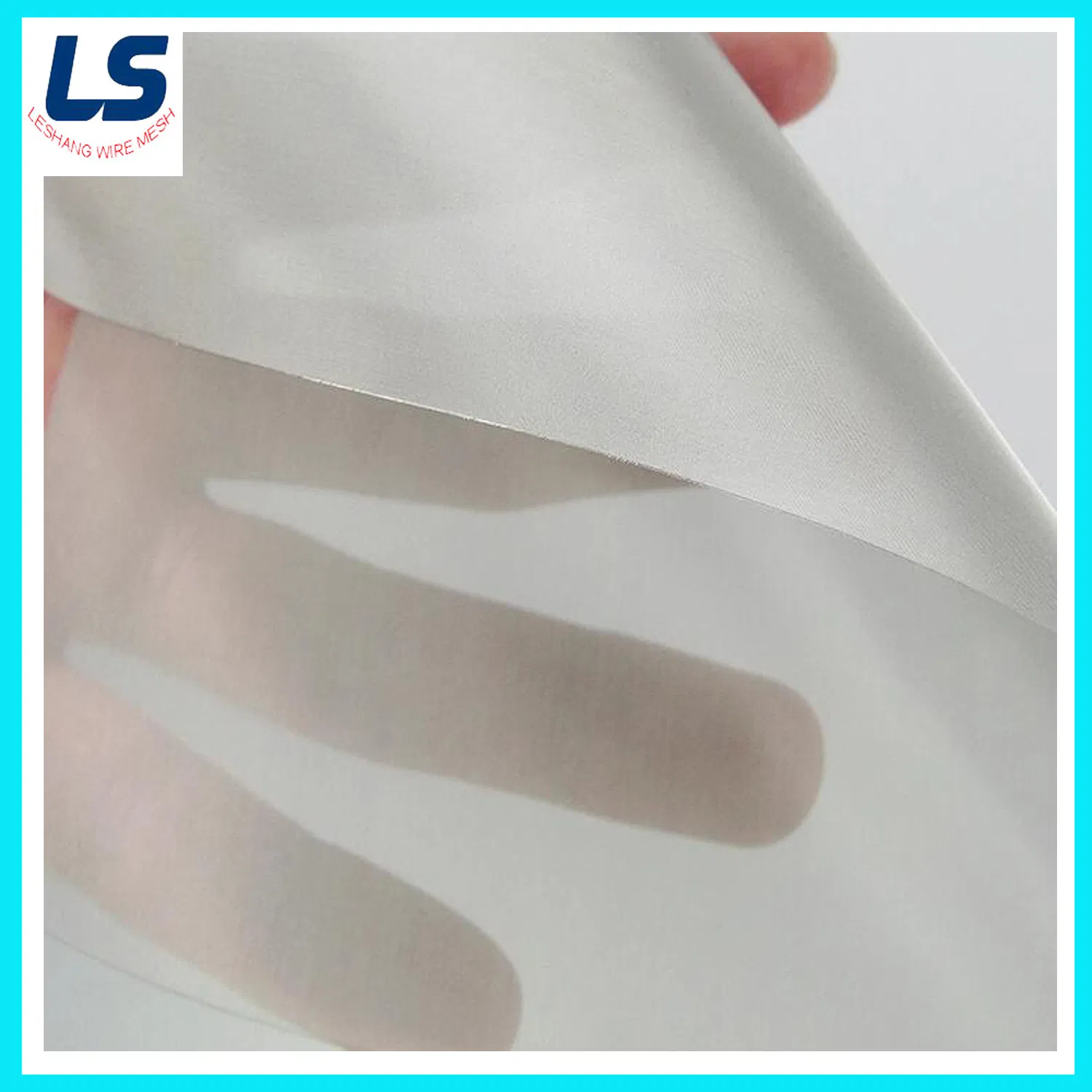

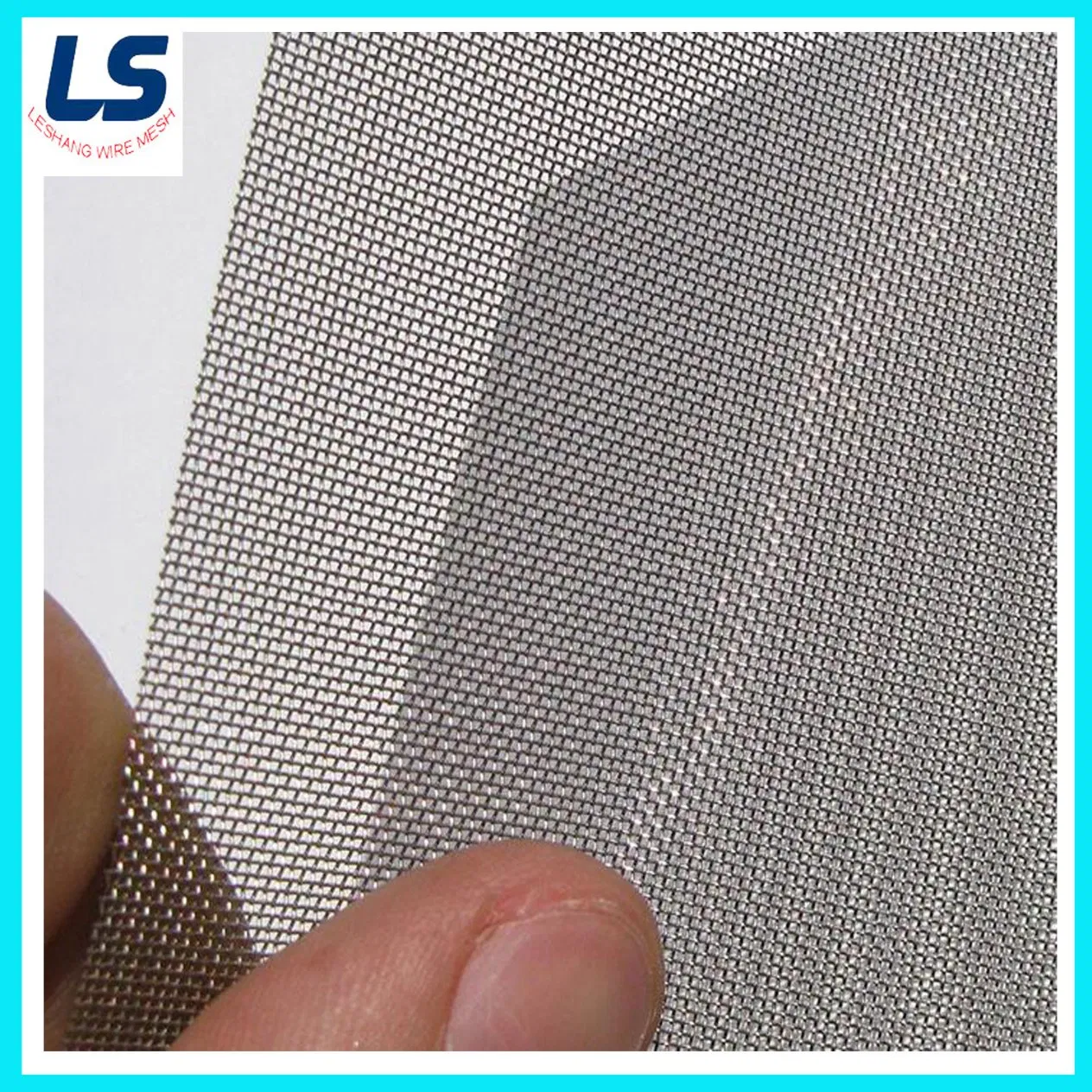

Description of Stainless Steel Wire Mesh
Materials available in SUS302, 304, 316, 304L, 316L. Typical Weaving Patterns include Plain weave, twill weave, and Dutch weave. Standard lengths are 30m (up to 200m) with widths ranging from 1m to 2.0m. Specialized widths from 2.0M to 6.0M are available for paper-making applications.

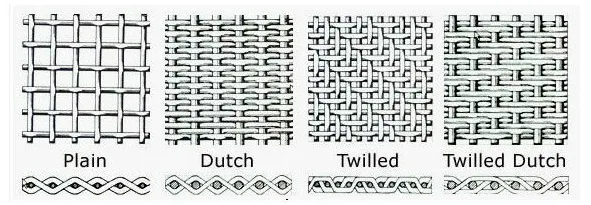

Mesh Weaving Types:

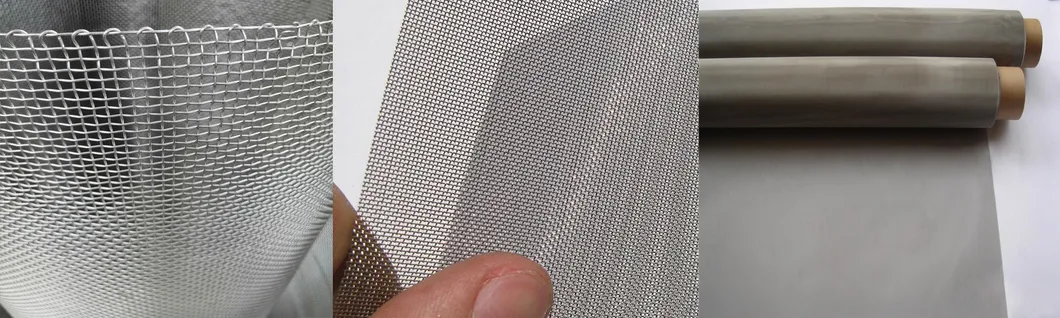

- 🔹 Plain Weave: The most basic weave where warp and weft form a simple criss-cross pattern.

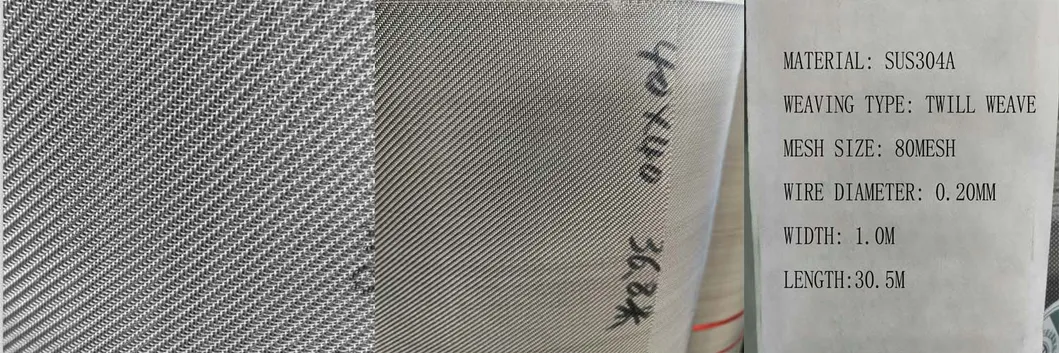

- 🔹 Twill Weave: Each weft yarn floats across warp yarns in a progression to form a diagonal line (wale).

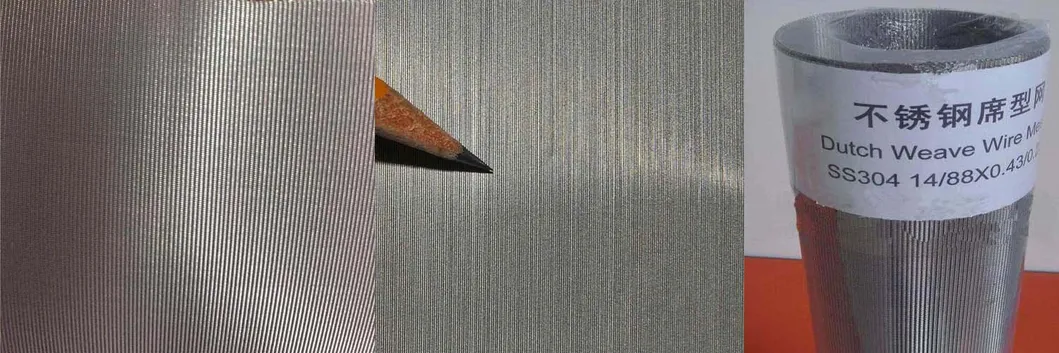

- 🔹 Plain Dutch Weave: Similar to plain weave but with different wire diameters and mesh sizes for warp and weft.
- 🔹 Twill Dutch Weave: Combines twill weaving with varying wire diameters.
- 🔹 Reversed Dutch Weave: Features thicker warp wires and fewer weft wires compared to standard Dutch weave.
📋 Technical Specifications
Plain & Twill Weave Reference Table:
| Meshes Per Inch |
Wire Dia (Inches) |
Wire Dia (mm) |
Opening (Inches) |
Opening (mm) |
Open Area % |
| 10 x 10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
| 10 x 10 | 0.035 | 0.9 | 0.065 | 1.65 | 42.3 |
| 12 x 12 | 0.032 | 0.8 | 0.051 | 1.29 | 37.5 |
| 20 x 20 | 0.016 | 0.40 | 0.034 | 0.86 | 46.2 |
| 100 x 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
| 400 x 400 | 0.0010 | 0.025 | 0.0015 | 0.038 | 36.0 |
Dutch Weaving Reference Table:
| Mesh Size |
Wire Dia (mm) |
Material (AISI) |
| 12 X 64 | 0.58/0.40 | 304, 316 |
| 24 X 110 | 0.36/0.25 | 304, 316 |
| 80 X 700 | 0.06/0.05 | 304, 316 |
| 400 X 2800 | 0.030/0.02 | 316L |
🛠️ Edge Types & Processing

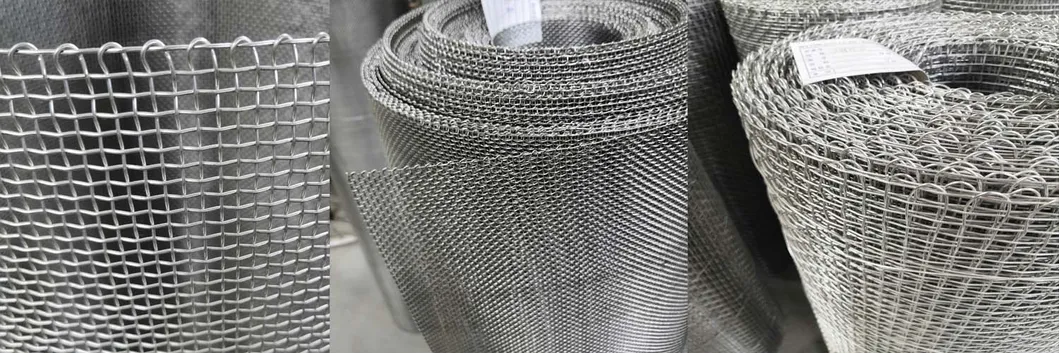

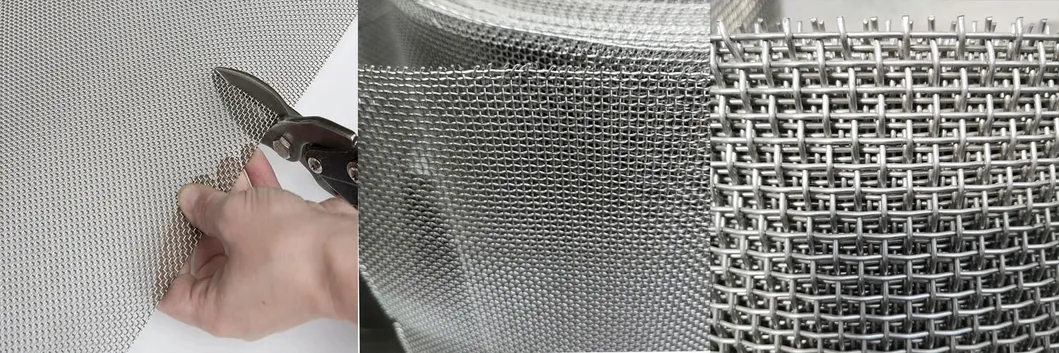

Products are divided into Lock End (usually 3 to 12 mesh) and Open End (available for all sizes).

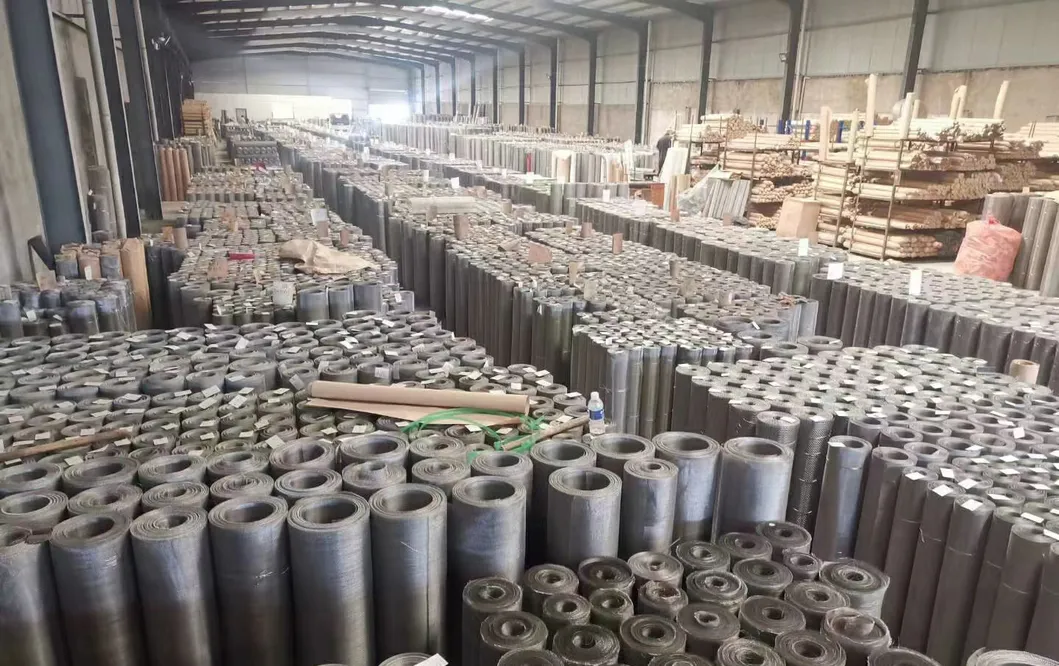

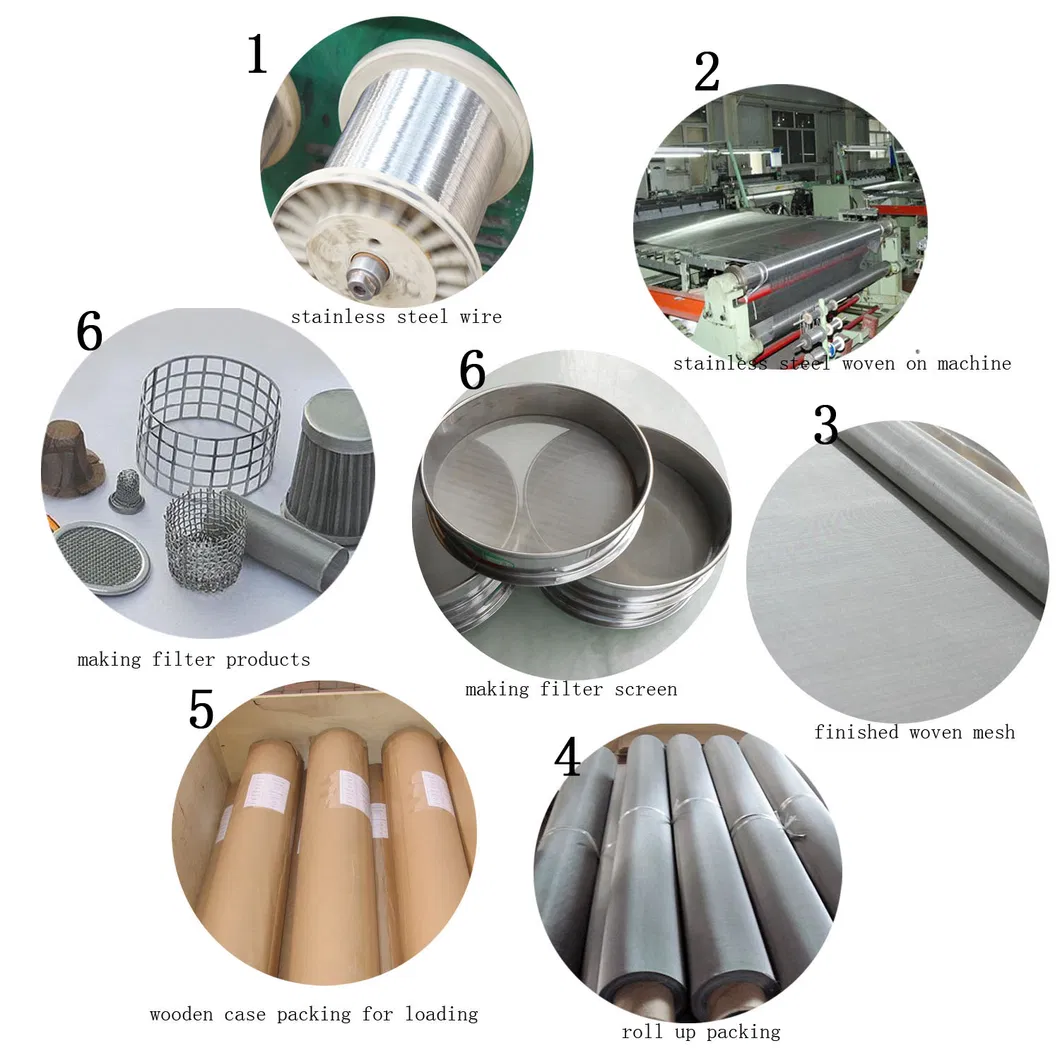

Production & Inventory:
❓ Frequently Asked Questions
What materials are available for the wire mesh?
We primarily use high-quality stainless steel grades including SUS302, 304, 316, 304L, and 316L for superior corrosion resistance.
What is the standard roll size?

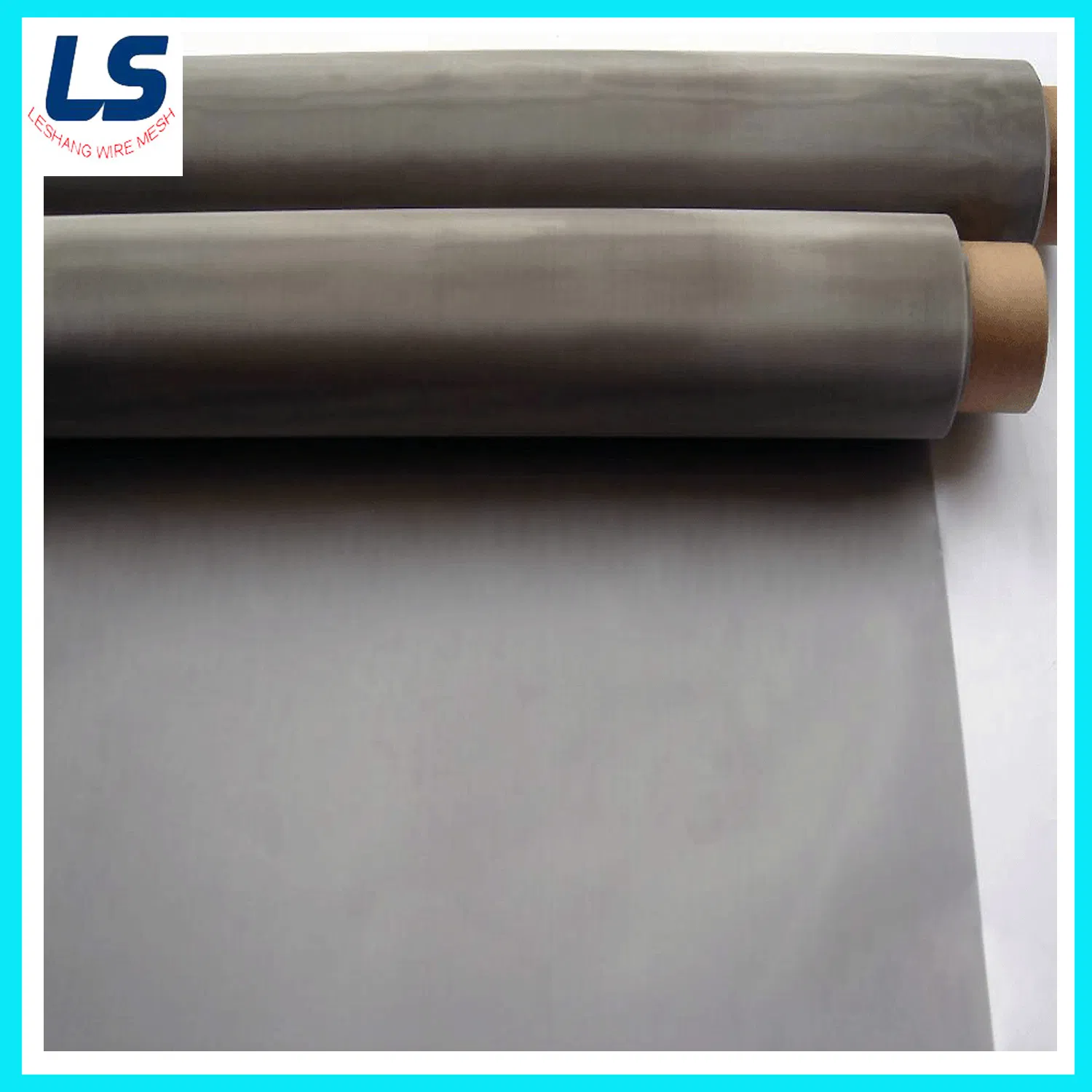

Standard rolls are usually 30 meters long, but we can provide lengths up to 200 meters. Standard widths range from 1m to 2m, with custom widths up to 6m.
Can the mesh be cut into specific shapes?
Yes, we can cut the mesh into strips or punch them into various disc shapes according to your specific requirements.
What is the minimum order quantity (MOQ)?
If we have the item in stock, the minimum quantity is just one roll. For special orders, the MOQ typically ranges from 1 to 10 rolls.

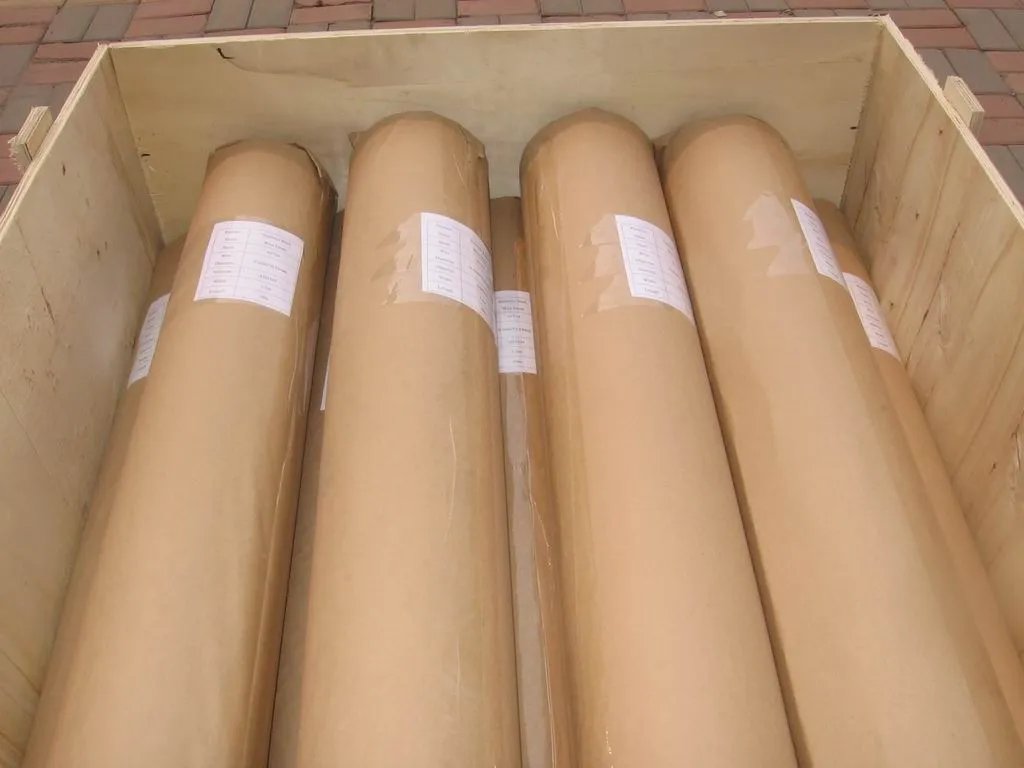

How is the product packaged for shipping?
For small quantities, we ship via express in single rolls. Larger orders are securely packed in wooden cases to prevent damage during transport.
What are the different edge options?
We offer both Lock End and Open End edges. Lock End is typically used for meshes between 3 to 12 mesh, while Open End is available for all sizes.
